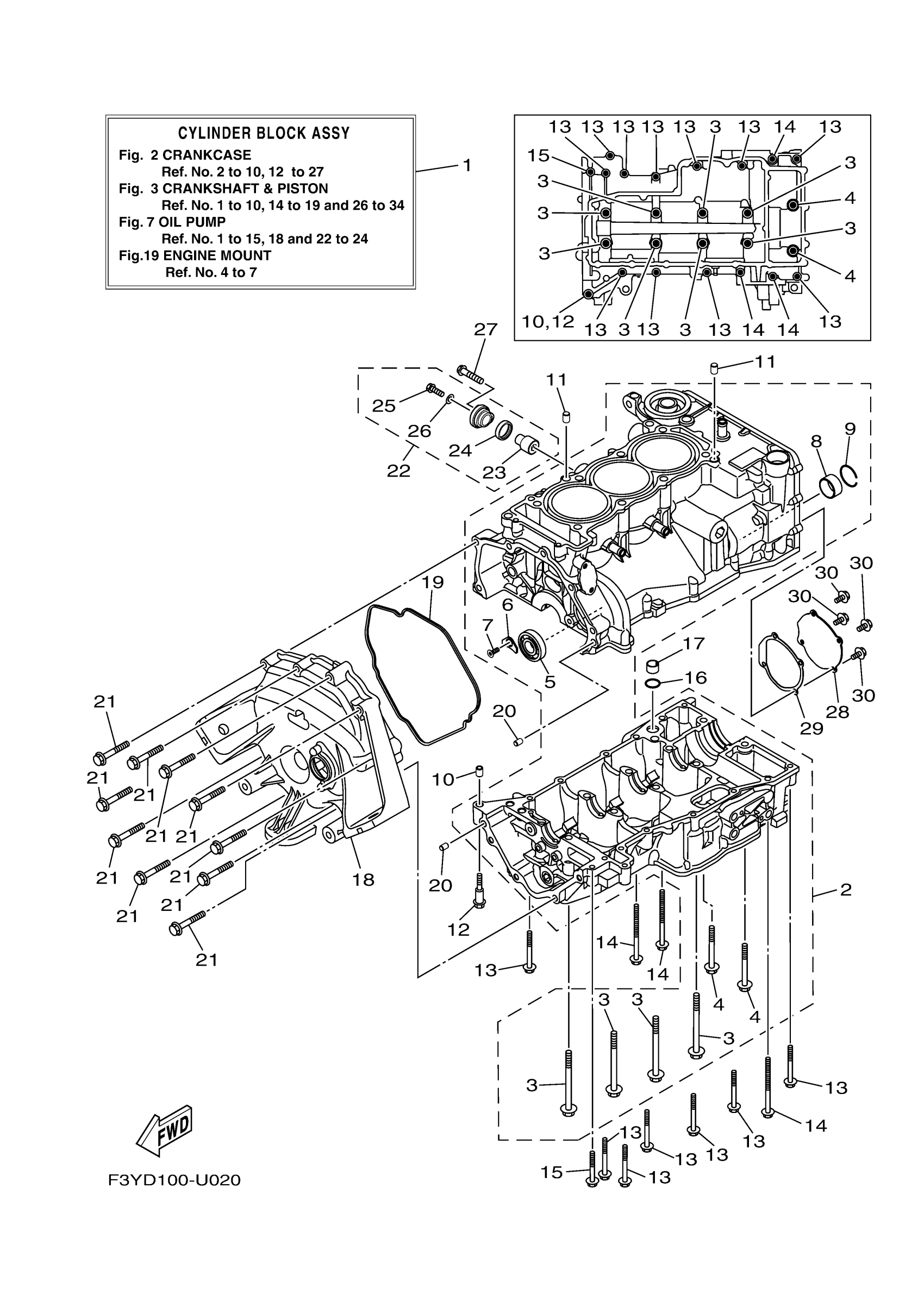

Yamaha EX1050AU (EX DELUXE) F3YD 2019 CRANKCASE Diagram

#

Description
Price

1

CYLINDER BLOCK ASSY

99999-04611-00

Unavailable

2

CRANKCASE ASSY

99999-04612-00

Unavailable

3

BOLT, WITH WASHER

90119-09004-00

$8.56

4

BOLT, FLANGE(JN5)

95817-08070-00

$3.15

5

BEARING

93306-30323-00

$36.30

6

PLATE, BEARING COVER

4JT-15381-01-00

$9.82

7

SCREW, COUNTERSUNK

90151-06023-00

$6.09

8

BEARING 1

8ES-11428-01-00

$38.99

9

CIRCLIP

93450-32152-00

$6.58

10

PIN, DOWEL(3VD)

99530-10114-00

$2.13

11

PIN, DOWEL(3VD)

99530-10114-00

$2.13

12

BOLT

90109-06308-00

$3.18

13

BOLT, FLANGE

95814-06055-00

$2.63

14

BOLT, FLANGE

95814-06085-00

$2.73

15

BOLT, FLANGE(4EB)

95814-06045-00

$2.45

16

. O-RING

93210-17010-00

$0.91

17

PIPE

8ES-13284-00-00

Unavailable

18

COVER, CRANKCASE 2

6EY-15421-00-00

$166.65

19

. GASKET, CRANKCASE COVER 2

6EY-15461-00-00

$19.68

20

PIN, DOWEL

99590-08012-00

Unavailable

21

BOLT, WITH WASHER

97513-08555-00

$1.82

22

ANODE COVER ASSY

69J-11301-11-00

Unavailable

23

. ANODE

68V-11325-02-00

$16.45

24

GROMMET, ANODE

67F-11328-01-00

$3.50

25

BOLT (689)

90105-06M07-00

Unavailable

26

. GASKET

90430-06M03-00

$2.80

27

BOLT, HEXAGON W/W DEEP RECESS

97E95-08540-00

$1.86

28

PLATE AND GASKET, 2

99999-04357-00

Unavailable

29

. GASKET, 2

6EY-15463-01-00

$5.91

30

BOLT, FLANGE(2UJ)

95024-06012-00

Unavailable
