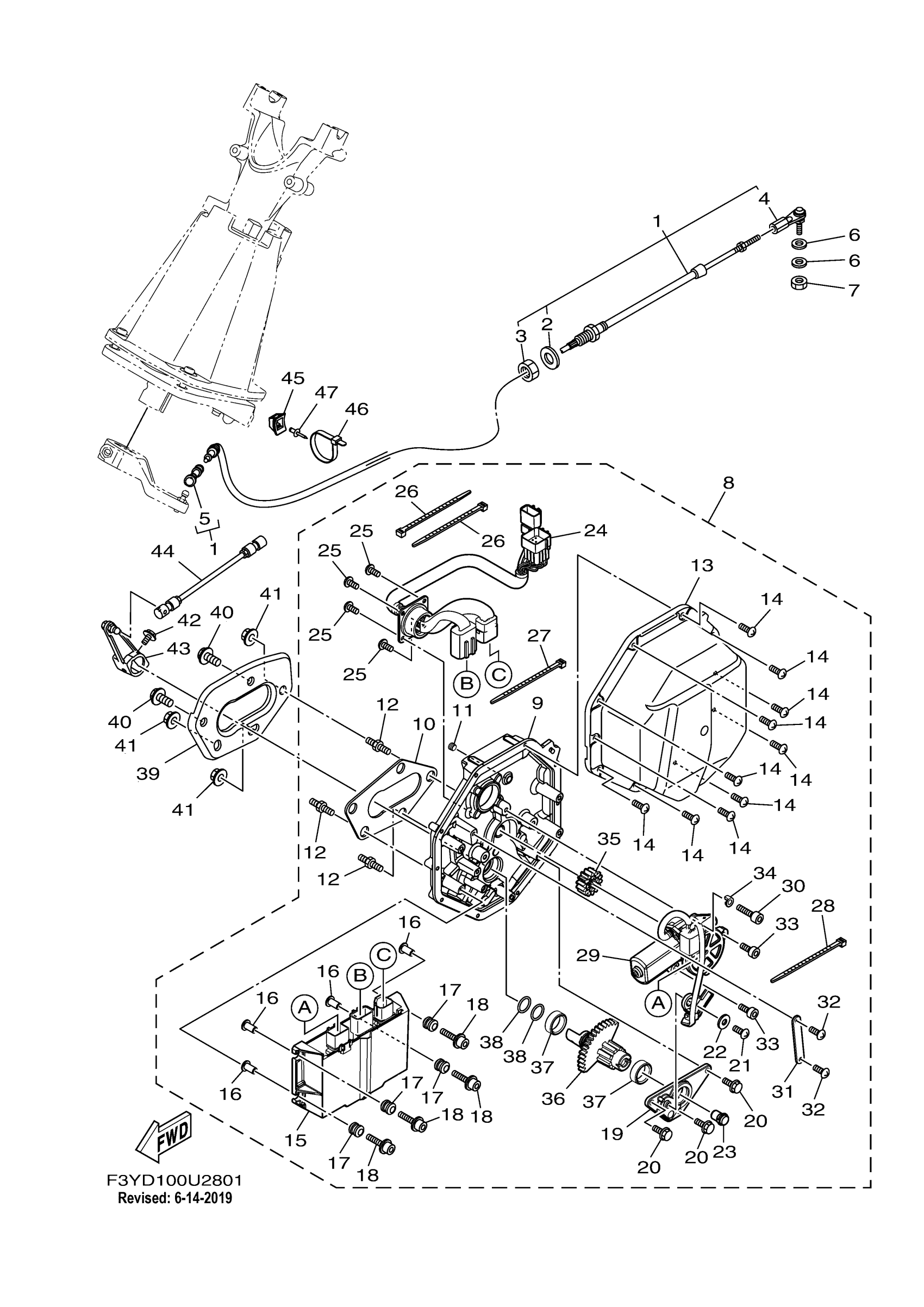

Yamaha EX1050AU (EX DELUXE) F3YD 2019 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F3Y-61481-04-00

$252.22

2

. PACKING C

F1B-61438-00-00

$2.47

3

NUT

F1B-6151S-01-00

$13.63

4

. STUD, JOINT BALL

F1B-61461-02-00

$90.48

5

. BALL JOINT ASSY

F2N-61460-00-00

$47.75

6

WASHER, PLATE

90201-06906-00

$2.80

7

NUT

9538R-06700-00

$1.07

8

MOTOR ASSY.

F3Y-6140B-04-00

Unavailable

9

HOUSING

99999-04522-00

Unavailable

10

. SEAL

F3Y-63262-00-00

$16.99

11

. PLUG

F3J-613D0-00-00

$11.93

12

. BOLT, STUD

F3J-67369-00-00

$6.27

13

. COVER

F3Y-6143J-00-00

$52.22

14

. SCREW

F3Y-68198-00-00

$3.58

15

CONTROL UNIT

F3Y-68197-02-00

$626.85

16

. COLLAR

90387-06119-00

$4.60

17

DAMPER, IGNITION C

6A0-82317-01-00

$6.68

18

. BOLT

F3J-613B4-20-00

$4.48

19

. PLATE

F3Y-61256-00-00

$30.99

20

. BOLT, HEXAGON

F3Y-613B3-00-00

$4.48

21

. SCREW

F3J-68198-20-00

$3.58

22

. WASHER, PLAIN

F3J-613C3-10-00

$3.79

23

. MAGNET, SENSOR

F3J-60428-00-00

$19.37

24

. WIRE HARNESS ASSY

F3Y-68270-01-00

$332.82

25

. SCREW

F3J-68198-00-00

$3.03

26

. CLAMP, WIRE

F3J-68273-00-00

$3.13

27

. CLAMP, WIRE

F3J-68273-00-00

$3.13

28

. CLAMP, WIRE

F3J-68273-00-00

$3.13

29

. MOTOR

F3Y-68352-00-00

$196.45

30

. BOLT

F3J-613B4-00-00

$4.48

31

. PLATE

F3Y-61348-00-00

$4.48

32

. SCREW

F3J-68198-20-00

$3.58

33

. BOLT

F3J-613B4-10-00

$2.19

34

. SPACER

F3J-61492-00-00

$7.16

35

. ,GEAR 1

F3Y-60211-00-00

$99.99

36

SHAFT, 1

F3Y-60221-10-00

$22.97

37

. BUSH

F3Y-61344-00-00

$3.79

38

O-RING

F4P-613A5-00-00

$3.43

39

PLATE

F3Y-U8285-00-00

$14.91

40

BOLT, WITH WASHER

90119-08852-00

$4.01

41

NUT, LOCK

F3Y-U142L-00-00

$2.66

42

BOLT, WITH WASHER

90119-06894-00

$1.43

43

SHIFT ARM ASSY

F3Y-6150F-00-00

$64.16

44

ROD ASSY 2

F3Y-6150D-00-00

$59.69

45

BASE, CLAMP

F1W-U828M-00-00

$1.29

46

CLAMP

90464-32801-00

$1.29

47

RIVET, BLIND

90267-489U6-00

Unavailable
