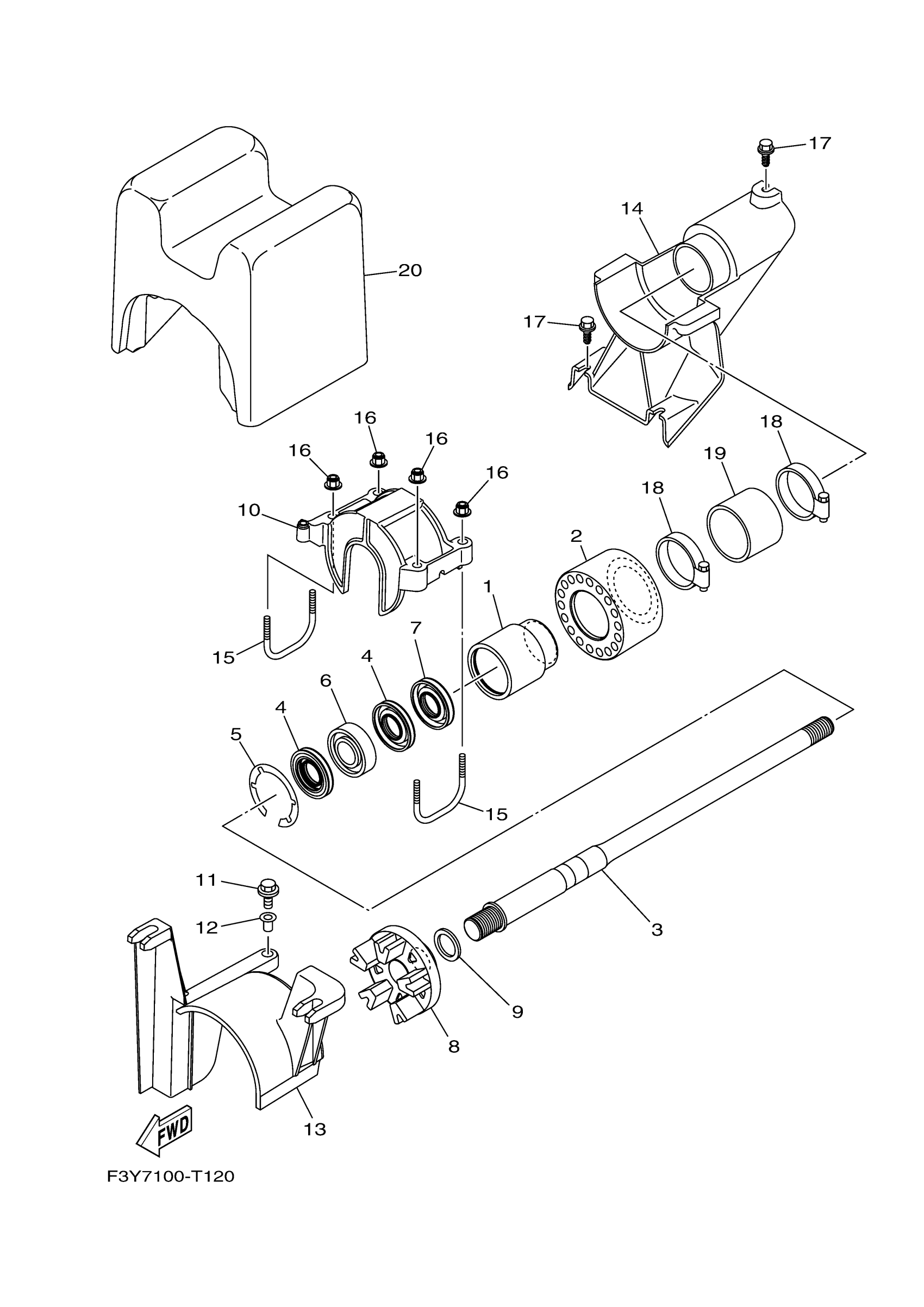

Yamaha EX1050AT (EX DELUXE) F3Y7 2018 JET UNIT 2 Diagram

#

Description
Price

1

HOUSING, BEARING

6GA-G5332-00-00

Unavailable

2

DAMPER

6GA-G5235-00-00

Unavailable

3

SHAFT, DRIVE

6GA-G5511-00-00

$265.99

4

OIL SEAL(62T)

93101-25M55-00

$30.99

5

CIRCLIP(26H)

99009-52500-00

$12.49

6

BEARING

93306-205XG-00

Unavailable

7

OIL SEAL

93101-24001-00

$31.99

8

FLANGE, COUPLING 1

6GA-G5593-00-00

Unavailable

9

WASHER, PLATE

90201-24800-00

Unavailable

10

CAP

F3Y-U2155-01-00

Unavailable

11

BOLT, WITH WASHER

90119-06892-00

Unavailable

12

COLLAR

90387-06289-00

$3.18

13

COVER

6GA-R1381-00-00

Unavailable

14

JOINT, PIPE

F3Y-U883E-01-00

$35.99

15

NUT,INSERT

F3Y-U3746-01-00

$3.99

16

NUT, LOCK

F2N-U142L-00-00

Unavailable

17

BOLT

90109-06832-00

Unavailable

18

BAND, HOSE 55

90601-155U4-00

Unavailable

19

PIPE 1

F3Y-U883B-00-00

Unavailable

20

FLOTATION, STERN RH

F3Y-U892D-01-00

Unavailable
