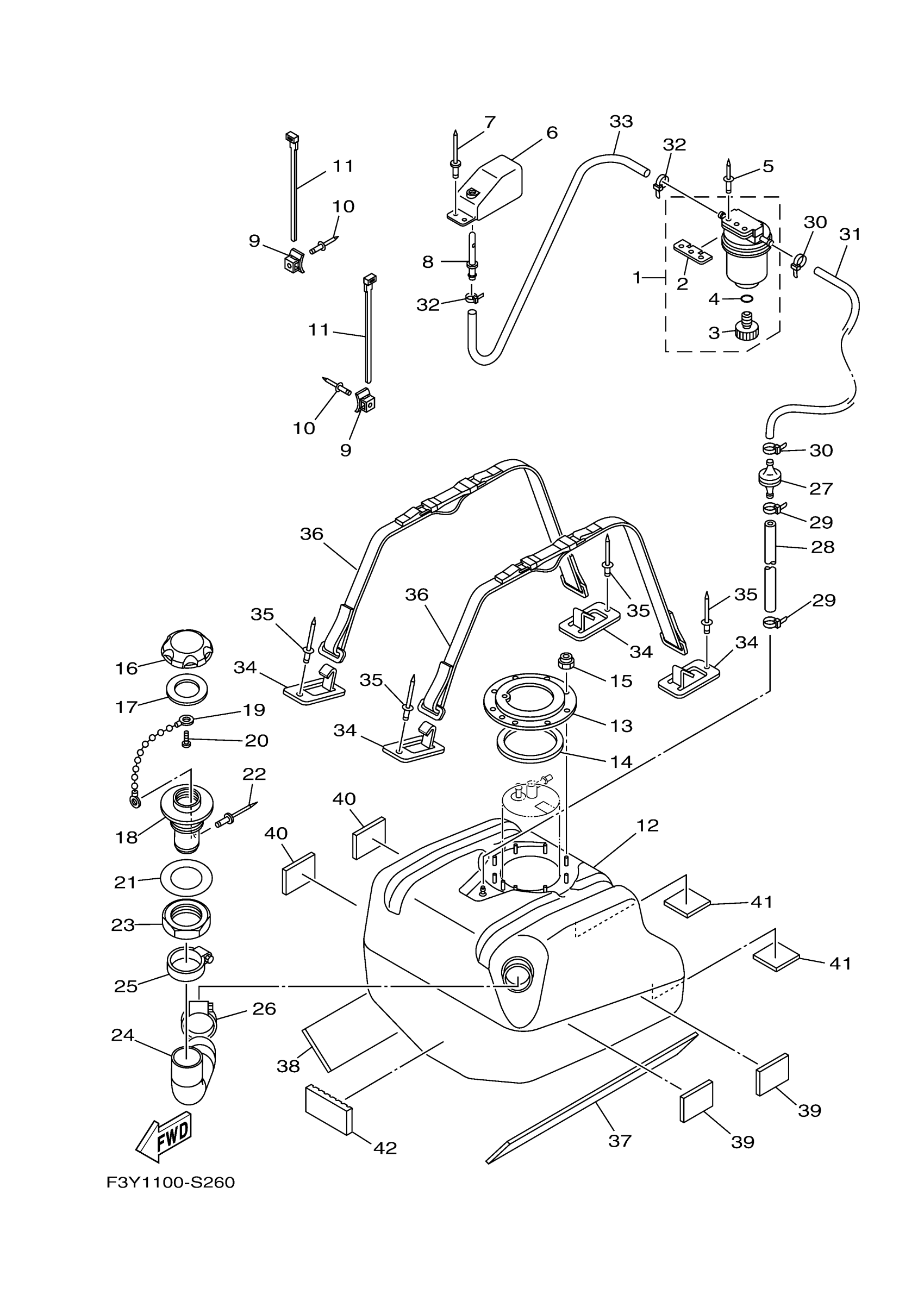

Yamaha EX1050AT (EX DELUXE) F3Y7 2018 FUEL TANK Diagram

#

Description
Price

1

FILTER, VENT ASSY

F2F-6214A-00-00

$52.14

2

. PLATE, FILTER

EW2-62142-00-00

$44.76

3

. PLUG, DRAIN

70R-24543-00-00

$8.94

4

. O-RING

70R-24489-00-00

$4.93

5

RIVET, BLIND

90267-489U2-00

$1.51

6

SOCKET, VENTILATION

GP7-62159-02-00

$18.49

7

RIVET, BLIND

90267-489U6-00

Unavailable

8

PIPE, VENTILATION

F1G-62149-00-00

$11.18

9

BASE, CLAMP

F1W-U828M-00-00

$1.29

10

RIVET, BLIND

90267-489U6-00

Unavailable

11

CLAMP

90464-32801-00

$1.29

12

TANK, FUEL

F3Y-U7711-02-00

$255.81

13

RING

F1B-U7773-00-00

$22.25

14

PACKING, SEAL

F1B-67747-00-00

$17.09

15

NUT, NYLON

9572R-06300-00

$2.93

16

CAP, FUEL FILLER

F2N-U7831-10-00

$22.25

17

PACKING

GP7-U7832-01-00

$5.62

18

SOCKET

GP7-U7833-11-00

$11.48

19

CHAIN BALL

GP7-U7835-00-00

$4.72

20

SCREW, TRUSS HEAD TAPPING

90169-049U1-00

$1.29

21

PACKING FUEL FILLER

GP7-U7834-00-00

$12.34

22

RIVET, BLIND

90267-329UR-00

$1.23

23

NUT, FUEL FILLER

GP7-U783F-00-00

$4.96

24

HOSE

F3Y-U7844-00-00

$24.61

25

BAND, HOSE 55

90601-155U4-00

$6.17

26

BAND, HOSE 55

90601-155U4-00

$6.17

27

CHECK VALVE

EU0-67767-31-00

$30.97

28

HOSE, AIR VENT 3

GP7-U785H-00-00

$8.19

29

CLAMP

90465-10098-00

$2.24

30

CLAMP

90465-10098-00

$2.24

31

HOSE, AIR VENT 3

F3Y-U7856-00-00

$3.73

32

CLAMP

90465-10098-00

$2.24

33

HOSE, AIR VENT

GP7-U785G-10-00

$8.19

34

HOOK A

F1K-U5772-04-00

$6.19

35

RIVET (EU0)

90267-48938-00

$4.72

36

BELT, TANK 1

F3Y-67743-01-00

$29.84

37

MAT 1

F2S-U759B-00-00

$3.81

38

MAT 1

F2S-U759B-00-00

$3.81

39

MAT 2

F1W-U759C-01-00

$2.46

40

MAT 2

F1W-U759C-01-00

$2.46

41

MAT 2

F1K-U759C-00-00

$1.80

42

PAD, BATTERY

F1S-U8221-00-00

$2.88
