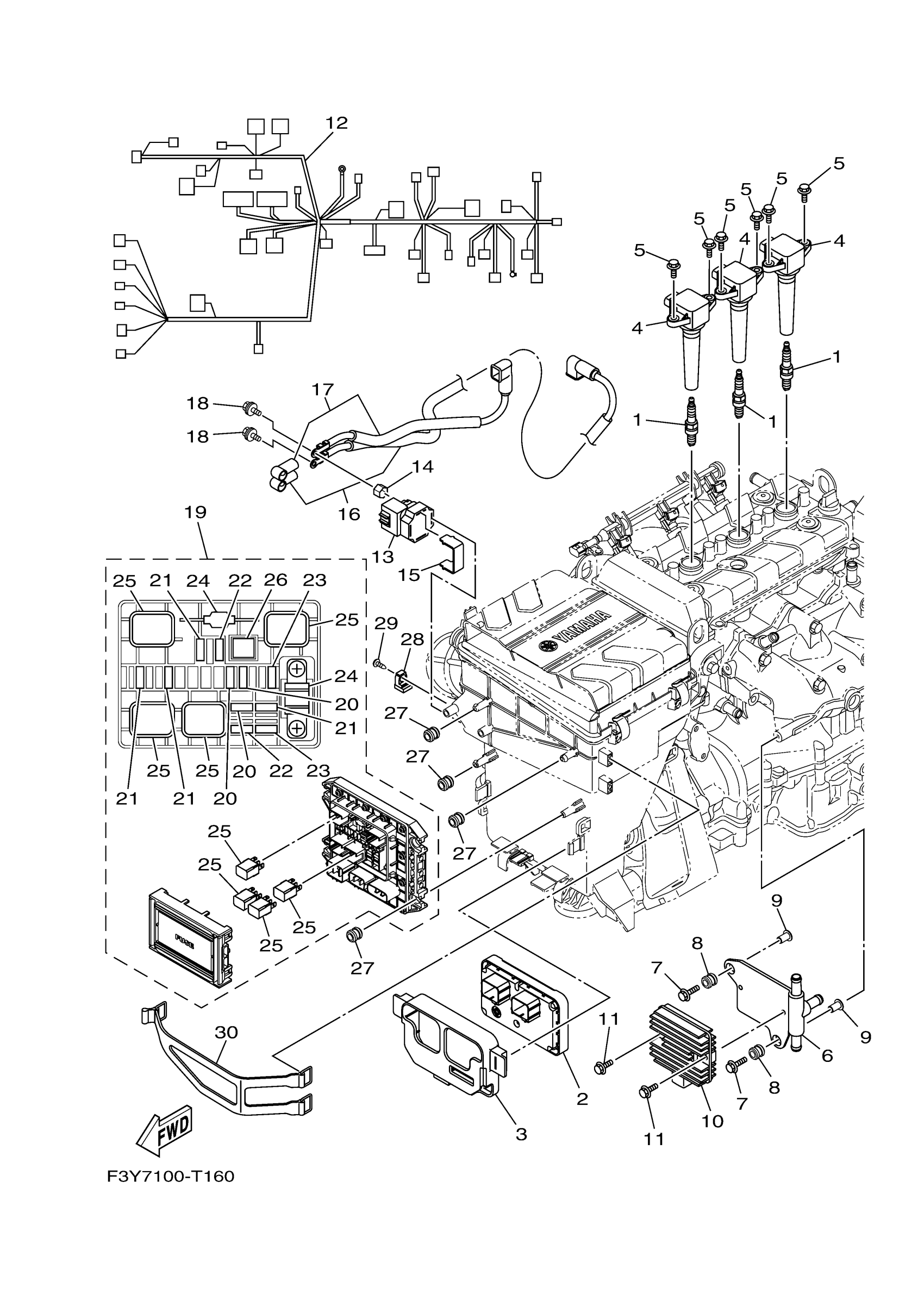

Yamaha EX1050AT (EX DELUXE) F3Y7 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

Unavailable

2

ENGINE CONTROL UNIT ASSY

6GA-8591A-00-00

$1,329.40

3

GROMMET, ECU

6EY-8591S-00-00

$18.99

4

IGNITION COIL ASSY

6EX-82310-02-00

$177.83

5

BOLT, FLANGE(JL8)

95880-06016-00

$3.57

6

PLATE, RECTIFIER FITTING

6EY-81975-00-00

$55.87

7

BOLT, WITH WASHER

90119-06311-00

$1.61

8

DAMPER, IGNITION C

6A0-82317-01-00

$6.05

9

. COLLAR

90387-06119-00

$3.96

10

RECTIFIER & REGULA

6D3-81960-01-00

$145.47

11

BOLT, FLANGE

95814-06020-00

$6.22

12

WIRE HARNESS ASSY 1

6GA-8259L-00-00

$717.63

13

STARTER RELAY ASSY

6EY-81940-09-00

$61.55

14

. GROMMET

6EY-82355-00-00

$2.65

15

STAY, RELAY

6EY-81953-00-00

$3.97

16

WIRE, PLUS LEAD

6GA-82115-01-00

$114.69

17

WIRE, LEAD

6EY-82117-00-00

$34.19

18

BOLT, HEXAGON W/W DEEP RECESS

97E95-06612-00

$1.27

19

FUSE BOX ASSY

6EX-82170-02-00

$195.31

20

. FUSE (3A)

67F-82151-30-00

$4.69

21

. FUSE (10A)

67F-82151-40-00

$6.40

22

FUSE

5JJ-82151-20-00

Unavailable

23

FUSE

5JJ-82151-60-00

Unavailable

24

. FUSE (50A)

6EX-82151-00-00

$3.03

25

. RELAY ASSY

6EX-8195A-00-00

$15.95

26

. PULLER, FUSE

6EX-2812A-00-00

$1.32

27

DAMPER, IGNITION C

6A0-82317-01-00

$6.05

28

BRACKET

6AA-85542-00-00

$2.21

29

SCREW, ROUND TAPPING

90160-05003-00

$5.31

30

BAND

6EY-82593-01-00

$23.51
