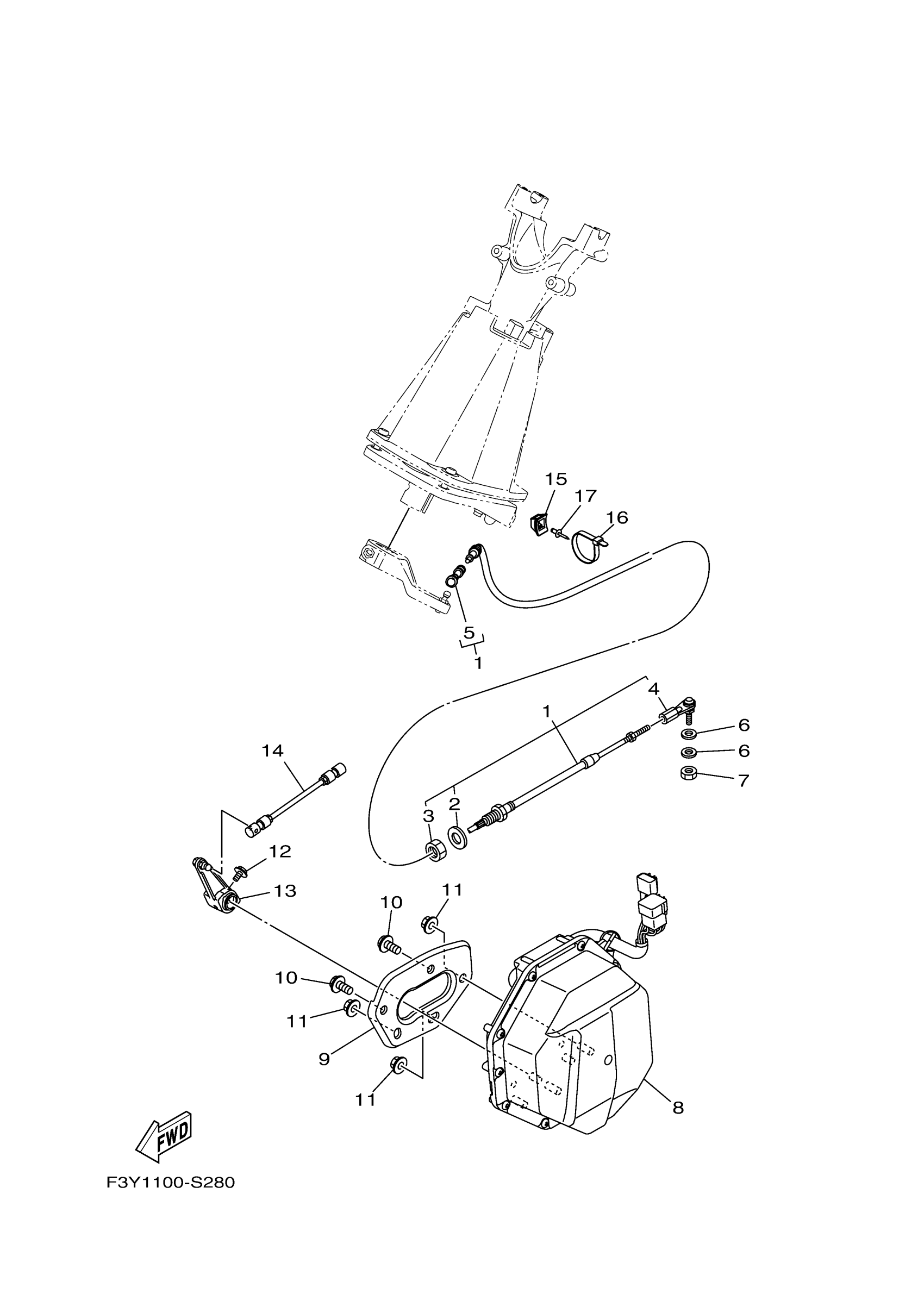

Yamaha EX1050AT (EX DELUXE) F3Y7 2018 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, STEERING

F3Y-61481-04-00

Unavailable

2

. PACKING C

F1B-61438-00-00

Unavailable

3

NUT

F1B-6151S-01-00

Unavailable

4

. STUD, JOINT BALL

F3Y-61461-00-00

Unavailable

5

. BALL JOINT ASSY

F3Y-61460-00-00

Unavailable

6

WASHER, PLATE

90201-06906-00

Unavailable

7

NUT

9538R-06700-00

Unavailable

8

MOTOR ASSY.

F3Y-6140B-04-00

Unavailable

9

PLATE

F3Y-U8285-00-00

Unavailable

10

BOLT, WITH WASHER

90119-08852-00

Unavailable

11

NUT, LOCK

F3Y-U142L-00-00

Unavailable

12

BOLT, WITH WASHER

90119-06894-00

Unavailable

13

SHIFT ARM ASSY

F3Y-6150F-00-00

Unavailable

14

ROD ASSY 2

F3Y-6150D-00-00

Unavailable

15

BASE, CLAMP

F1W-U828M-00-00

Unavailable

16

CLAMP

90464-32801-00

Unavailable

17

RIVET, BLIND

90267-489U6-00

Unavailable
