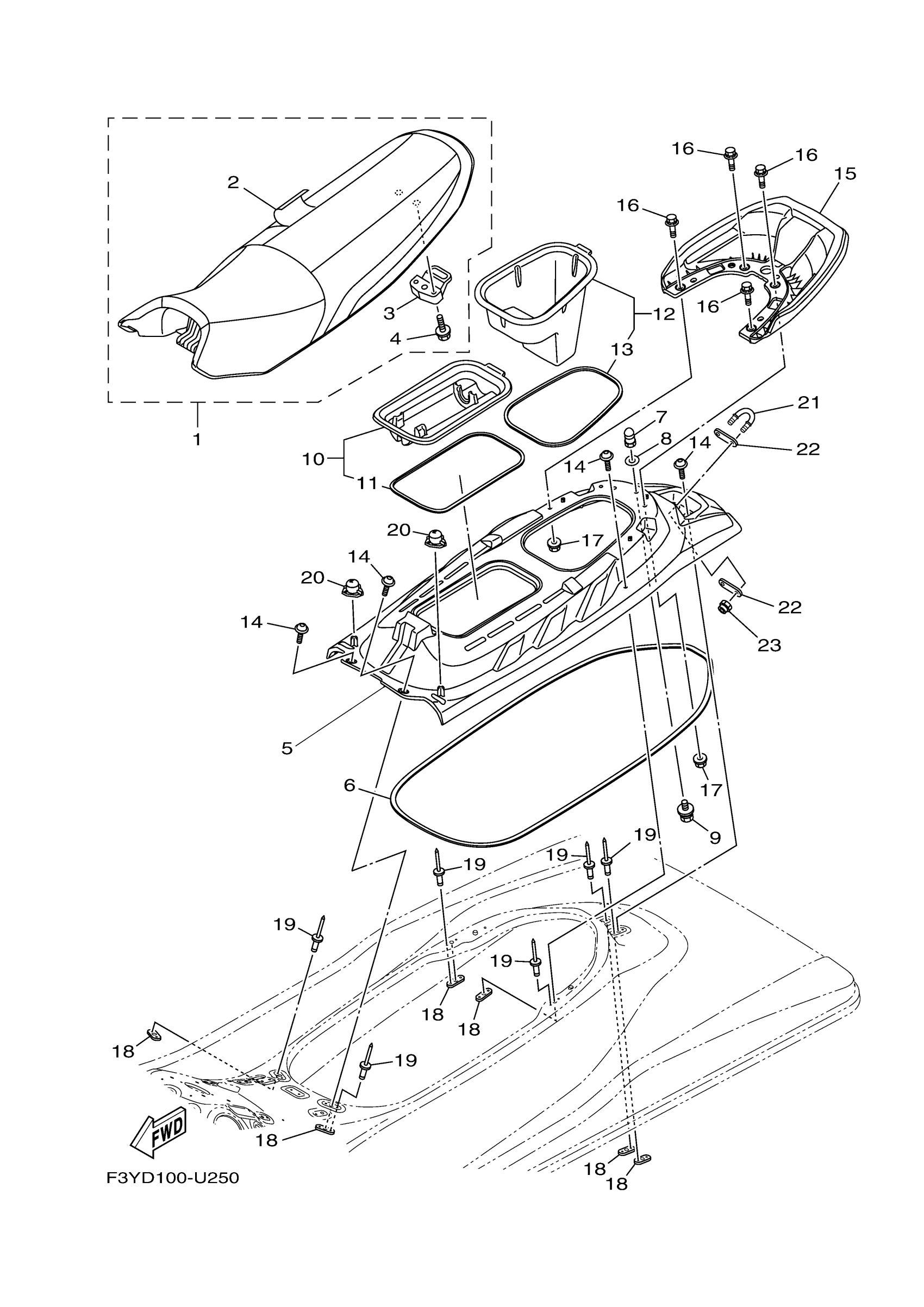

Yamaha EX1050AS (EX DELUXE) F3Y1 2017 SEAT & UNDER LOCKER Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

F3Y-U371A-11-00

$856.79

1

DOUBLE SEAT ASSY

F3Y-U371A-21-00

$856.79

2

. COVER, SEAT 1

F3Y-U371B-10-00

$315.50

2

. COVER, SEAT 1

F3Y-U371B-20-00

$379.09

3

SEAT LOCK ASSY

F1B-U3850-02-00

$10.04

4

BOLT, WITH WASHER

90119-06808-00

$2.16

5

BASE, SEAT 2

F3Y-U3743-01-00

$208.94

6

PACKING 3

F3Y-U266B-01-00

$37.30

7

PIN

F1K-U3774-00-00

$15.79

8

WASHER, PLATE

90201-109U6-00

$3.43

9

BOLT,WITH WASHER

90119-10815-00

$4.31

10

CASE ASSY 2

F3Y-U592A-10-00

$27.60

11

PACKING 5

F3Y-U266D-10-00

$13.42

12

CASE,ASSY 1

F3Y-U591A-10-00

$26.10

13

. PACKING,6

F3Y-U266E-00-00

$6.27

14

BOLT, SPECIAL

F3Y-U491K-02-00

$2.66

15

GRIP, HAND

F3Y-U271B-00-00

$107.45

16

BOLT, WITH WASHER

90119-08829-00

$4.09

17

NUT, LOCK

F3Y-U142L-00-00

$2.66

18

BRACKET

F2C-U826C-00-00

$4.01

19

RIVET (EU0)

90267-48938-00

$4.72

20

GROMMET

F3Y-U1338-00-00

$2.93

21

STERN EYE

F2N-U1628-02-00

$5.17

22

PLATE A

GP7-U4953-10-00

$3.65

23

NUT, NYLON (6J8)

95780-08300-00

$11.48
