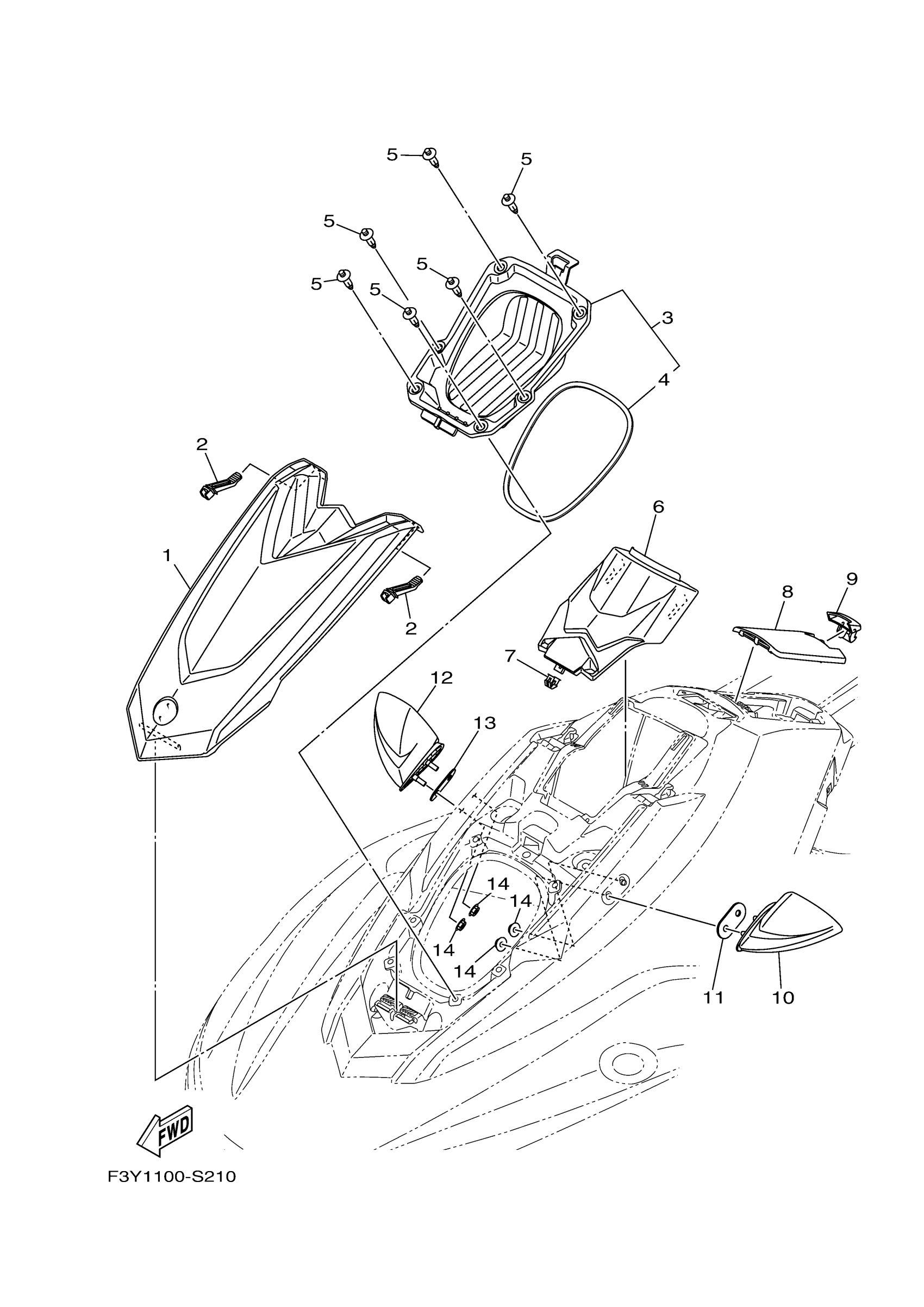

Yamaha EX1050AS (EX DELUXE) F3Y1 2017 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID, ENGINE ROOM (VPBM6)

F3Y-U517B-00-P0

$110.59

1

LID, ENGINE ROOM (RM9)

F3Y-U517B-00-P2

$110.59

2

LOCK 1

F3Y-U264L-00-00

$5.53

3

BOWLOCKER ASSY

F3Y-U475A-00-00

$20.74

4

. PACKING 1

F3Y-U2663-00-00

$6.97

5

RIVET

90269-08801-00

$0.83

6

COVER, FRONT

F3Y-U513M-00-00

$10.75

7

CLIP

F3Y-U153K-00-00

$1.29

8

LID HATCH

F3Y-U517H-00-00

$5.84

9

LOCK

F3Y-U2875-00-00

$3.37

10

MIRROR LH

F3Y-U596B-10-00

$28.70

11

PLATE A

F3Y-U4953-00-00

$2.52

12

MIRROR RH

F3Y-U596C-10-00

$28.70

13

PLATE A

F3Y-U4953-00-00

$2.52

14

NUT, NYLON (6J8)

95780-08300-00

$10.55
