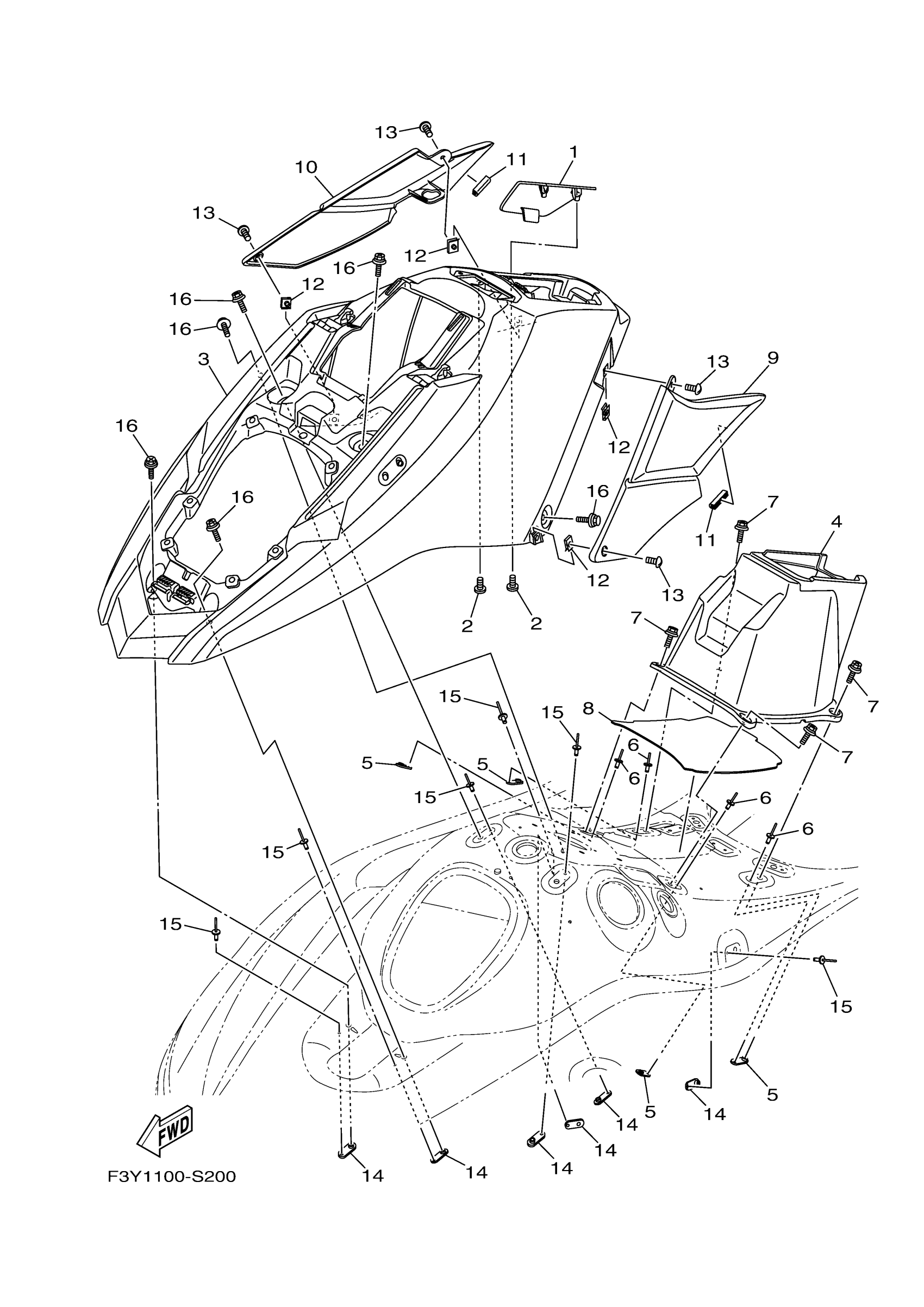

Yamaha EX1050AS (EX DELUXE) F3Y1 2017 ENGINE HATCH 1 Diagram

#

Description
Price

1

SEAL

F3Y-U2723-00-00

$5.45

2

SCREW

F2S-U13C1-00-00

$2.36

3

COVER, ENGINE HATCH

F3Y-U516N-00-00

$133.32

4

BOX GLOVE

F3Y-U516P-00-00

$19.68

5

PLATE, FIX

F2X-U5175-00-00

$1.80

6

RIVET (EU0)

90267-48938-00

$5.00

7

BOLT, WITH WASHER

90119-06878-00

$3.43

8

MAT 1

F3Y-U759B-00-00

$14.38

9

PAD, KNEE

F3Y-U353B-00-00

$16.65

9

PAD, KNEE

F3Y-U353B-20-00

$16.65

10

PAD, KNEE

F3Y-U353B-10-00

$16.65

10

PAD, KNEE

F3Y-U353B-30-00

$16.65

11

TRIM, 1

F3Y-U828H-00-00

$5.45

11

TRIM, 1

F3Y-U828H-10-00

$5.23

12

NUT, SPRING(GJ3)

90183-06902-00

$8.53

13

SCREW

F2S-U7823-01-00

$2.35

14

PLATE, FIX

F2X-U5175-00-00

$1.80

15

RIVET (EU0)

90267-48938-00

$5.00

16

BOLT, WITH WASHER

90119-06820-00

$3.52
