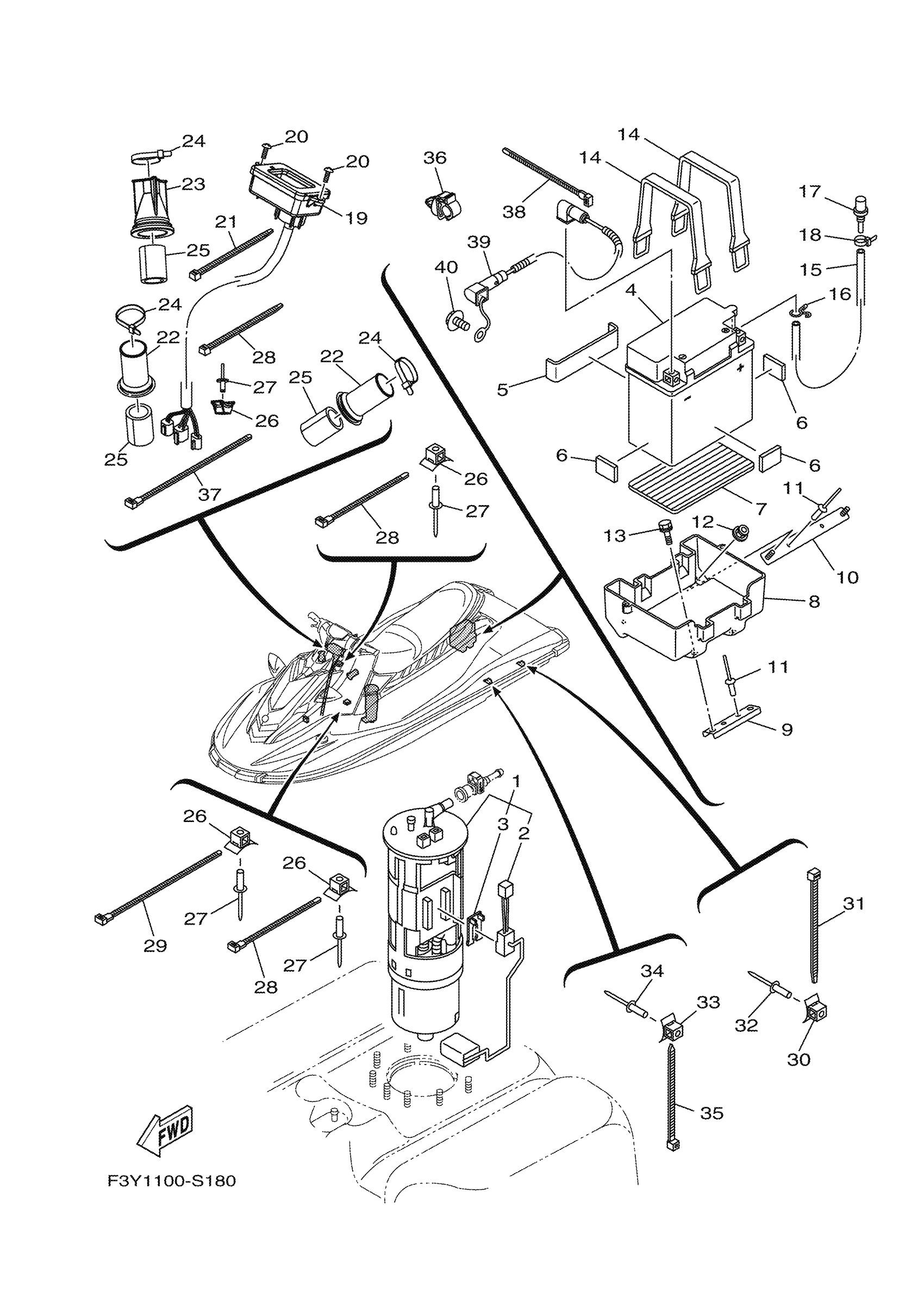

Yamaha EX1050AS (EX DELUXE) F3Y1 2017 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

6S5-13907-05-00

Unavailable

2

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

3

DAMPER, STOPPER

60E-82556-10-00

Unavailable

4

YB16CLB YUASA BATTERY

YB1-6CLB0-00-00

Unavailable

5

PAD, BATTERY

F1K-U8221-00-00

Unavailable

6

PAD, BATTERY

EU0-U8221-31-00

$2.99

7

PAD, BATTERY

F1S-U8221-00-00

Unavailable

8

CASE, BATTERY

F2S-U8211-00-00

Unavailable

9

PLATE, BASE 2

F2S-U8592-00-00

Unavailable

10

PLATE, BASE 3

F2S-U8593-00-00

Unavailable

11

RIVET (EU0)

90267-48938-00

Unavailable

12

NUT, LOCK

F2N-U142L-00-00

Unavailable

13

BOLT, WITH WASHER

90119-06820-00

Unavailable

14

BAND,BATTERY 1

EU0-U821D-00-00

Unavailable

15

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

16

CLIP

90467-089U1-00

Unavailable

17

NIPPLE

GJ3-6215F-00-00

Unavailable

18

CLAMP

90465-10098-00

Unavailable

19

METER ASSY

F3Y-U820A-00-00

Unavailable

20

SCREW

F2S-U7823-01-00

Unavailable

21

CLAMP

90464-32801-00

Unavailable

22

GROMMET

GU2-6822E-01-00

Unavailable

23

GROMMET

F3J-U822E-01-00

Unavailable

24

CLAMP

90464-32801-00

Unavailable

25

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

26

BASE, CLAMP

F1W-U828M-00-00

Unavailable

27

RIVET, BLIND

90267-489U6-00

Unavailable

28

CLAMP

90464-32801-00

Unavailable

29

BAND

90601-200U2-00

Unavailable

30

BASE, CLAMP

F1W-U828M-00-00

Unavailable

31

CLAMP

90464-32801-00

Unavailable

32

RIVET, BLIND

90267-489U6-00

Unavailable

33

BASE, CLAMP

F1W-U828M-00-00

Unavailable

34

RIVET, BLIND

90267-489U6-00

Unavailable

35

CLAMP

90464-32801-00

Unavailable

36

CLAMP

90464-10008-00

Unavailable

37

BAND

90601-200U2-00

Unavailable

38

CLAMP

90464-32801-00

Unavailable

39

WIRE, MINUS LEAD

6GA-82116-00-00

Unavailable

40

BOLT, WITH WASHER

97513-08514-00

Unavailable
