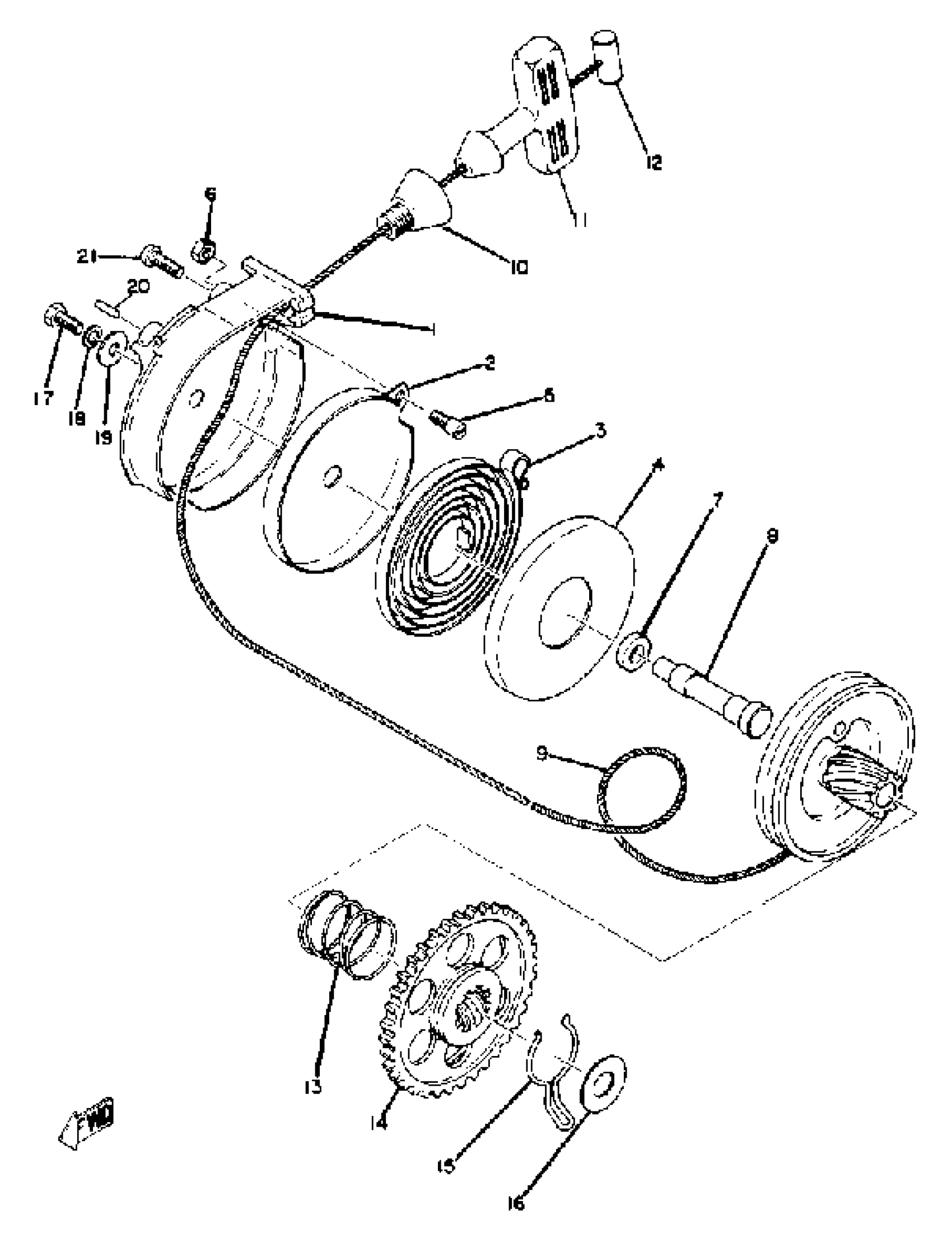

Yamaha EW643B 1973 STARTER Diagram

#

Description
Price

1

STARTER ASSEMBLY

(847-15710-00-00)

Unavailable

1

CASE, STARTER

(847-15711-00-00)

Unavailable

2

CASE, SPRING R

(834-15769-00-00)

Unavailable

3

SPRING, SPIRAL

(90510-08003-00)

Unavailable

4

CASE, SPRING L

(834-15766-00-00)

Unavailable

5

. PIN, SPEC''L SHAPE (834-15727-00)

90249-06043-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

. WASHER, PLATE (847-15719-00)

90201-10134-00

Unavailable

8

SHAFT, STARTER

(847-15717-00-00)

Unavailable

9

STR HANDLE CMPLT

(847-15750-00-00)

Unavailable

10

GUIDE, ROPE

(834-15758-00-00)

Unavailable

11

HANDLE, STARTER

(847-15755-00-00)

Unavailable

12

CONNECTOR 1

(834-15756-00-00)

Unavailable

13

. SPRING, COMPRESSION (847-15734-00)

90501-16108-00

Unavailable

14

GEAR, STARTER

(847-15786-00-00)

Unavailable

15

. CLIP (847-15799-00)

90468-35040-00

Unavailable

16

. WASHER, PLATE (847-15739-00)

90201-14224-00

Unavailable

17

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLATE

90201-06M02-00

Unavailable

20

PIN,DOWEL (137)

93604-14012-00

Unavailable

21

SCREW, PAN

98517-06020-00

Unavailable
