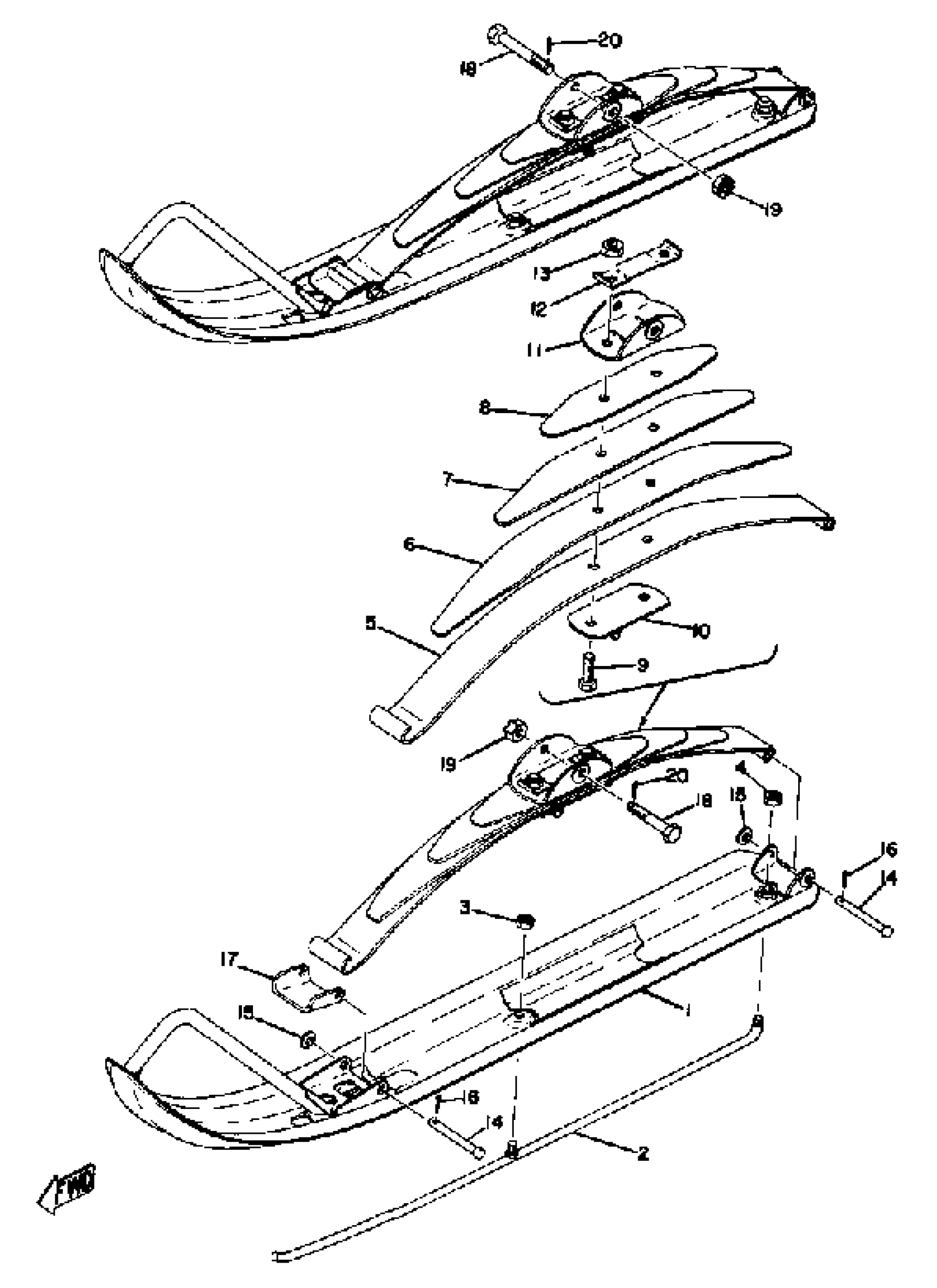

Yamaha EW643B 1973 SKI Diagram

#

Description
Price

1

SPRING ASSEMBLY 1

(834-23760-00-00)

Unavailable

1

SKI 1

(838-23710-01-00)

Unavailable

2

SPRING ASSEMBLY 2

(834-23770-00-00)

Unavailable

2

RUNNER 1

838-23731-03-00

Unavailable

3

NUT, HEXAGON SMALL

95317-08700-00

$9.49

4

NUT(6TA)

95337-08600-00

$8.49

5

. LEAF 1

834-23761-00-00

Unavailable

6

LEAF 2

(834-23762-00-00)

Unavailable

7

LEAF 3

(834-23763-00-00)

Unavailable

8

LEAF 4

(834-23764-00-00)

Unavailable

9

. BOLT

90101-10060-00

Unavailable

10

. SEAT, SPRING 1

802-23768-00-00

Unavailable

11

. SADDLE 1

806-23766-00-00

Unavailable

12

. WASHER, SPEC''L SHAP

90209-10069-00

Unavailable

13

NUT(6TD)

95337-10600-00

$9.49

14

PIN, CLEVIS (801-23733-00)

90240-08035-00

Unavailable

15

WASHER(6TC)

92907-08200-00

Unavailable

16

PIN COTTER

91490-30025-00

Unavailable

17

PLATE, WEAR 1

802-23735-00-00

Unavailable

18

BOLT, WITH HOLE

90102-10023-00

Unavailable

19

NUT, SLOTTED

95306-10900-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable
