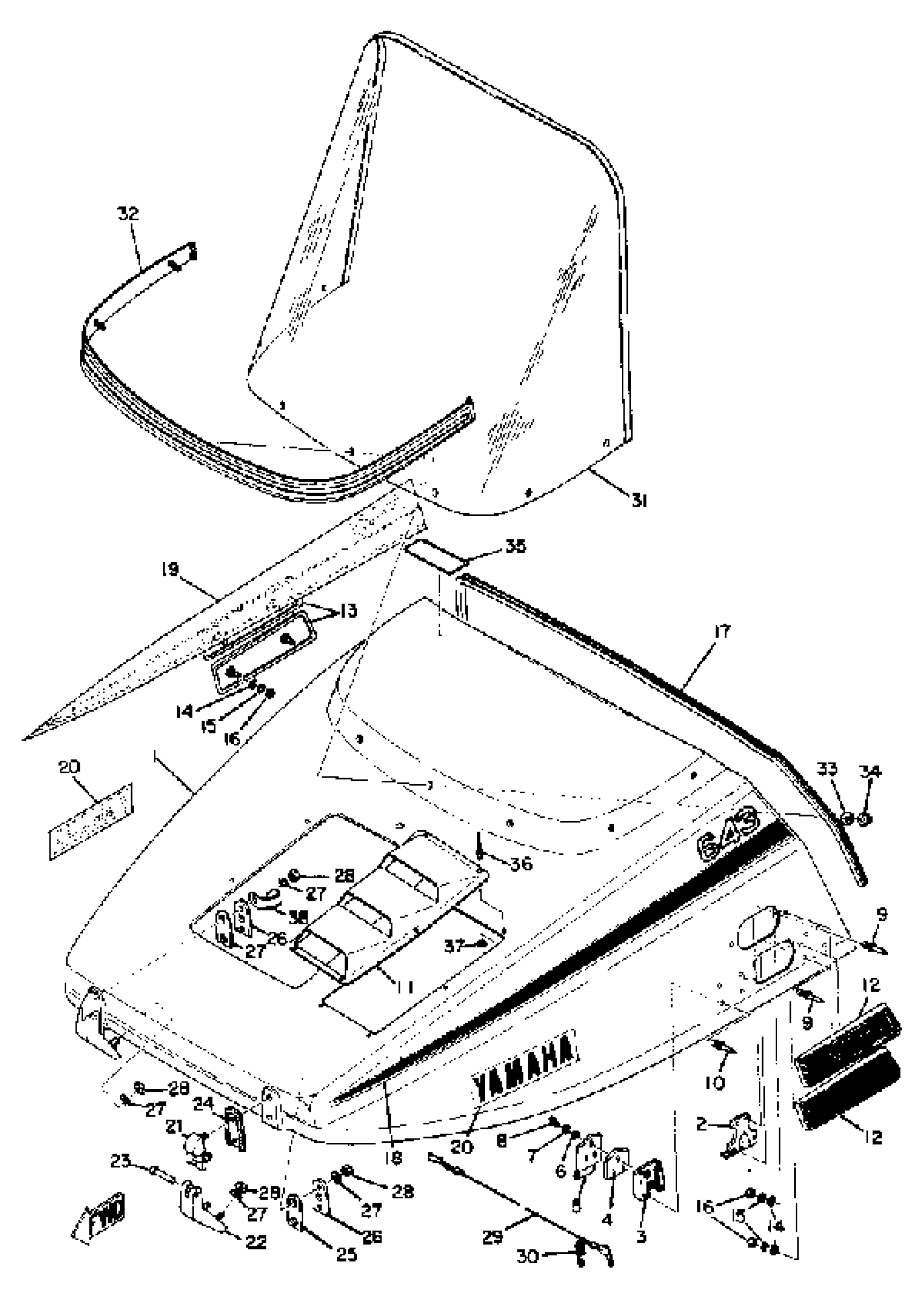

Yamaha EW643B 1973 SHROUD Diagram

#

Description
Price

1

SHROUD

(852-77111-01-00)

Unavailable

2

. BODY, LATCH 1

806-77171-00-00

Unavailable

3

CLAMP 4

(811-77138-00-00)

Unavailable

4

WASHER 2

810-77179-00-00

Unavailable

5

CLAMP 2

810-77136-00-00

Unavailable

6

WASHER, PLATE 8067717800

90201-05029-00

$8.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

BOLT, HEXAGON

97013-05010-00

$0.59

9

RIVET, BLIND

90267-40936-00

Unavailable

10

RIVET, BLIND

90267-40936-00

Unavailable

11

LOUVER 4

852-77134-00-00

Unavailable

12

LOUVER 1

(852-77131-00-00)

Unavailable

13

LOUVER 2

838-77132-00-00

Unavailable

14

. WASHER, PLAIN

92990-05200-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

16

NUT, HEXAGON (663)

95380-05600-00

Unavailable

17

TRIM 2

(852-77166-00-00)

Unavailable

18

ORNAMENT 1

(847-77163-00-00)

Unavailable

19

ORNAMENT 2

(847-77164-00-00)

Unavailable

20

EMBLEM 7

(838-77357-00-00)

Unavailable

21

HINGE 1

(806-77145-00-00)

Unavailable

22

HINGE 3

806-77147-00-00

Unavailable

23

PIN (806-77157-00)

90243-05002-00

Unavailable

24

DAMPER 1

(806-77198-00-00)

Unavailable

25

DAMPER 2

810-77199-00-00

Unavailable

26

PLATE, BACK UP 1

810-77153-00-00

Unavailable

27

WASHER, SPRING

92995-06100-00

Unavailable

28

NUT, HEXAGON

95380-06600-00

Unavailable

29

STOPPER, SHROUD

(838-77118-00-00)

Unavailable

30

CLAMP,ROD

838-77159-00-00

Unavailable

31

WINDSHEALD COMP

(850-77210-01-00)

Unavailable

32

TRIM LOWER ASSEMBLY

(838-77220-00-00)

Unavailable

33

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

34

NUT, NYLON

95707-05300-00

Unavailable

35

LABEL, SAFETY

288-21659-00-00

Unavailable

36

RIVET, BLIND

(90267-32020-00)

Unavailable

37

WASHER, PLATE 8077743700

90201-03313-00

Unavailable

38

CLAMP

90465-06013-00

Unavailable
