1973 Yamaha EW643B Shifter Diagram

← All diagrams

Find the part on the Shifter diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

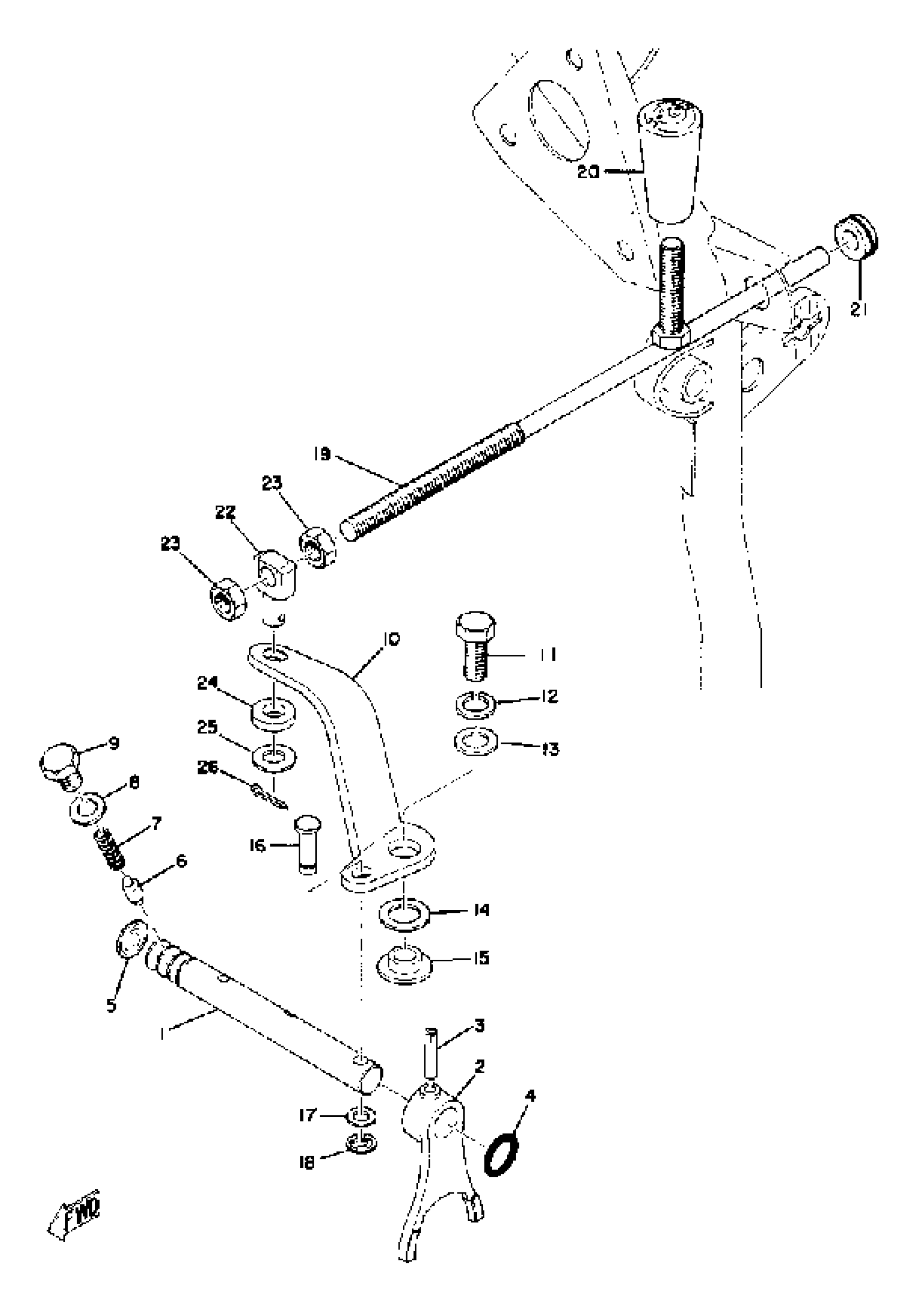

1973 Yamaha EW643B Shifter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, SHIF FRK GDE 1

(826-18531-00-00)

1
Out of stock

2

FORK, SHIFT 1

826-18511-01-00

1
Out of stock

3

PIN, SPRING

91690-40020-00

1

$3.30

In stock

4

O-RING (137)

93210-12014-00

1

$5.92

In stock

5

PLUG, EXPANSION

(90330-16002-00)

1
Out of stock

6

PIN, SPEC''L SHAPE

90249-07004-00

1
Out of stock

7

—

$2.37

In stock

8

GASKET

90430-08023-00

1
Out of stock

9

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

10

LEVER

(852-18198-00-00)

1
Out of stock

11

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

WASHER, WAVE (17W)

90206-12074-00

1

$6.98

In stock

14

SPACER

(90560-08065-00)

1
Out of stock

15

SPACER

90560-08067-00

1
Out of stock

16

PIN, SPEC''L SHAPE

(90249-06019-00)

1
Out of stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

CIRCLIP(22K)

99080-05600-00

—

$6.17

In stock

19

ROD, SHIFT

(843-18115-00-00)

1
Out of stock

20

KNOB, CHANGE

(843-18199-00-00)

1
Out of stock

21

GROMMET (2T4)

90480-12237-00

—

$1.95

In stock

22

PIN, SPEC''L SHAPE

90249-07011-00

1
Out of stock

23

. NUT

95380-08700-00

1

$3.07

In stock

24

WASHER, PLATE

(90202-08018-00)

1
Out of stock

25

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

26

PIN, COTTER

91490-25020-00

—

$2.94

In stock
