1973 Yamaha EW643B Pump Drive - Gear Diagram

← All diagrams

Find the part on the Pump Drive - Gear diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

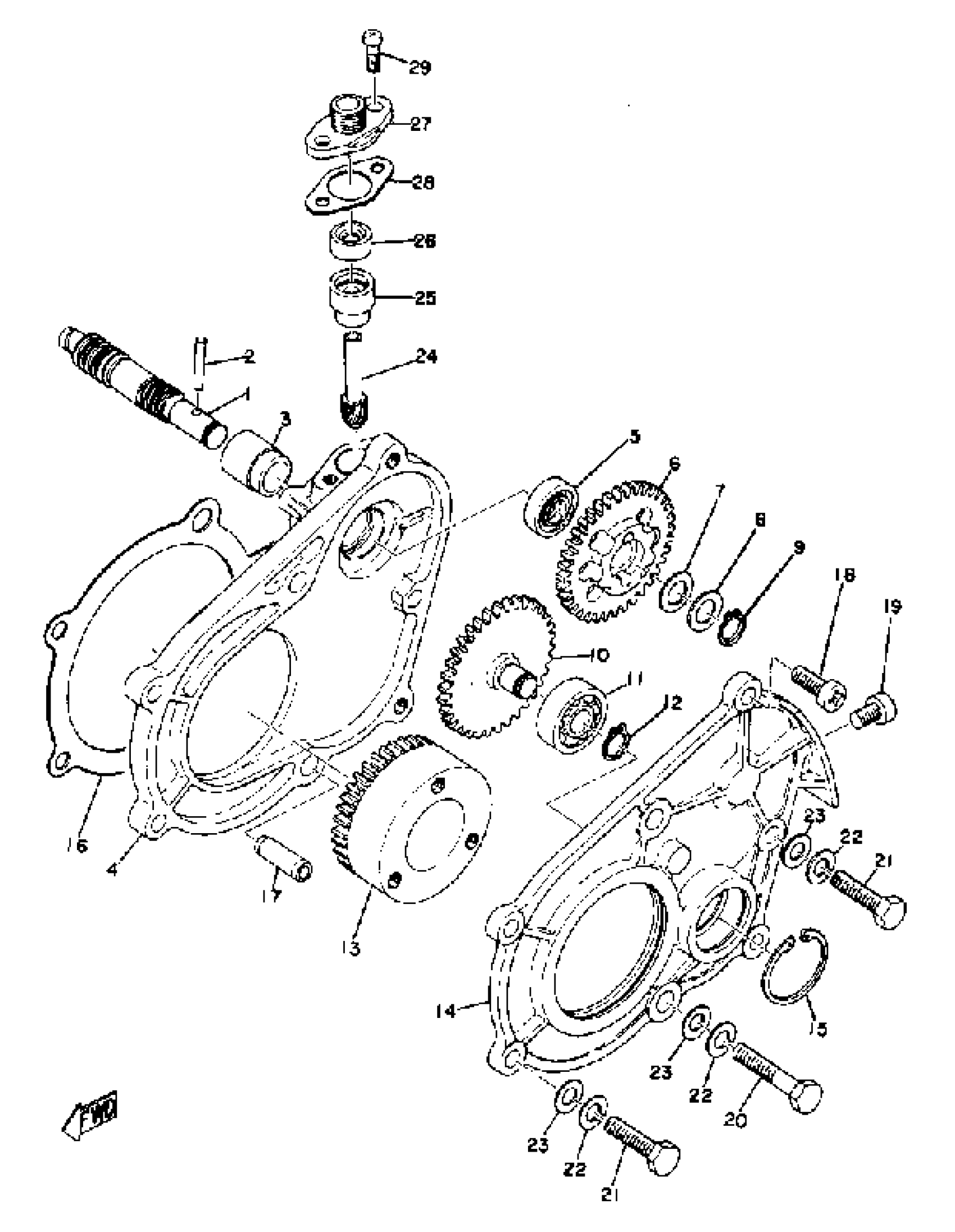

1973 Yamaha EW643B Pump Drive - Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHAFT, WORM

826-13175-00-00

1
Out of stock

2

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

3

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

4

COVER, OIL PUMP

(834-15416-00-00)

1
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

GEAR, DRIVE

(834-13188-00-00)

1
Out of stock

7

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

8

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

9

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

10

GEAR, IDLE

(821-13179-00-00)

1
Out of stock

11

—

$29.35

In stock

12

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

13

GEAR, PUMP DRIVE

(834-13178-00-00)

1
Out of stock

14

COVER, OIL PUMP R

(834-15426-00-00)

1
Out of stock

15

CIRCLIP, R-TYPE (R-26)

93420-26024-00

1
Out of stock

16

GASKET, O/PMP CVR 1

(834-15456-00-00)

1
Out of stock

17

PIN, DOWEL

91810-18022-00

1
Out of stock

18

SCREW, PAN

98507-06014-00

—

$6.18

In stock

19

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

20

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

21

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

24

GEAR, DRIVEN (10T)

813-17841-00-00

1
Out of stock

25

BUSH, DRIVEN GEAR OUTER

821-17843-00-00

1
Out of stock

26

OIL SEAL (6X12X4-821)

93104-06033-00

—

$6.49

In stock

27

CAP, HOUSING

821-17819-00-00

1
Out of stock

28

GASKET

821-17818-02-00

—

$5.66

In stock

29

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock
