1973 Yamaha EW643B Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

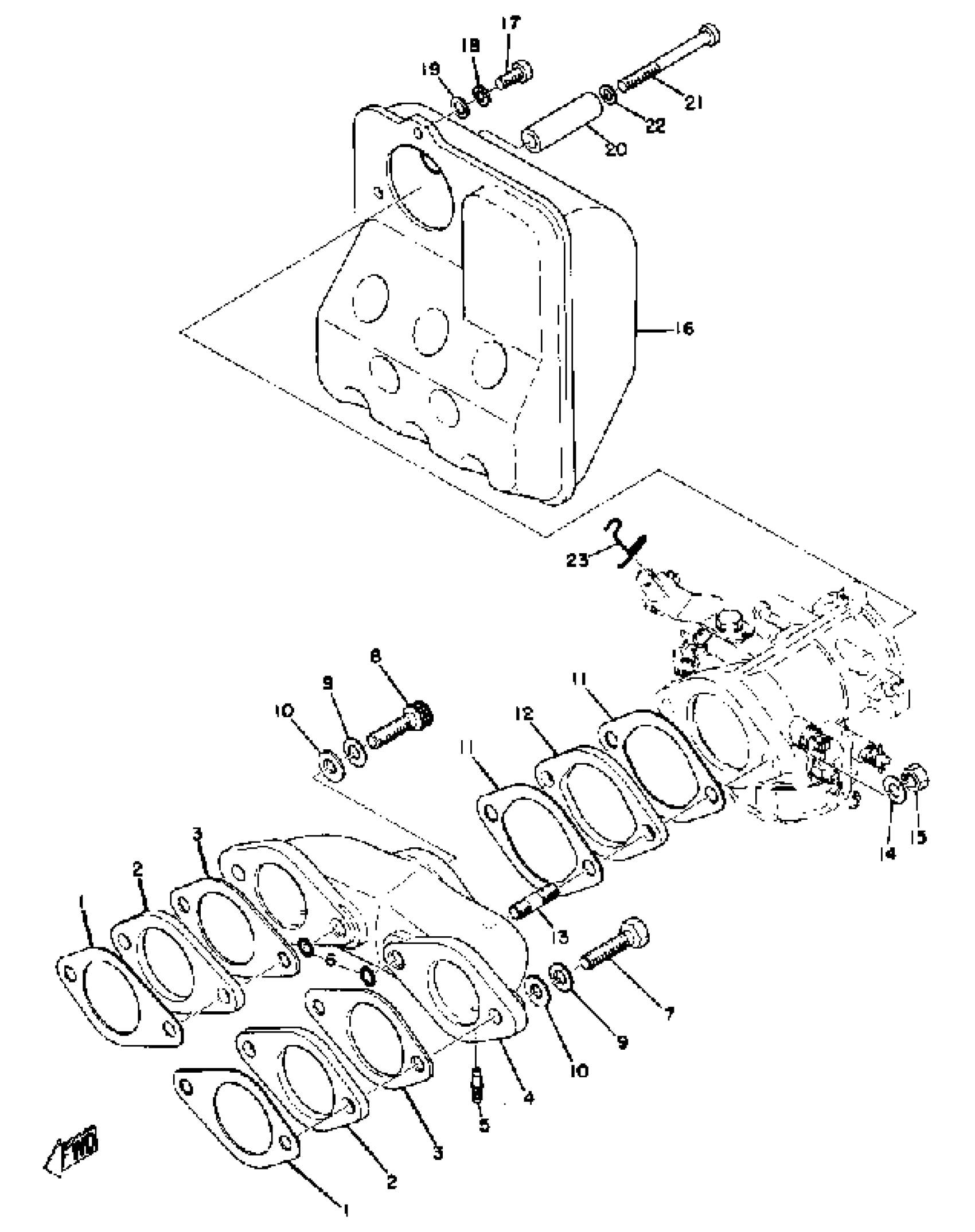

1973 Yamaha EW643B Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, MANIFOLD

(834-13556-00-00)

1
Out of stock

2

MANIFOLD, INTAKE

(834-13555-00-00)

1
Out of stock

3

GASKET

(834-13563-00-00)

1
Out of stock

4

JOINT, CARBURETOR

(834-13565-00-00)

1
Out of stock

5

NOZZLE

824-13552-00-00

1
Out of stock

6

O-RING (11M)

93210-07540-00

1

$5.77

In stock

7

BOLT

97013-08035-00

1

$4.80

In stock

8

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

11

GASKET, MANIFOLD

(823-13556-01-00)

1
Out of stock

12

JOINT, CARBURETOR

(834-13585-00-00)

1
Out of stock

13

BOLT, STUD

(90116-08045-00)

1
Out of stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

. NUT

95380-08700-00

1

$3.07

In stock

16

SILENCER, INTAKE 1

(852-14431-00-00)

1
Out of stock

17

SCREW, PAN

98507-06014-00

—

$6.18

In stock

18

WASHER, SPRING

92907-06100-00

—
Out of stock

19

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

20

COLLAR

(90387-07041-00)

1
Out of stock

21

SCREW, PAN

98507-06065-00

—
Out of stock

22

WASHER, SPRING

92907-06100-00

—
Out of stock

23

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock
