1973 Yamaha EW643B Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1973 Yamaha EW643B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

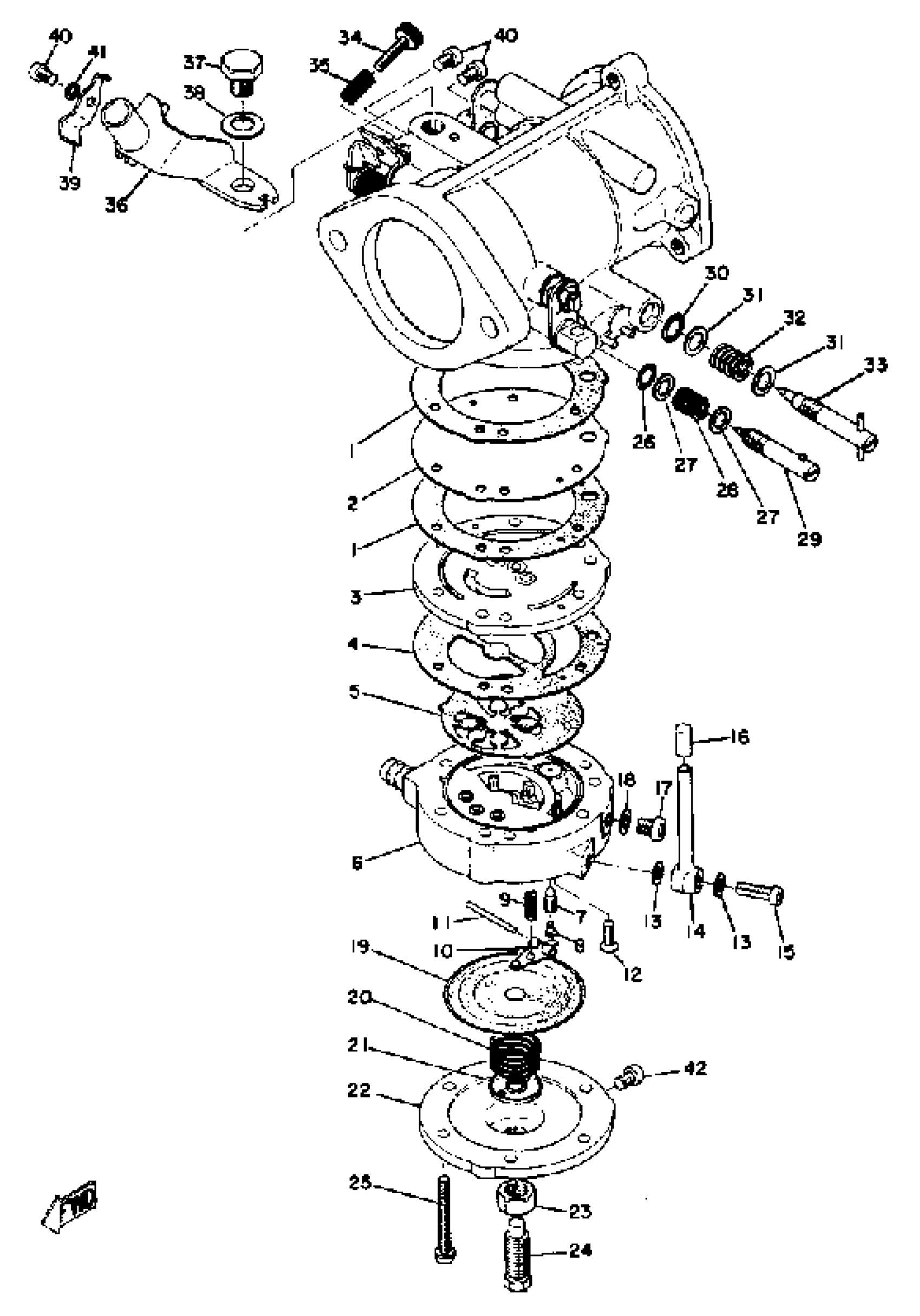

1973 Yamaha EW643B Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

838-14536-09-00

1

$11.29

In stock

1

CARBURETOR ASSEMBLY 1

(852-14501-00-00)

1
Out of stock

2

. DIAPHRAGM, PUMP

834-14541-00-00

1
Out of stock

3

BODY, PUMP 1

(838-14542-00-00)

1
Out of stock

4

GASKET

834-14553-09-00

1
Out of stock

5

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

7

VALVE

838-14546-00-00

1

$39.18

In stock

8

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

9

. SPRING

810-14556-00-00

1
Out of stock

10

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

11

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

12

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

13

. WASHER

806-14559-00-00

1
Out of stock

14

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

15

. SCREW

8A1-14592-00-00

1
Out of stock

16

. CAP, BLIND

810-24462-01-00

1
Out of stock

17

SCREW

(806-14567-01-00)

1
Out of stock

18

. WASHER

810-14597-00-00

1
Out of stock

19

DIAPHRAGM

810-14545-00-00

—
Out of stock

20

SPRING

(810-14555-00-00)

1
Out of stock

21

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

22

BODY, PUMP 3

(810-14544-00-00)

1
Out of stock

23

. NUT

95380-08700-00

1

$3.07

In stock

24

. SCREW, STOP

824-14565-00-00

1
Out of stock

25

SCREW

(824-14567-00-00)

1
Out of stock

26

. O-RING

824-14563-00-00

1
Out of stock

27

. WASHER

838-14596-00-00

1
Out of stock

28

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

29

SCREW, ADJUST

(838-14522-00-00)

1
Out of stock

30

. O-RING

824-14564-00-00

1
Out of stock

31

. WASHER

838-14597-00-00

1
Out of stock

32

SPRING, AJST SCREW

(824-14533-00-00)

1
Out of stock

33

SCREW, ADJUST

(852-14521-00-00)

1
Out of stock

34

SCREW, STOP

(810-14523-00-00)

1
Out of stock

35

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

36

BRACKET, THROTTLE

(824-14571-00-00)

1
Out of stock

37

BOLT(62E)

97013-08012-00

—

$2.48

In stock

38

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

39

PLATE

(826-14527-00-00)

1
Out of stock

40

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

41

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

42

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
