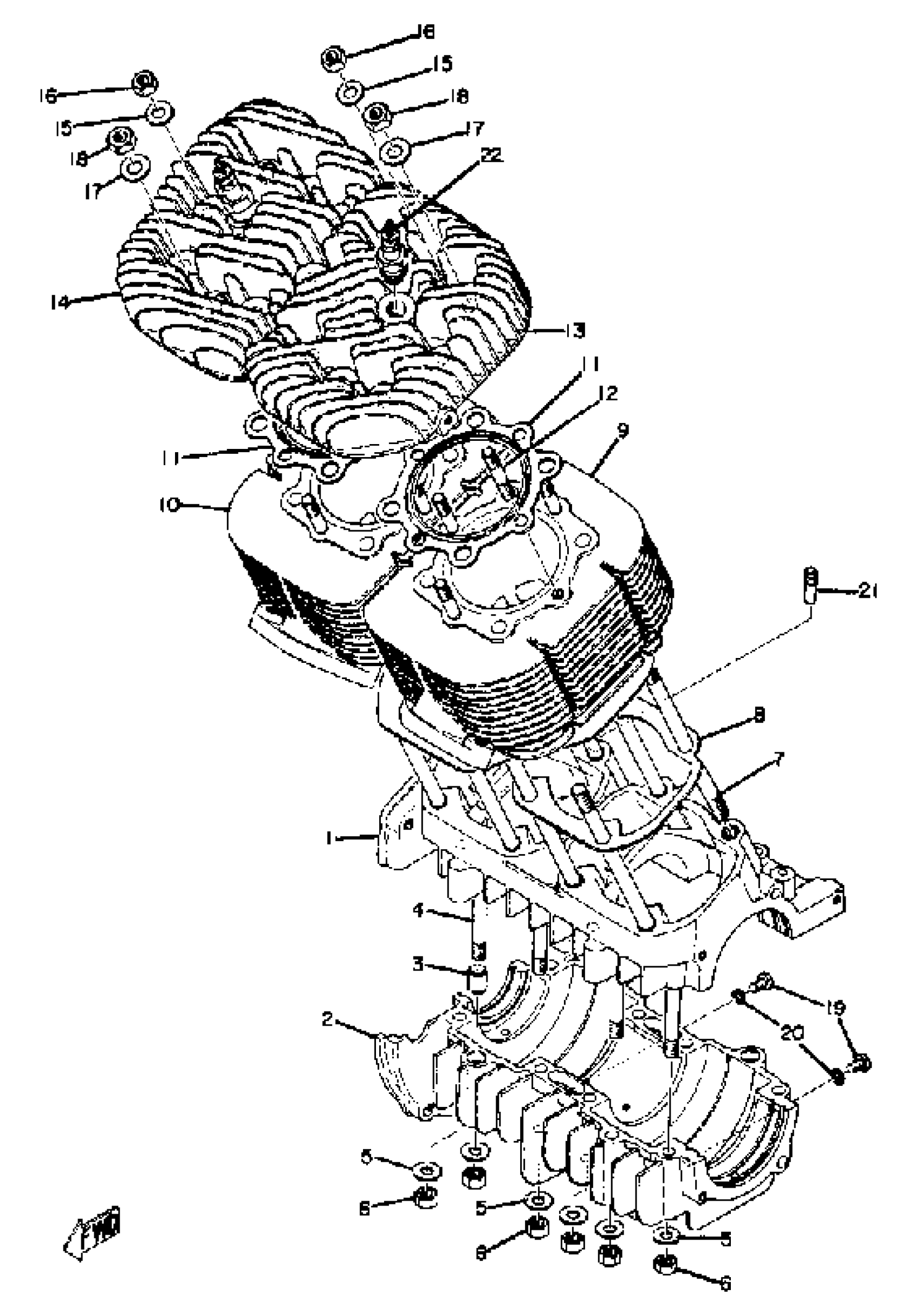

Yamaha EW643B 1973 CRANKCASE - CYLINDER Diagram

#

Description
Price

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT, STUD (834-15192-00)

90116-08061-00

Unavailable

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

NUT(6L2)

95333-08600-00

$2.49

7

BOLT, STUD (90116-10093)

90116-10094-00

Unavailable

8

GASKET, CYLINDER

(834-11351-00-00)

Unavailable

9

CYLINDER 1

(847-11311-00-00)

Unavailable

10

CYLINDER 2

(847-11321-00-00)

Unavailable

11

GASKET, CYLINDER HEAD 1

834-11181-00-00

Unavailable

12

BOLT, STUD

(90116-08049-00)

Unavailable

13

HEAD, CYLINDER 1

(847-11111-00-00)

Unavailable

14

HEAD, CYLINDER 2

(847-11121-00-00)

Unavailable

15

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

16

NUT(3BM)

95314-10600-00

$2.39

17

WASHER, PLAIN

92990-08200-00

Unavailable

18

NUT(6L2)

95333-08600-00

$2.49

19

SCREW PAN HEAD

98580-06010-00

Unavailable

20

GASKET 838153840000

90430-06016-00

Unavailable

21

JOINT, BREATHER

J38-11116-00-00

Unavailable

22

B7ES NGK SPLUG 4PK

B7E-S0000-00-00

Unavailable
