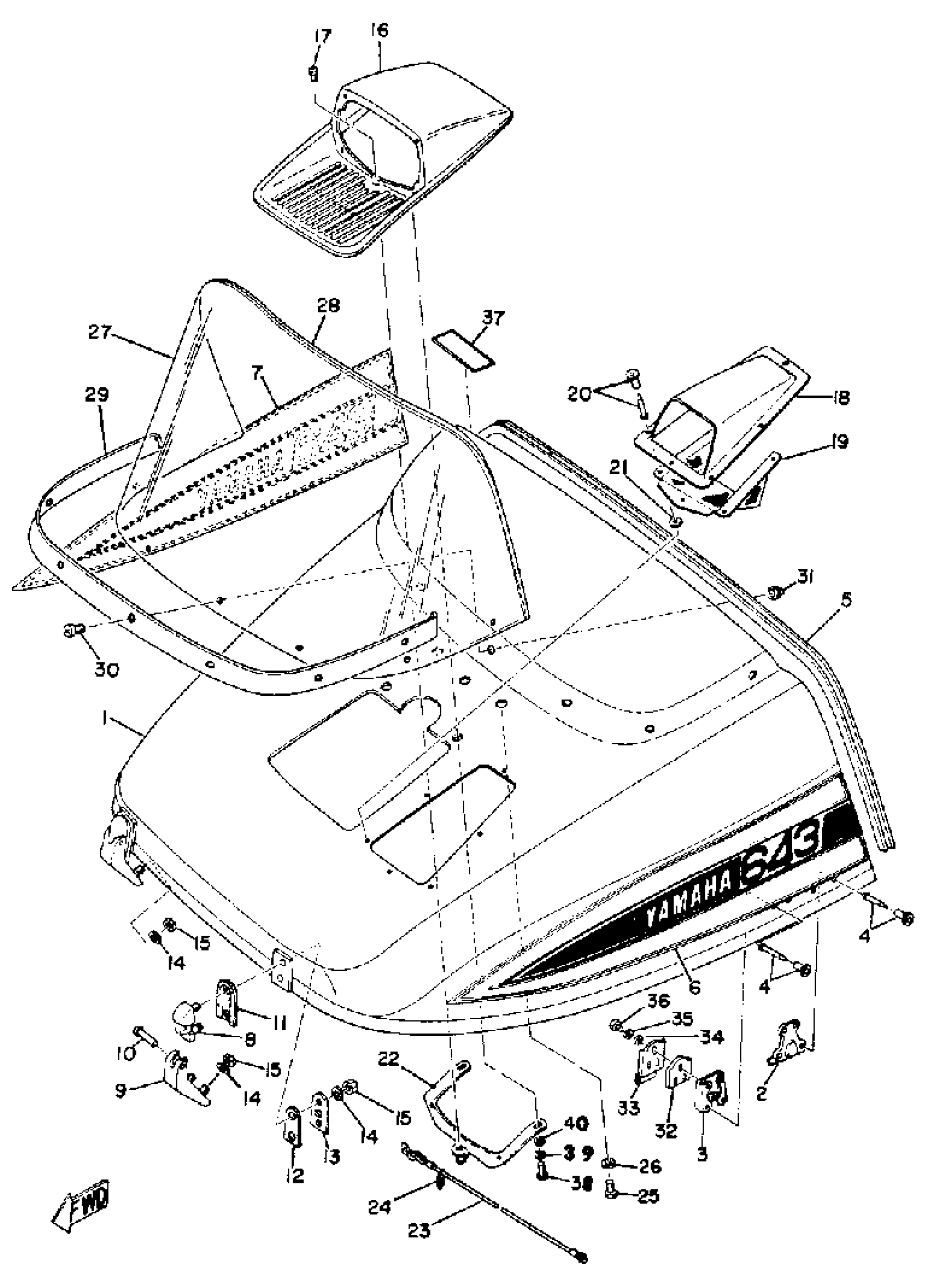

Yamaha EW643 1972 SHROUD Diagram

#

Description
Price

1

SHROUD

(834-77111-00-00)

Unavailable

2

. BODY, LATCH 1

806-77171-00-00

Unavailable

3

CLAMP 4

(811-77138-00-00)

Unavailable

4

. RIVET, BLIND ()806-77175-00)

90267-40026-00

Unavailable

5

TRIM 2

(807-77166-00-00)

Unavailable

6

ORNAMENT 1

(834-77163-00-00)

Unavailable

7

ORNAMENT 2

(834-77164-00-00)

Unavailable

8

HINGE 1

(806-77145-00-00)

Unavailable

9

HINGE 3

806-77147-00-00

Unavailable

10

PIN (806-77157-00)

90243-05002-00

Unavailable

11

DAMPER 1

(806-77198-00-00)

Unavailable

12

DAMPER 2

810-77199-00-00

Unavailable

13

PLATE, BACK UP 1

810-77153-00-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

NUT, HEXAGON

95380-06600-00

Unavailable

16

BODY, HEADLIGHT

(811-84311-00-00)

Unavailable

17

SCREW, PAN

98517-05012-00

Unavailable

18

LOUVER 1

(834-77131-00-00)

Unavailable

19

LOUVER 3

(834-77133-00-00)

Unavailable

20

RIVET, BLIND

(90267-32020-00)

Unavailable

21

WASHER, PLATE(4SR)

90201-03644-00

Unavailable

22

HOLDER, ROD 1

(826-77139-00-00)

Unavailable

23

STOPPER, SHROUD

(826-77118-00-00)

Unavailable

24

CLAMP, ROD

(806-77159-00-00)

Unavailable

25

BOLT, HEXAGON

(97306-05015-00)

Unavailable

26

WASHER, PLAIN

(807-84344-00-00)

Unavailable

27

WINDSHIELD

807-77210-00-00

Unavailable

28

TOOL

UNA-VAILA-BL-EI

Unavailable

29

TRIM, LOWER

(807-77214-00-00)

Unavailable

30

SCREW, BIND

98903-05016-00

Unavailable

31

NUT, T (802-77217-00)

90180-05004-00

Unavailable

32

WASHER 2

810-77179-00-00

Unavailable

33

CLAMP 2

810-77136-00-00

Unavailable

34

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

35

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

36

BOLT, HEXAGON

97013-05010-00

Unavailable

37

LABEL, SAFETY

288-21659-00-00

Unavailable

38

BOLT(3JK)

97027-05020-00

Unavailable

39

WASHER(3SX)

92907-05100-00

Unavailable

40

WASHER, PLAIN LARGE

92907-05200-00

Unavailable
