OIL PUMP

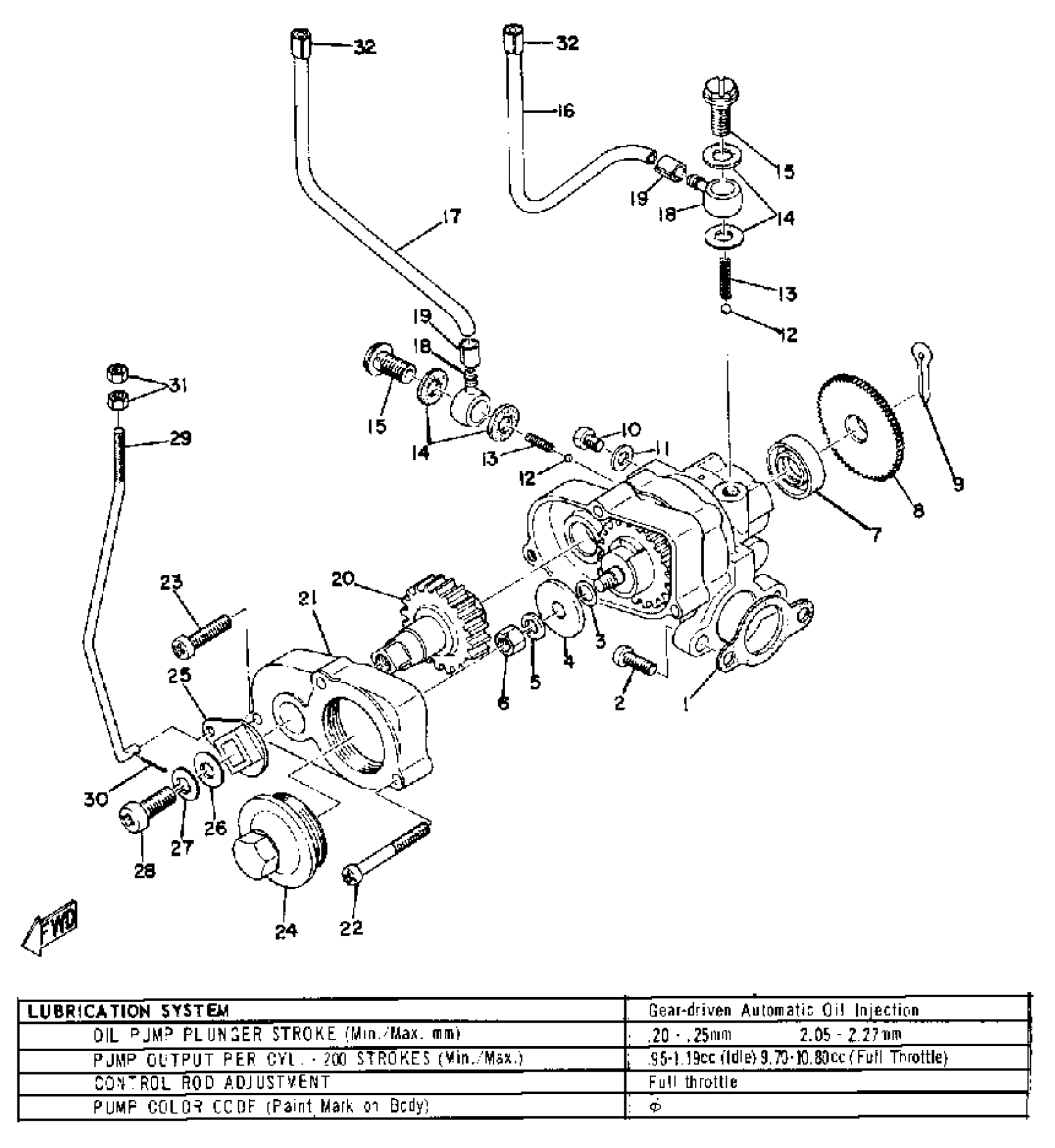

Yamaha EW643 1972 OIL PUMP Diagram
#
1
GASKET, PUMP CASE
126-13116-01-00
$8.99
1
OIL PUMP ASSEMBLY
(834-13101-00-00)
Unavailable
2
SCREW, PAN HEAD(6B0)
97885-05016-00
Unavailable
3
SHIM,PLUNGER
137-13137-00-03
$5.49
3
SHIM,PLUNGER
137-13137-00-05
$6.99
4
PLATE, ADJUSTING
137-13138-01-00
Unavailable
5
YBS67-5 WASHER, SPRING
92990-05100-00
$0.35
6
NUT, HEXAGON (663)
95380-05600-00
$8.49
7
OIL SEAL (J10)
93101-10090-00
$8.49
8
PLATE, STARTER
(137-13128-00-00)
Unavailable
9
. PIN, COTTER
91401-12018-00
Unavailable
10
SCREW, BIND
98980-04008-00
Unavailable
11
GASKET 137131870000
90430-04004-00
$9.49
12
BALL
93505-32002-00
$2.92
13
SPRING, COMPRESSION
(90501-02017-00)
Unavailable
14
GASKET(3FP)
90430-06224-00
Unavailable
15
BOLT UNION 137131650000
90401-06001-00
Unavailable
16
. HOSE (3-90) (807-13161-01)
90445-05020-00
Unavailable
17
HOSE (L200)
90445-05N13-00
Unavailable
18
BANJO, DELIVERY PIPE
214-13162-01-00
Unavailable
19
CLIP (214-13164-00)
90468-02033-00
Unavailable
20
GEAR, PUMP CONTROL
(821-13154-00-00)
Unavailable
21
COVER, AJST PULLEY
(821-13146-00-00)
Unavailable
22
SCREW, PAN HEAD(MK5)
98507-04035-00
Unavailable
23
SCREW, PAN HEAD
98517-04020-00
Unavailable
24
CAP, PUMP CASE
(807-13143-00-00)
Unavailable
25
LEVER, PUMP CONTROL
(821-13156-00-00)
Unavailable
26
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
27
WASHER, SPRING
92995-06100-00
Unavailable
28
SCREW, PAN
98507-06014-00
Unavailable
30
. PIN, COTTER
91490-12012-00
Unavailable
31
NUT, HEXAGON (807-13139-00)
90170-03008-00
Unavailable
32
CLIP (214-13164-00)
90468-02033-00
Unavailable
