1972 Yamaha EW643 Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

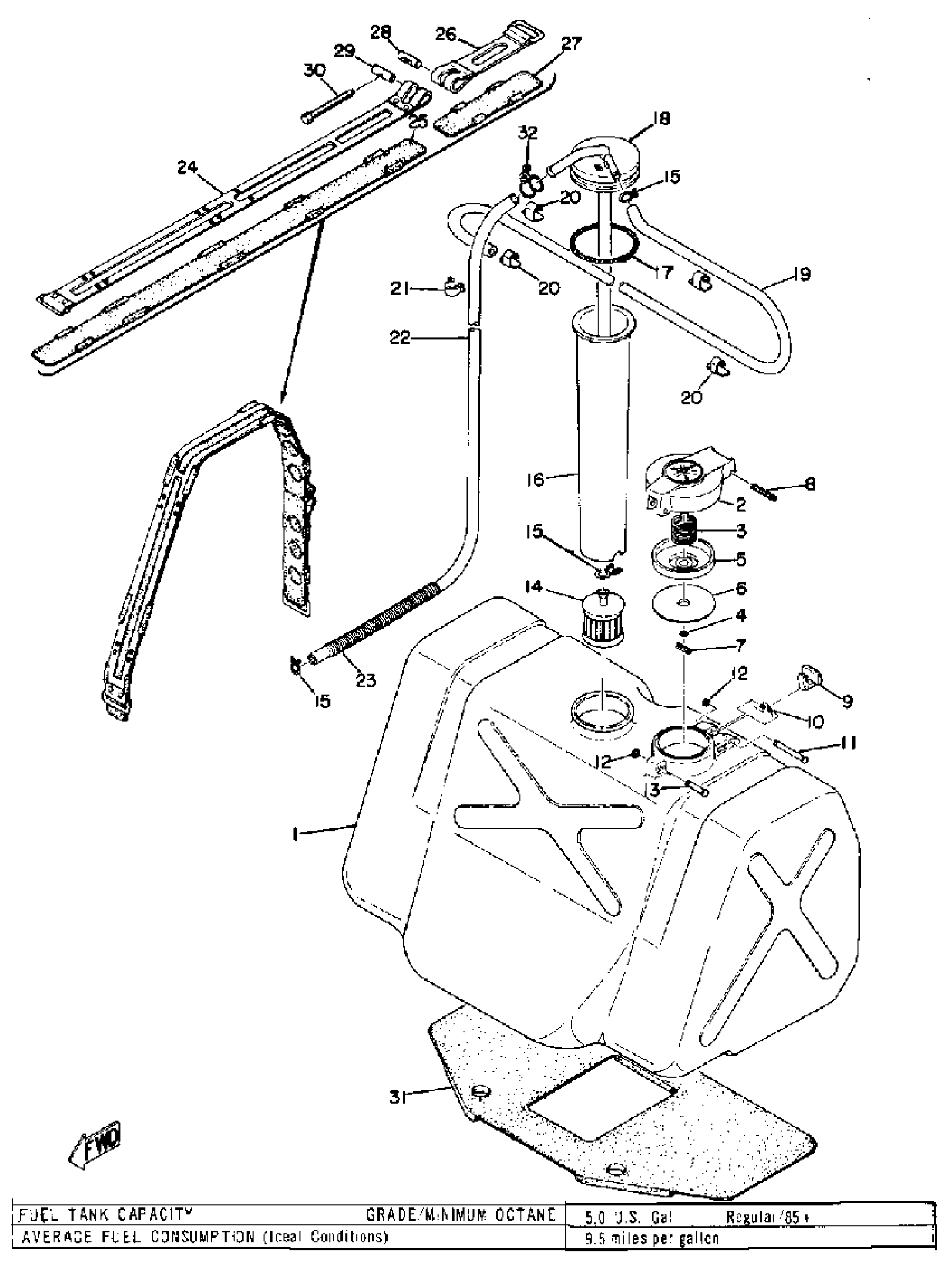

1972 Yamaha EW643 Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(826-24111-00-00)

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

SPRING, CAP

90501-20130-00

1

$6.80

In stock

4

O-RING (256)

93210-04122-00

1
Out of stock

5

DISK,CAP

813-24613-01-00

1

$18.71

In stock

6

GASKET, CAP

256-24612-00-00

1
Out of stock

7

PIN, SPRING

91690-30016-00

1

$5.88

In stock

8

PIN, SPRING

91609-25032-00

1

$1.83

In stock

9

HOOK

83M-24628-00-00

1

$19.68

In stock

10

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

11

PIN (813)

90249-03017-00

1

$2.25

In stock

12

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

13

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

14

FILTER ASSEMBLY

(813-24560-01-00)

1
Out of stock

15

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

16

PIPE, SUCTION 2

(822-24336-00-00)

1
Out of stock

17

SPRING, TENSION (8R4)

90506-06261-00

—

$6.94

In stock

18

PIPE, SUCTION 1

(822-24335-01-00)

1
Out of stock

19

HOSE

90446-09015-00

1
Out of stock

20

CLAMP, FUEL PIPE 1

(813-24366-00-00)

1
Out of stock

21

CLAMP

(90463-07002-00)

1
Out of stock

22

HOSE

90446-11040-00

1
Out of stock

23

—

$3.98

In stock

24

BAND, TNK FITTING 1

(822-24173-00-00)

1
Out of stock

25

DAMPER, LOCATING 3

822-24183-00-00

1
Out of stock

26

BAND, TNK FITTING 2

(822-24199-00-00)

1
Out of stock

27

DAMPER, LOCATING 4

(822-24184-00-00)

1
Out of stock

28

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock

29

CLAMP

806-24135-00-00

—

$3.20

In stock

30

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

31

DAMPER, LOCATING 1

(826-24181-00-00)

1
Out of stock

32

CLIP(3BM)

90467-10135-00

—

$6.91

In stock
