CARBURETOR

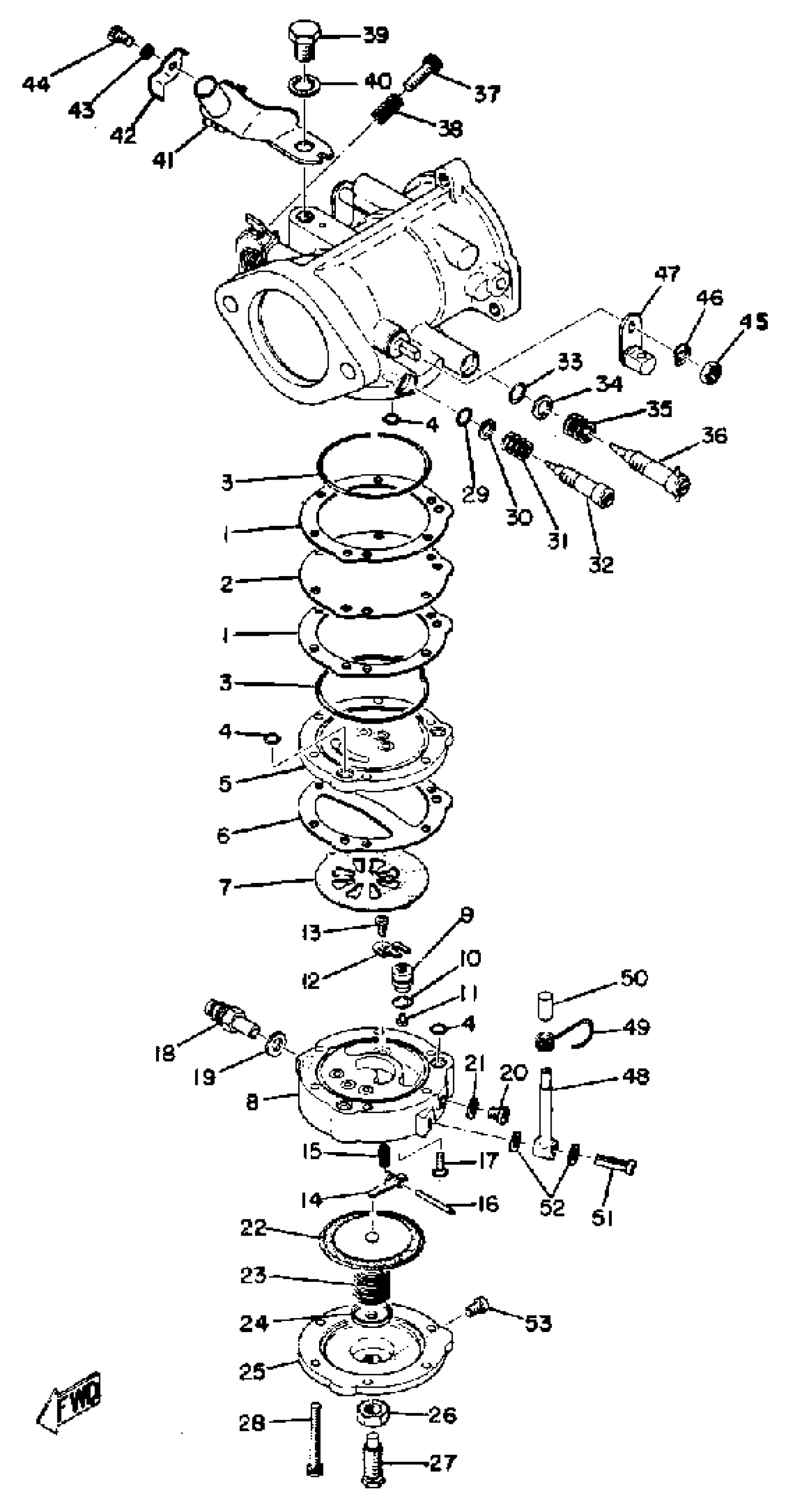

1972 Yamaha EW643 Carburetor Diagram
Find the part on the Carburetor diagram for your 1972 Yamaha EW643, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
CARBURETOR ASSEMBLY 1
(834-14501-00-00)
1
GASKET
(834-14536-00-00)
2
. DIAPHRAGM, PUMP
834-14541-00-00
3
. O-RING
806-14562-00-00
4
. O-RING
810-14561-00-00
5
BODY, PUMP 1
(834-14542-00-00)
6
GASKET
834-14553-09-00
8
BODY, PUMP 2
(834-14543-00-00)
9
VALVE SEAT ASSEMBLY
(837-14590-00-00)
10
. O-RING
810-24486-00-00
12
PLATE, PIN FITTING
(810-14549-00-00)
14
ARM, FLOAT
(810-14547-00-00)
15
. SPRING
810-14556-00-00
16
PIN, FLOAT ARM
(806-14548-00-00)
18
JOINT
(810-14568-00-00)
19
WASHER
(810-14558-00-00)
20
SCREW
(806-14567-01-00)
21
. WASHER
810-14597-00-00
22
DIAPHRAGM
810-14545-00-00
23
SPRING
(810-14555-00-00)
24
SEAT, SPRING
(810-14136-00-00)
25
BODY, PUMP 3
(813-14544-00-00)
27
. SCREW, STOP
824-14565-00-00
28
SCREW
(824-14567-00-00)
29
. O-RING
824-14563-00-00
30
. WASHER
806-14596-00-00
31
SPRING, AJST SCREW
(824-14531-00-00)
32
. SCREW, ADJUST
824-14522-00-00
33
. O-RING
824-14564-00-00
34
. WASHER
824-14597-00-00
35
SPRING, AJST SCREW
(824-14533-00-00)
36
SCREW, ADJUST
(834-14521-00-00)
37
SCREW, STOP
(810-14523-00-00)
38
SPRING, AJST SCREW
(806-14533-00-00)
40
WASHER, IN.TOOTH
(92901-08300-00)
41
BRACKET, THROTTLE
(824-14571-00-00)
42
PLATE
(826-14527-00-00)
44
SCREW
(810-14591-00-00)
46
WASHER, LOCK
(806-14599-00-00)
47
. LEVER
810-14573-00-00
48
. PIPE, AIRVENT
810-14197-02-00
49
CLIP
(824-14159-00-00)
50
. CAP, BLIND
810-24462-01-00
51
. SCREW
8A1-14592-00-00
52
. WASHER
806-14559-00-00
