Description

Price

1

CASE, FAN

(834-12621-00-00)

Unavailable

2

CASE, FAN 2

(847-12622-00-00)

Unavailable

3

PIN,DOWEL (137)

93604-14012-00

$1.81

4

WASHER, LOCK

(90215-08070-00)

Unavailable

5

BOLT (682)

97013-08025-00

$8.49

6

SPACER 2

(834-15725-00-00)

Unavailable

7

STOPPER

(834-15794-00-00)

Unavailable

8

WASHER, SPRING

92995-06100-00

Unavailable

9

SCREW, PAN

98517-06012-00

$3.78

10

PIN,DOWEL (137)

93604-14012-00

$1.81

11

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

12

COVER, MAGNETO

(834-12617-01-00)

Unavailable

13

WASHER, SPRING

92907-06100-00

$4.25

14

BOLT(3JP)

97017-06010-00

$3.76

15

AIR SHROUD, CYLINDER 1

(834-12651-00-00)

Unavailable

16

AIR SHROUD, CYLINDER 2

(834-12652-00-00)

Unavailable

17

SCREW, PAN

98507-06014-00

Unavailable

18

WASHER, SPRING

92907-06100-00

$4.25

19

WASHER(6TA)

92907-06200-00

Unavailable

20

DUCT

(834-12661-00-00)

Unavailable

21

COLLAR

(90387-07034-00)

Unavailable

22

WASHER, SPRING

92907-06100-00

$4.25

23

SCREW, PAN

98507-06014-00

Unavailable

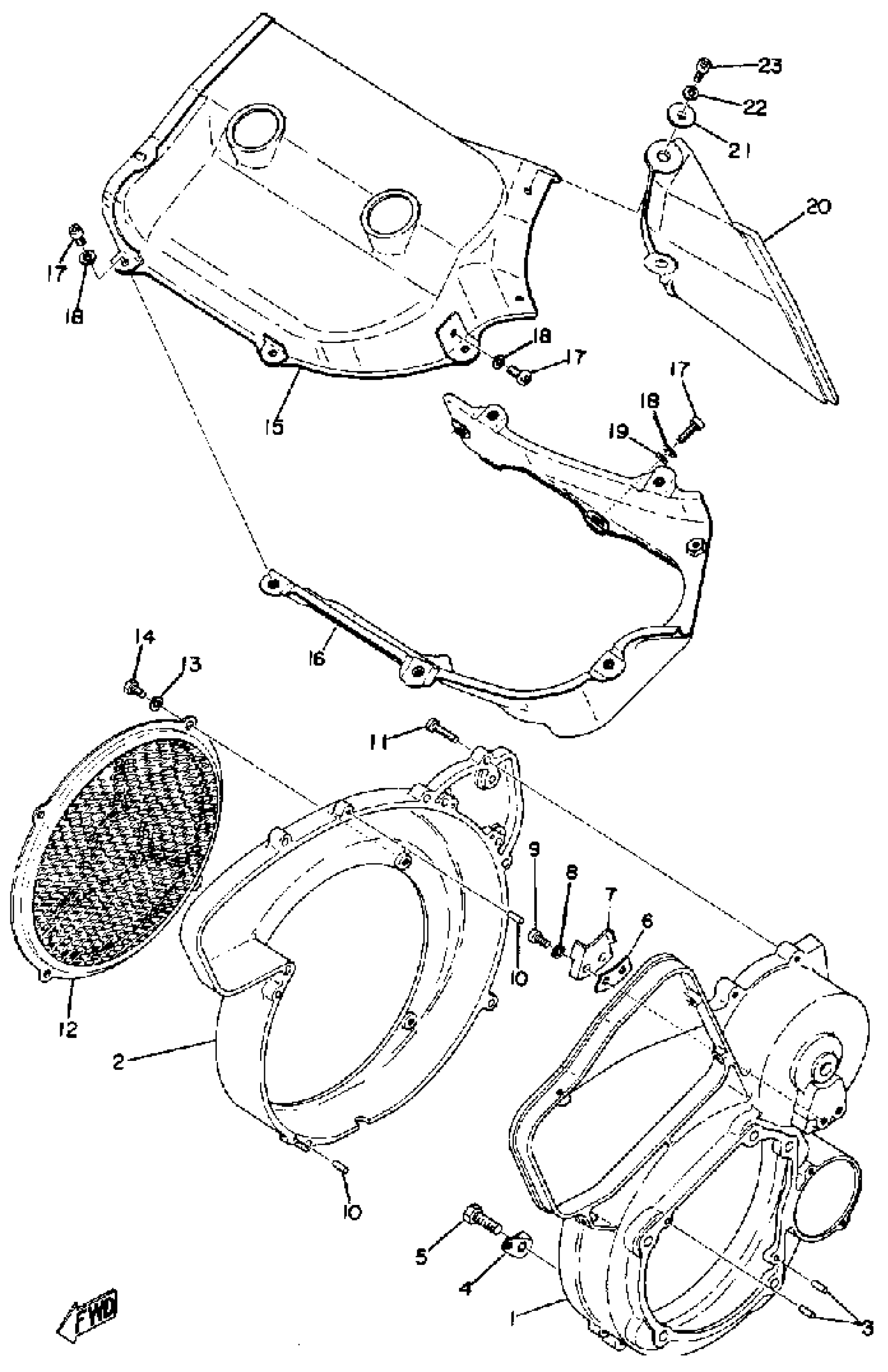

Yamaha EW643 1972 FAN CASE - AIR SHROUD Diagram

CASE, FAN

CASE, FAN 2

PIN,DOWEL (137)

WASHER, LOCK

BOLT (682)

SPACER 2

STOPPER

WASHER, SPRING

SCREW, PAN

PIN,DOWEL (137)

SCREW, PAN HEAD (76T)

COVER, MAGNETO

WASHER, SPRING

BOLT(3JP)

AIR SHROUD, CYLINDER 1

AIR SHROUD, CYLINDER 2

SCREW, PAN

WASHER, SPRING

WASHER(6TA)

DUCT

COLLAR

WASHER, SPRING

SCREW, PAN
