1973 Yamaha EW433C Shroud Diagram

← All diagrams

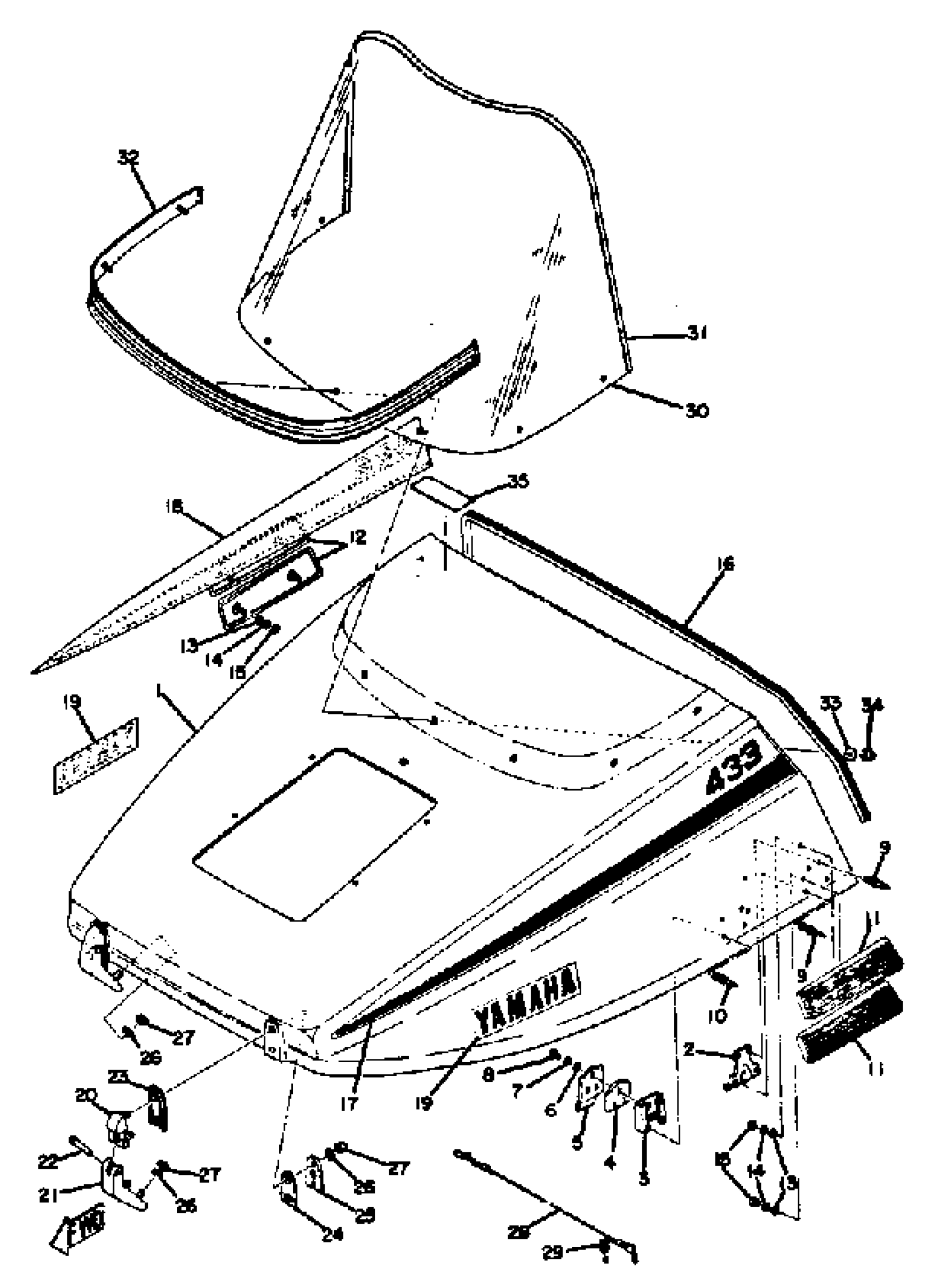

Find the part on the Shroud diagram for your 1973 Yamaha EW433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha EW433C Shroud Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

838-77111-00-00

1
Out of stock

2

. BODY, LATCH 1

806-77171-00-00

1
Out of stock

3

CLAMP 4

(811-77138-00-00)

1
Out of stock

4

WASHER 2

810-77179-00-00

1
Out of stock

5

CLAMP 2

810-77136-00-00

1
Out of stock

6

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

BOLT, HEXAGON

97013-05010-00

1

$0.85

In stock

9

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

10

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

11

LOUVER 1

(838-77131-00-00)

1
Out of stock

12

LOUVER 2

838-77132-00-00

1
Out of stock

13

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

16

TRIM 2

(838-77166-00-00)

1
Out of stock

17

ORNAMENT 1

838-77163-00-00

1
Out of stock

18

ORNAMENT 2

838-77164-00-00

1
Out of stock

19

EMBLEM 7

(838-77357-00-00)

1
Out of stock

20

HINGE 1

(806-77145-00-00)

1
Out of stock

21

HINGE 3

806-77147-00-00

1
Out of stock

22

PIN (806-77157-00)

90243-05002-00

1
Out of stock

23

DAMPER 1

(806-77198-00-00)

1
Out of stock

24

DAMPER 2

810-77199-00-00

1
Out of stock

25

PLATE, BACK UP 1

810-77153-00-00

1
Out of stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

28

STOPPER, SHROUD

(838-77118-00-00)

1
Out of stock

29

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

30

WINDSHIELD

(838-77210-01-00)

1
Out of stock

31

TOOL

UNA-VAILA-BL-EI

1
Out of stock

32

TRIM LOWER ASSEMBLY

(838-77220-00-00)

1
Out of stock

33

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

34

NUT, NYLON

95707-05300-00

—

$2.74

In stock

35

LABEL, SAFETY

288-21659-00-00

1
Out of stock

35

WINDSHEALD COMP

(850-77210-01-00)

1
Out of stock
