1973 Yamaha EW433C OIL Pump Diagram

← All diagrams

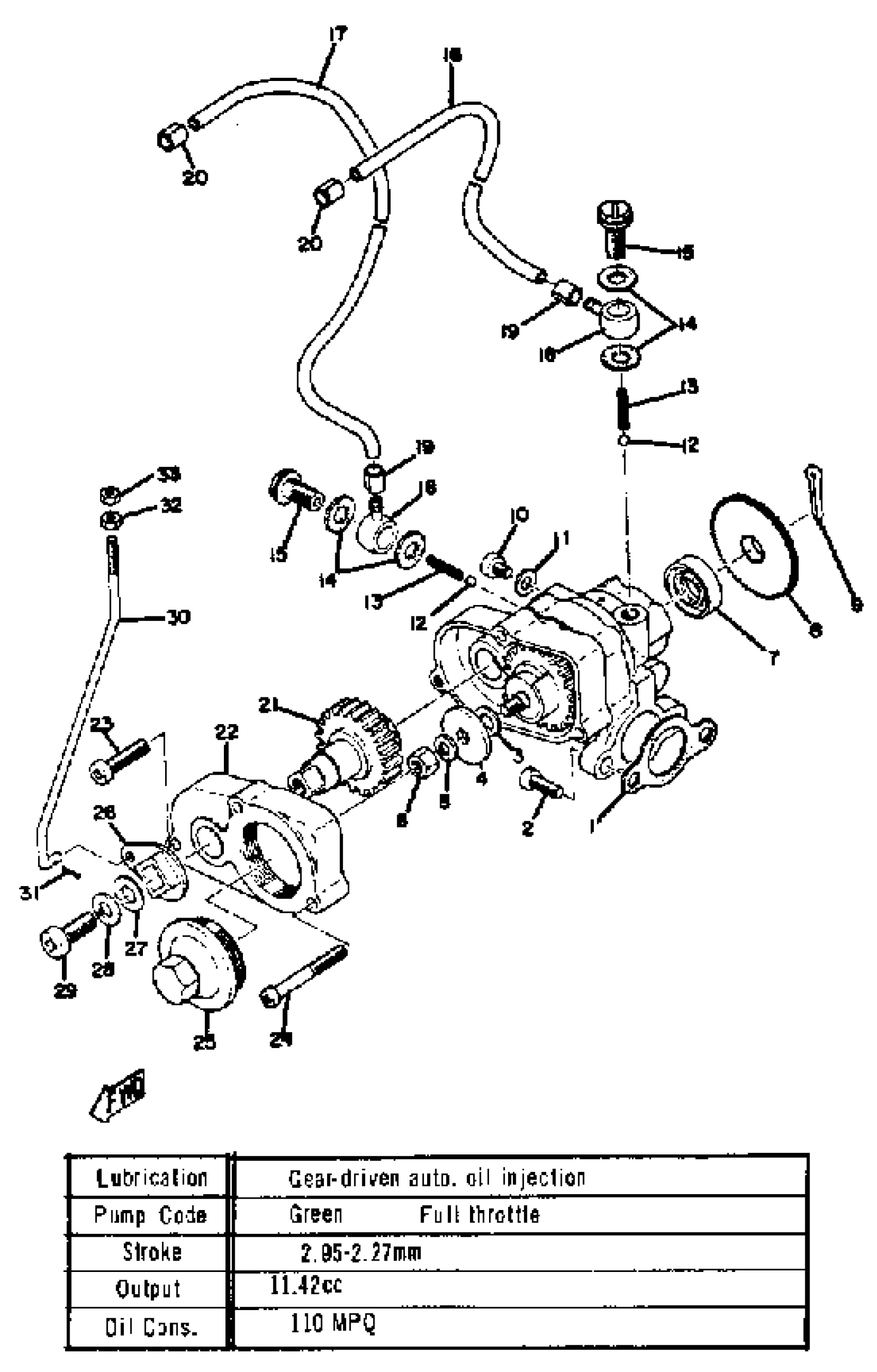

Find the part on the OIL Pump diagram for your 1973 Yamaha EW433C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha EW433C OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

1

OIL PUMP ASSEMBLY

(824-13101-00-00)

1
Out of stock

2

SCREW, PAN HEAD

98503-06015-00

1
Out of stock

3

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

3

SHIM, PLUNGER

(137-13137-00-30)

1
Out of stock

4

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

7

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

8

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

9

. PIN, COTTER

91401-12018-00

1
Out of stock

10

SCREW, BIND

98980-04008-00

1

$3.26

In stock

11

GASKET 137131870000

90430-04004-00

1
Out of stock

12

BALL

93505-32002-00

1

$2.22

In stock

13

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

14

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

15

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

16

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

17

HOSE (L200)

90445-05N13-00

—

$6.17

In stock

18

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

19

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

20

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

21

GEAR, PUMP CONTROL

(838-13154-01-00)

1
Out of stock

22

COVER, AJST PULLEY

(821-13146-00-00)

1
Out of stock

23

SCREW, PAN HEAD(MK5)

98507-04035-00

—

$6.69

In stock

24

SCREW, PAN HEAD

98517-04020-00

—

$6.18

In stock

25

CAP, PUMP CASE

(807-13143-00-00)

1
Out of stock

26

LEVER, PUMP CONTROL

(812-13156-00-00)

1
Out of stock

27

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

SCREW, PAN

98507-06014-00

—

$6.18

In stock

30

ROD, PUMP CONTROL

824-13157-00-00

1
Out of stock

31

. PIN, COTTER

91490-12012-00

1

$2.77

In stock

32

NUT, HEXAGON (807-13139-00)

90170-03008-00

1
Out of stock

33

NUT, SELF-LOCKING (838-13139-00)

90185-03007-00

1
Out of stock
