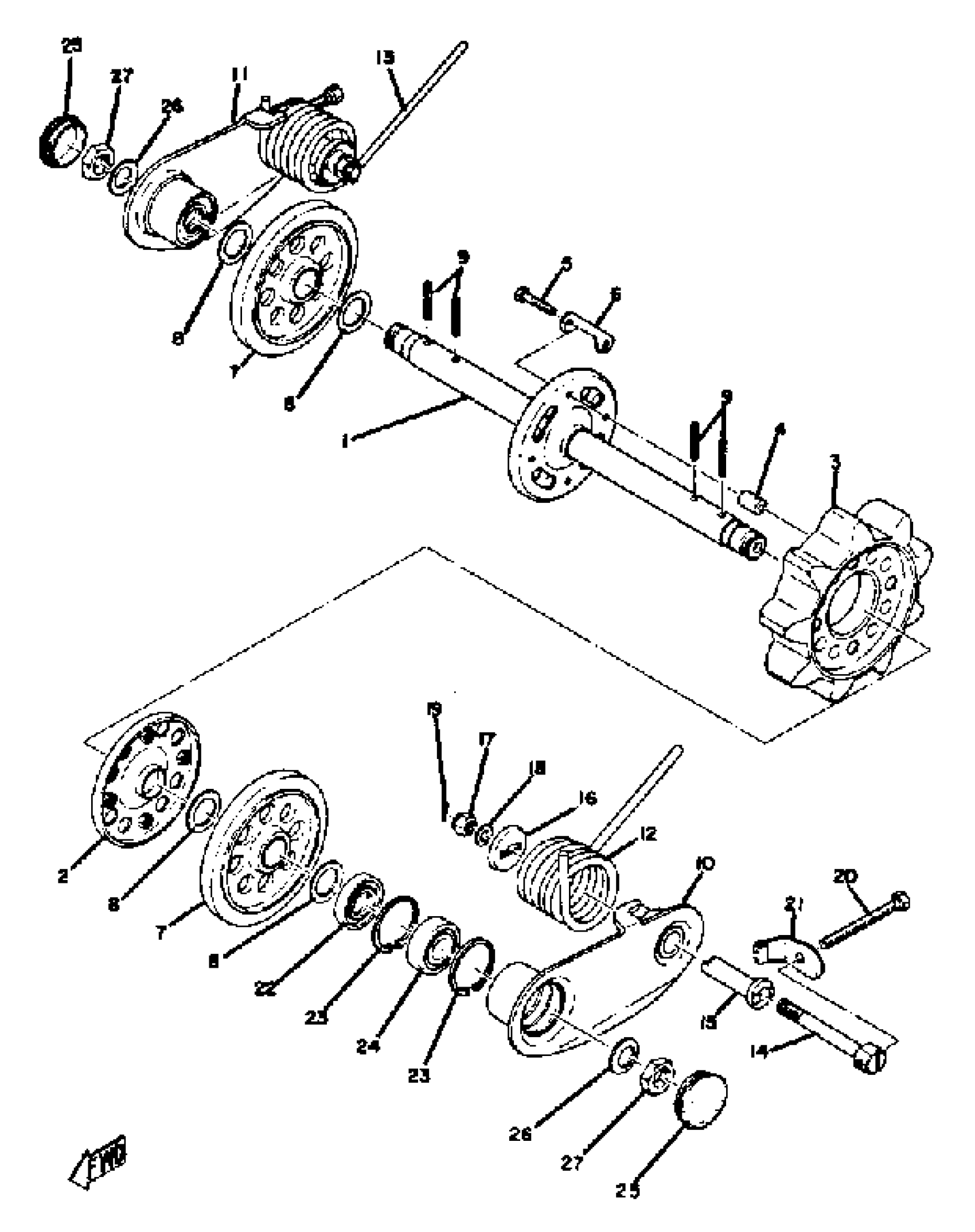

Yamaha EW433C 1973 REAR AXLE Diagram

#

Description
Price

1

REAR AXLE

826-47520-00-00

Unavailable

2

RIM, SPROCKET WHL 2

(810-47522-00-00)

Unavailable

3

WHEEL, SPROCKET 2

810-47532-00-00

Unavailable

4

COLLAR

(90387-06021-00)

Unavailable

5

BOLT(3RV)

97014-06035-00

$2.75

6

WASHER, LOCK

90215-06100-00

Unavailable

7

GUIDE WHEEL

810-47530-00-00

Unavailable

8

WASHER, PLATE

90201-25499-00

Unavailable

9

PIN, SPRING

91609-60036-00

Unavailable

10

ARM, REAR PIVOT 1

(810-47361-00-00)

Unavailable

11

ARM, REAR PIVOT 2

810-47362-00-00

Unavailable

12

SPRING, TORSION

90508-72114-00

Unavailable

13

SPRING, TORSION (812-47364-00)

90508-72084-00

Unavailable

14

SCREW, SPEC''L SHAPE

90149-08022-00

Unavailable

15

COLLAR

810-47369-00-00

Unavailable

16

WASHER, SPEC''L SHAP

90209-08067-00

Unavailable

17

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

18

WASHER, PLAIN

92990-08200-00

Unavailable

19

PIN, COTTER

91490-30030-00

Unavailable

20

BOLT, DOME HEAD (841-47373-00)

90106-08050-00

Unavailable

21

WASHER, LOCK

90215-08069-00

Unavailable

22

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

23

CIRCLIP, R-TYPE

93420-44029-00

Unavailable

24

BEARING

93306-00412-00

Unavailable

25

CAP (NOT AVAIL)

810-47552-00-00

Unavailable

26

WASHER 810475810000

90208-22001-00

Unavailable

27

NUT (821-47579-00)

90170-22094-00

Unavailable
