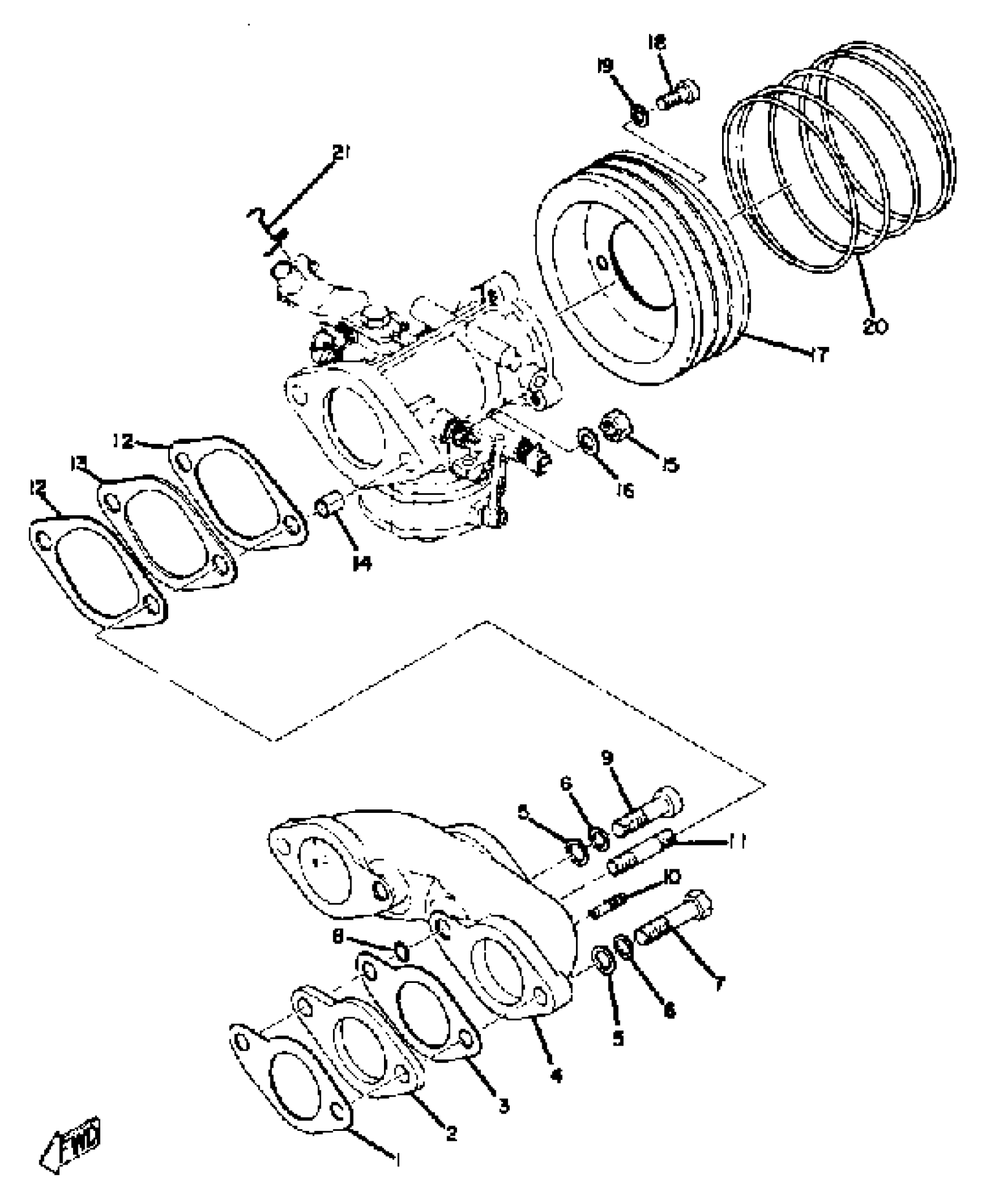

Yamaha EW433C 1973 INTAKE Diagram

#

Description
Price

1

GASKET,MANIFOLD

811-13556-09-00

Unavailable

2

MANIFOLD, INTAKE

(8F1-13555-00-00)

Unavailable

3

GASKET

811-13563-09-00

Unavailable

4

JOINT, CARBURETOR

(826-13565-00-00)

Unavailable

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

7

BOLT

97013-08035-00

$5.60

8

O-RING (11M)

93210-07540-00

$7.49

9

BOLT, SOCKET

91317-08030-00

$8.49

10

NOZZLE

824-13552-00-00

Unavailable

11

BOLT, STUD

(90116-08045-00)

Unavailable

12

GASKET

810-13566-09-00

Unavailable

13

JOINT, CARBURETOR

824-13585-00-00

Unavailable

14

SPACER

(810-13576-00-00)

Unavailable

15

. NUT

95380-08700-00

Unavailable

16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

17

PLATE

838-14477-01-00

Unavailable

18

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

SPRING, COMPRESSION

(90501-35157-00)

Unavailable

21

CLAMP, THROTTLE

822-41222-00-00

Unavailable
