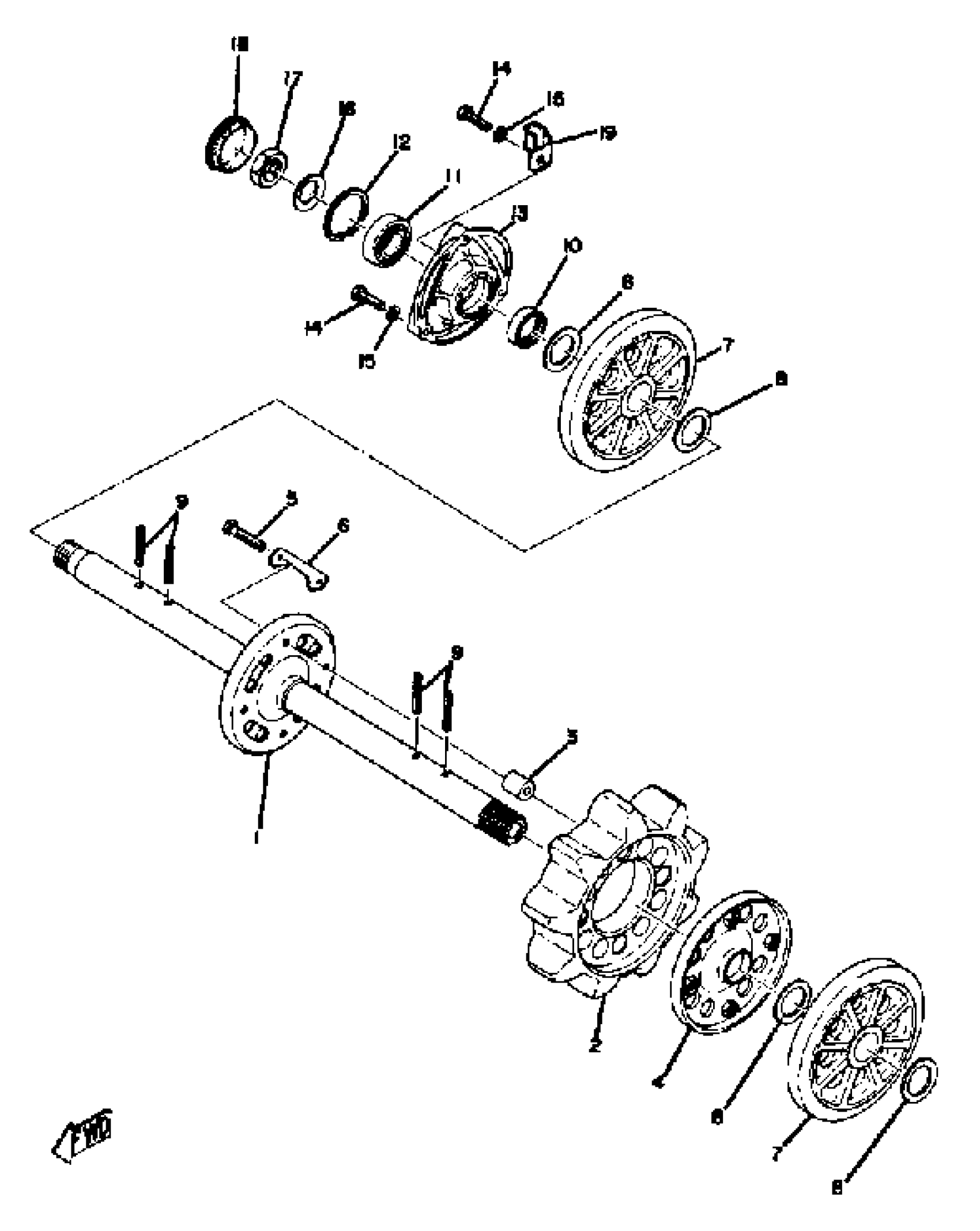

Yamaha EW433C 1973 FRONT AXLE Diagram

#

Description
Price

1

FRONT AXLE

(826-47510-00-00)

Unavailable

2

WHEEL, SPROCKET 2

810-47532-00-00

Unavailable

3

COLLAR

(90387-06021-00)

Unavailable

4

RIM, SPROCKET WHL 2

(810-47522-00-00)

Unavailable

5

BOLT(3RV)

97014-06035-00

$2.75

6

WASHER, LOCK

90215-06100-00

Unavailable

7

GUIDE WHEEL

810-47530-00-00

Unavailable

8

WASHER, PLATE

90201-25499-00

Unavailable

9

PIN, SPRING

91609-60036-00

Unavailable

10

OIL SEAL,SD-TYPE

93102-25332-00

Unavailable

11

BEARING

93306-00412-00

Unavailable

12

CIRCLIP, R-TYPE

93420-44029-00

Unavailable

13

HOUSING, FRONT AXLE

810-47551-00-00

Unavailable

14

BOLT, HEXAGON

97017-06025-00

$4.24

15

WASHER, SPRING

92995-06100-00

Unavailable

16

WASHER 810475810000

90208-22001-00

Unavailable

17

NUT (821-47579-00)

90170-22094-00

Unavailable

18

CAP (NOT AVAIL)

810-47552-00-00

Unavailable

19

CLAMP

90465-06013-00

Unavailable
