TRACK DRIVE

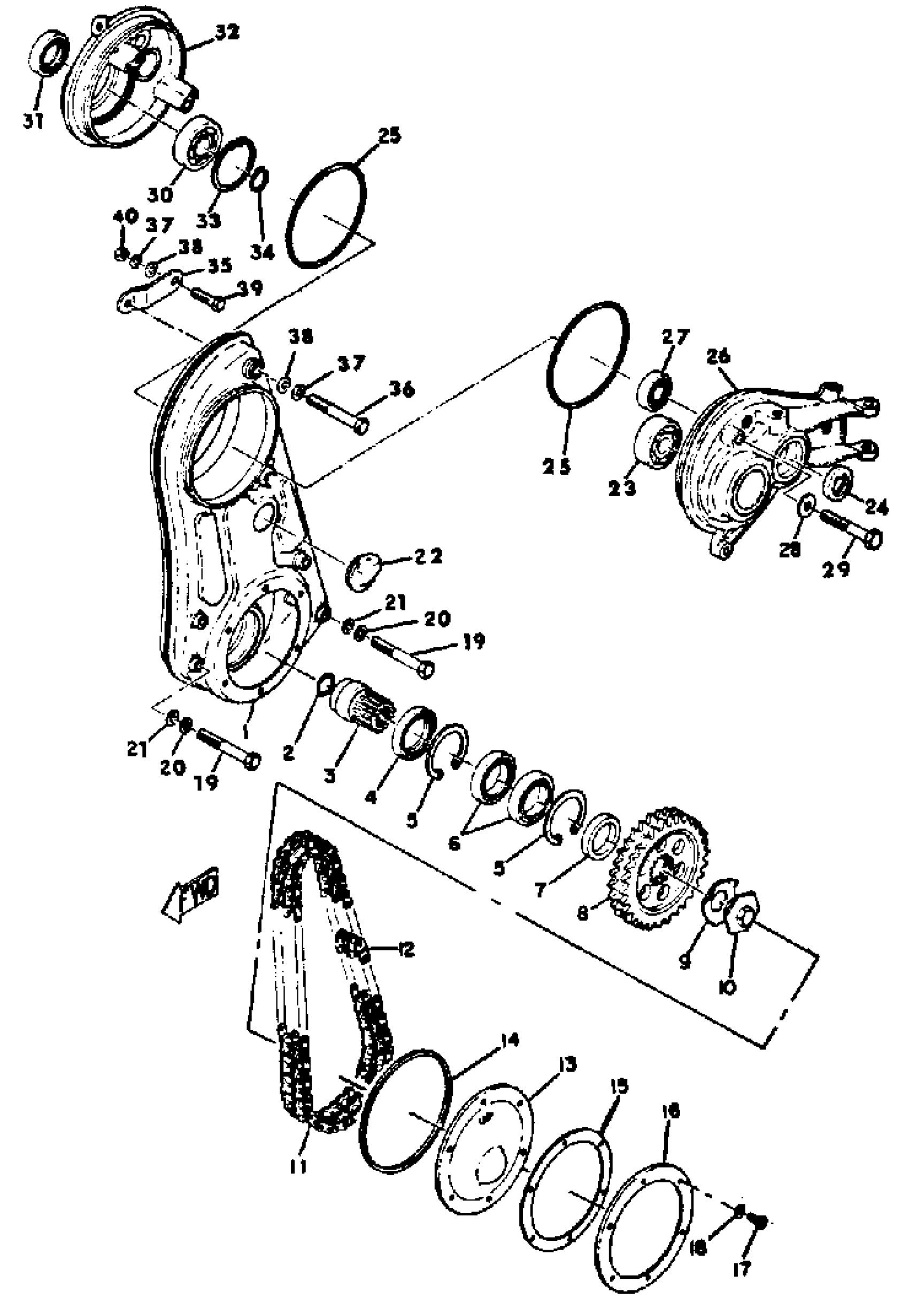

Yamaha EW433B 1972 TRACK DRIVE Diagram
#
1
HOUSING, CHAIN
(826-47541-00-00)
Unavailable
2
O-RING (437)
93210-24235-00
$7.49
3
JOURNAL 1
(810-47571-00-00)
Unavailable
4
OIL SEAL, SD-TYPE
93102-40080-00
Unavailable
5
CIRCLIP, R-TYPE
93420-55028-00
Unavailable
6
BEARING
93306-90702-00
Unavailable
7
COLLAR
90387-35205-00
Unavailable
8
SPROCKET, CHN DRVN
(802-47548-40-00)
Unavailable
8
SPROCKET, CHN DRVN
802-47548-50-00
Unavailable
8
SPROCKET, CHN DRVN
(802-47548-60-00)
Unavailable
9
SPRING, BELLEVILLE
821-47582-00-00
Unavailable
10
BOLT
90109-24203-00
Unavailable
11
CHAIN (DK425-2 62L)
94804-25062-00
Unavailable
11
CHAIN
(94804-25064-00)
Unavailable
12
. JOINT CHAIN
94904-25001-00
Unavailable
13
CAP, HOUSING
(821-47543-00-00)
Unavailable
14
RING, HOUSING
(806-47558-00-00)
Unavailable
15
GASKET
821-47544-00-00
Unavailable
16
PLATE
(821-47591-00-00)
Unavailable
17
SCREW
90143-05004-00
Unavailable
18
WASHER, SEAL
90210-05005-00
Unavailable
19
BOLT(6TC)
97027-08070-00
Unavailable
20
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
21
WASHER, PLAIN
92990-08200-00
Unavailable
22
CAP 2
(810-47559-00-00)
Unavailable
23
BRG,R-B 6303 47MM 115G NK
93306-30302-00
Unavailable
24
OIL SEAL (22X32X5-818)
93102-22087-00
Unavailable
25
O-RING
93211-13109-00
Unavailable
26
HOUSING, SEC SHAFT
826-47561-00-00
Unavailable
27
BRG,R-B 6203RS 40MM 63.3G KY
93306-20310-00
Unavailable
28
WASHER (821)
90210-08002-00
Unavailable
29
BOLT(6TC)
97027-08070-00
Unavailable
30
BEARING (5X5)
93306-20627-00
Unavailable
31
OIL SEAL, SD-TYPE
93102-35056-00
Unavailable
32
HOUSING, SEC SHAFT
826-47562-00-00
Unavailable
33
CIRCLIP(MF1)
99009-62500-00
Unavailable
34
CIRCLIP(4A6)
99009-30400-00
Unavailable
35
STAY 1
(826-47565-00-00)
Unavailable
36
BOLT(6TC)
97027-08070-00
Unavailable
37
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
38
WASHER, PLAIN
92990-08200-00
Unavailable
39
BOLT, HEXAGON
97013-08030-00
Unavailable
40
NUT(6L2)
95333-08600-00
Unavailable
