1972 Yamaha EW433B Electrical Diagram

← All diagrams

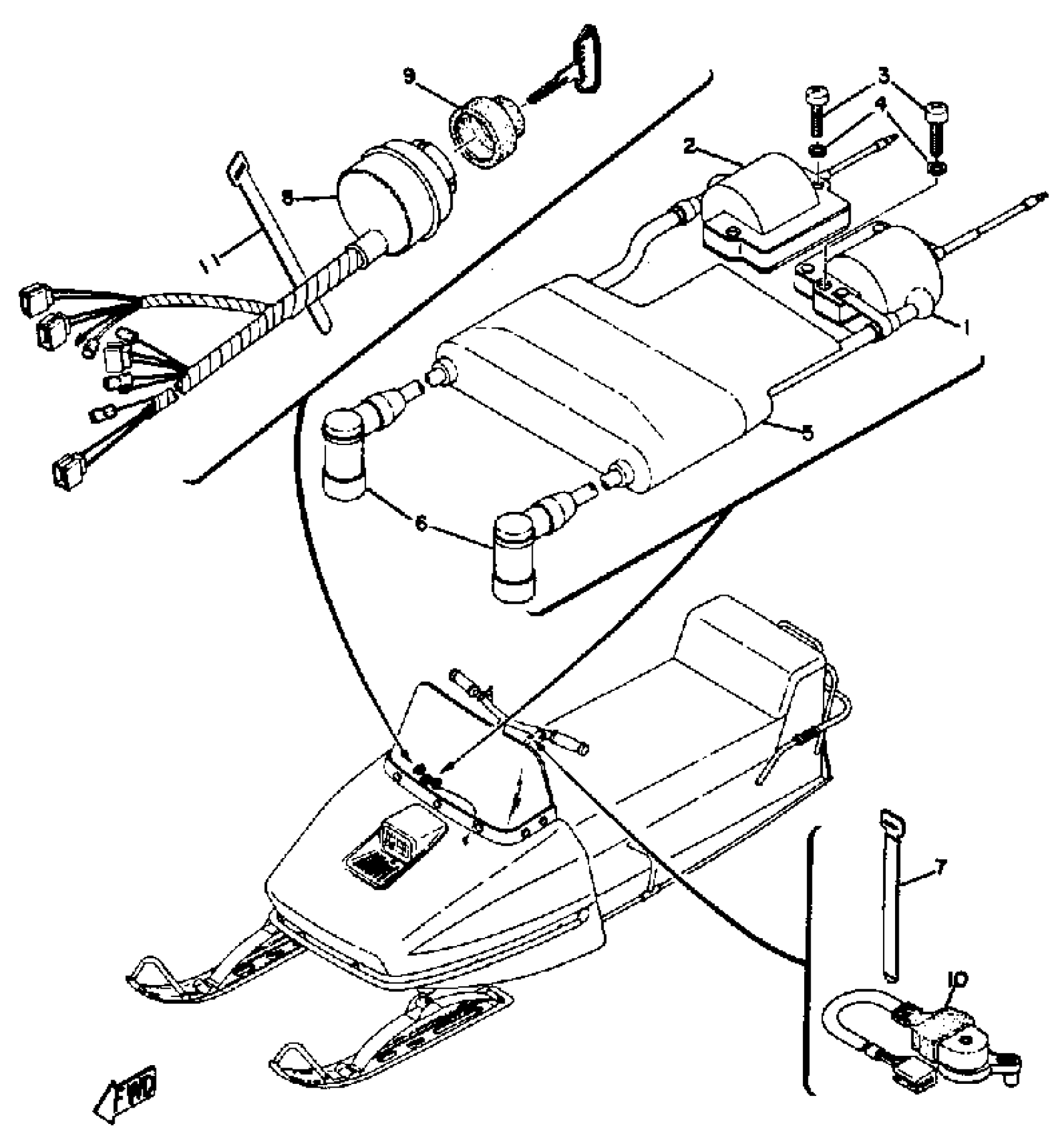

Find the part on the Electrical diagram for your 1972 Yamaha EW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW433B Electrical Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSEMBLY

(810-82310-40-00)

1
Out of stock

2

IGNITION COIL ASSEMBLY

(810-82320-41-00)

1
Out of stock

3

SCREW, PAN

98517-06020-00

1
Out of stock

4

WASHER, SPRING

92907-06100-00

1
Out of stock

5

COVER, IGNITN COIL

(810-82314-00-00)

1
Out of stock

6

PLUG CAP ASSY

56J-82370-00-00

1

$56.63

In stock

7

BAND, SWITCH CORD

437-83936-01-00

1

$4.63

In stock

8

MAIN SWITCH ASSEMBLY

(821-82508-20-00)

1
Out of stock

9

COLLAR, MAIN SWITCH

806-82516-00-00

1
Out of stock

10

STOP SWITCH ASSEMBLY

822-82530-00-00

1
Out of stock

11

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock
