1972 Yamaha EW433B Electric Starter Unit Diagram

← All diagrams

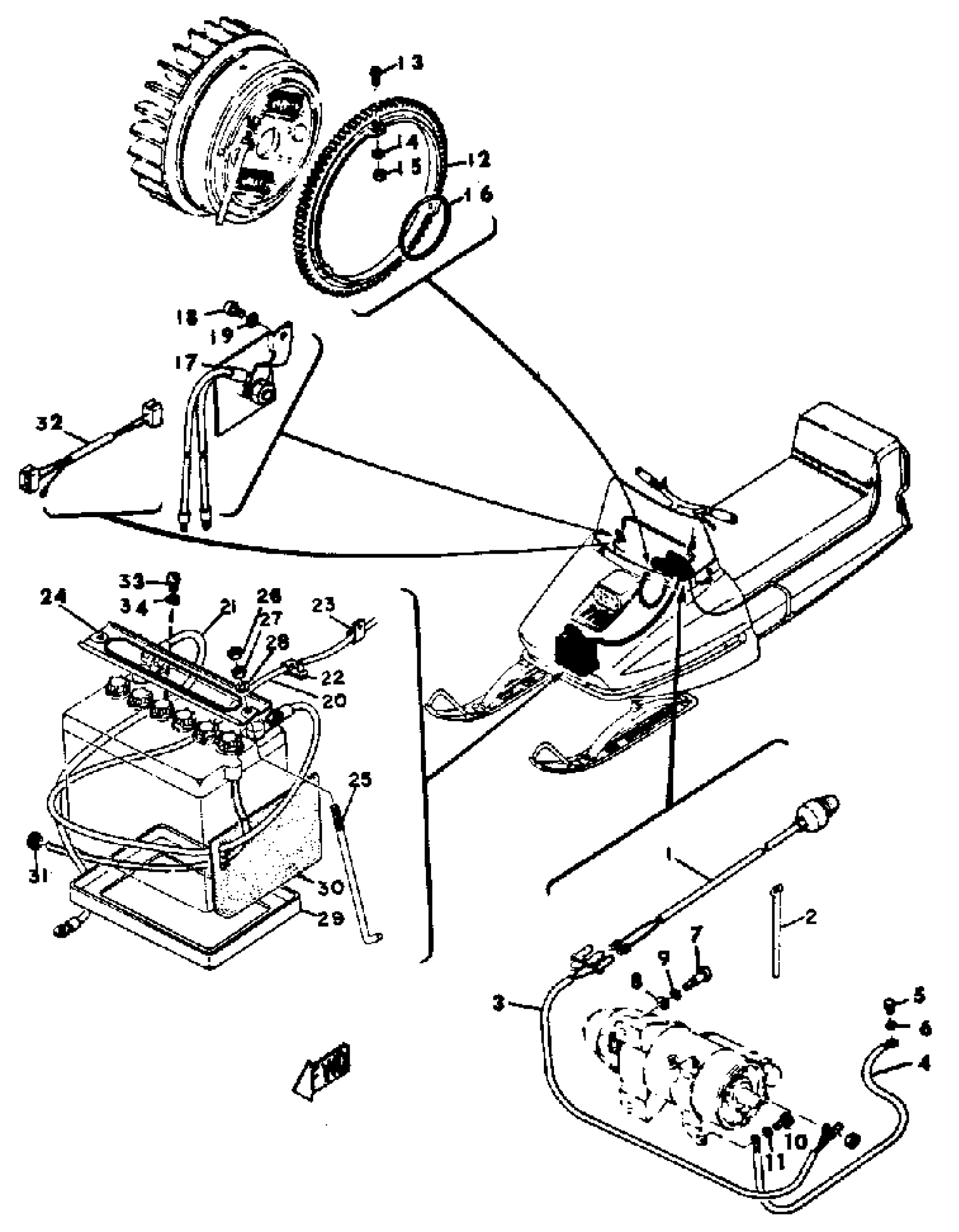

Find the part on the Electric Starter Unit diagram for your 1972 Yamaha EW433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha EW433B Electric Starter Unit Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STARTER SWITCH ASSEMBLY

(811-83970-00-00)

1
Out of stock

2

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock

3

WIRE, LEAD 2

(822-82127-00-00)

1
Out of stock

4

WIRE, LEAD

(819-82117-00-00)

1
Out of stock

5

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

SCREW, SPEC''L SHAPE

90149-08056-00

1
Out of stock

8

WASHER, PLATE

(90201-09116-00)

1
Out of stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

SCREW PAN HEAD

98580-08020-00

—

$3.14

In stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

GEAR, RING

(811-81891-00-00)

1
Out of stock

13

SCREW, SPEC''L SHAPE

(90149-06061-00)

1
Out of stock

14

WASHER, SPECIAL

(811-81894-00-00)

1
Out of stock

15

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

16

O-RING

(93210-61117-00)

1
Out of stock

17

RECTIFIER ASSEMBLY

(812-81970-41-00)

1
Out of stock

17

RECTIFIER ASSEMBLY

(827-81970-40-00)

1
Out of stock

18

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

WIRE, PLUS LEAD

824-82115-00-00

1
Out of stock

21

WIRE, MINUS LEAD

822-82116-00-00

1
Out of stock

22

BAND

(822-82591-00-00)

1
Out of stock

23

CLAMP

90465-06013-00

1
Out of stock

24

PLATE, BATT FITTING

(822-82136-00-00)

1
Out of stock

25

SCREW, SPEC''L SHAPE

(90149-06024-00)

1
Out of stock

26

NUT(650)

95380-06700-00

—

$6.17

In stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

28

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

29

SEAL, BATTERY

822-82118-00-00

1
Out of stock

30

SEAT, BATTERY

807-82122-00-00

1
Out of stock

30

SEAT, BATTERY

(807-82122-01-00)

1
Out of stock

31

GROMMET 152845180000

90480-12013-00

—
Out of stock

32

WIRE, LEAD

(827-82531-00-00)

1
Out of stock

33

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

34

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
