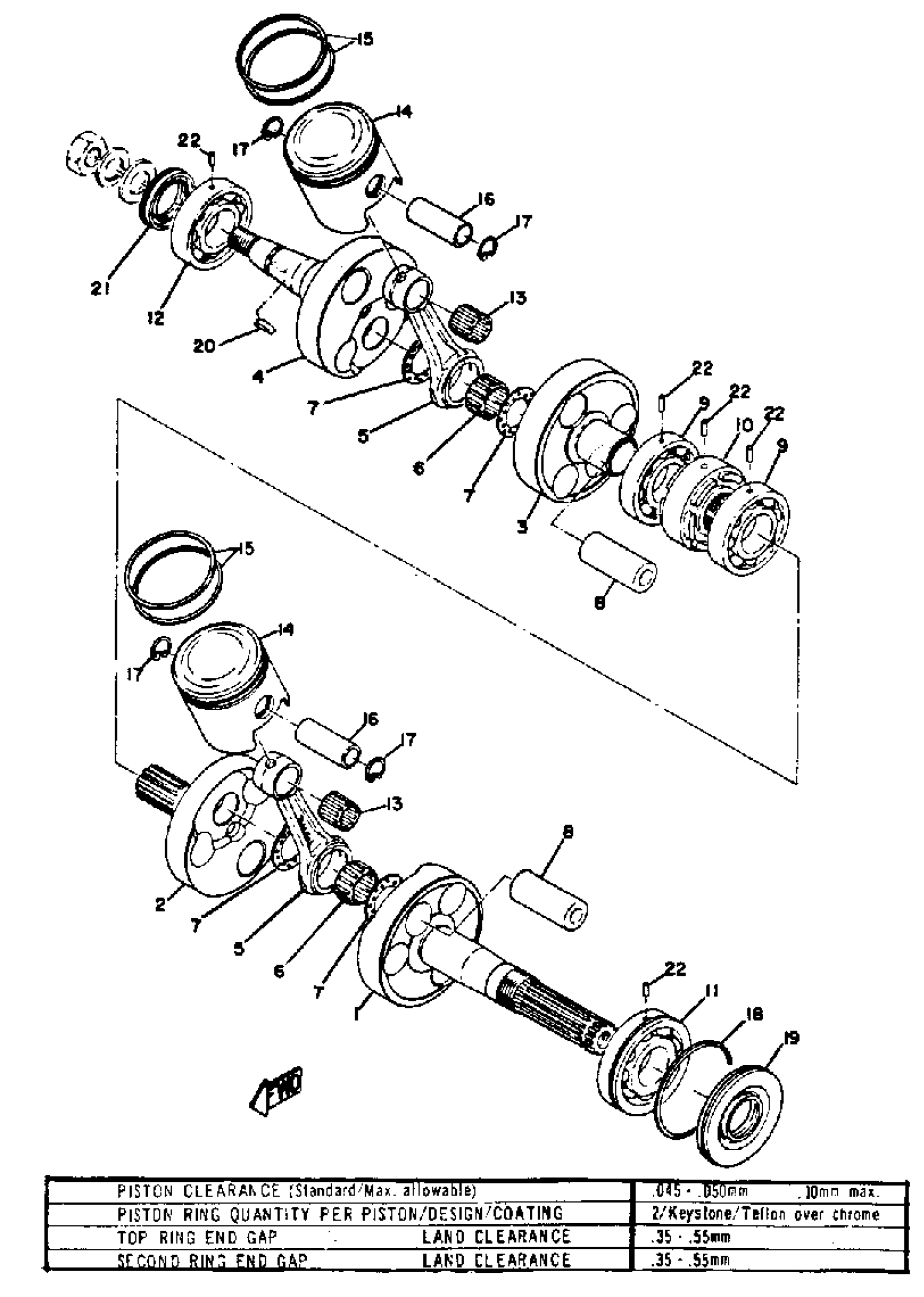

Yamaha EW433B 1972 CRANK - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

(811-11400-00-00)

Unavailable

1

CRANK 1

(811-11412-00-00)

Unavailable

1

CRANKSHAFT ASSEMBLY

(821-11400-00-00)

Unavailable

1

CRANK 1

(821-11412-00-00)

Unavailable

1

. PIN, CRANK 1

857-11681-00-00

Unavailable

2

CRANK 2

(811-11422-00-00)

Unavailable

2

CRANK 2

(821-11422-01-00)

Unavailable

2

BUSH, CRANK PIN

(822-11682-00-00)

Unavailable

3

CRANK 3

(807-11432-00-00)

Unavailable

3

CRANK 3

(821-11432-01-00)

Unavailable

4

CRANK 4

(807-11442-00-00)

Unavailable

4

CRANK 4

(821-11442-00-00)

Unavailable

5

. ROD, CONNECTING (838-11651-00)

8A7-11651-00-00

Unavailable

6

BEARING

93310-424E8-00

Unavailable

7

WASHER (152-11685-00)

90209-24073-00

$14.99

8

. PIN, CRANK 1

168-11681-00-00

Unavailable

9

BEARING(8V0)

93306-20633-00

Unavailable

10

. SEAL, LABYRINTH 1

811-11515-00-00

Unavailable

11

. BEARING

93306-30603-00

Unavailable

12

BEARING(8V0)

93306-20633-00

Unavailable

13

BRG,CYL-CAL ROLLER 15.6G KY

93310-218A6-00

Unavailable

14

PISTON STD

819-11631-01-96

Unavailable

14

PISTON 1 O/S 0.25 (819-11635-00)

819-11635-01-00

Unavailable

14

PISTON 2 O/S 0.50 (819-11636-00)

819-11636-01-00

Unavailable

15

PISTON RINGSET STD

818-11601-00-00

Unavailable

15

RING, PISTON 1ST

(818-11611-10-00)

Unavailable

15

RING, PISTON 2ND

(818-11611-20-00)

Unavailable

16

PIN, PISTON

818-11633-00-00

Unavailable

17

CLIP 6041163400

93450-20026-00

Unavailable

18

CIRCLIP, OUTER

93440-78011-00

Unavailable

19

OIL SEAL(83R)

93103-32156-00

Unavailable

20

KEY, WOODRUFF

90280-05001-00

Unavailable

21

OIL SEAL(83R)

93103-32156-00

Unavailable

22

PIN,DOWEL (168)

93604-12037-00

Unavailable
