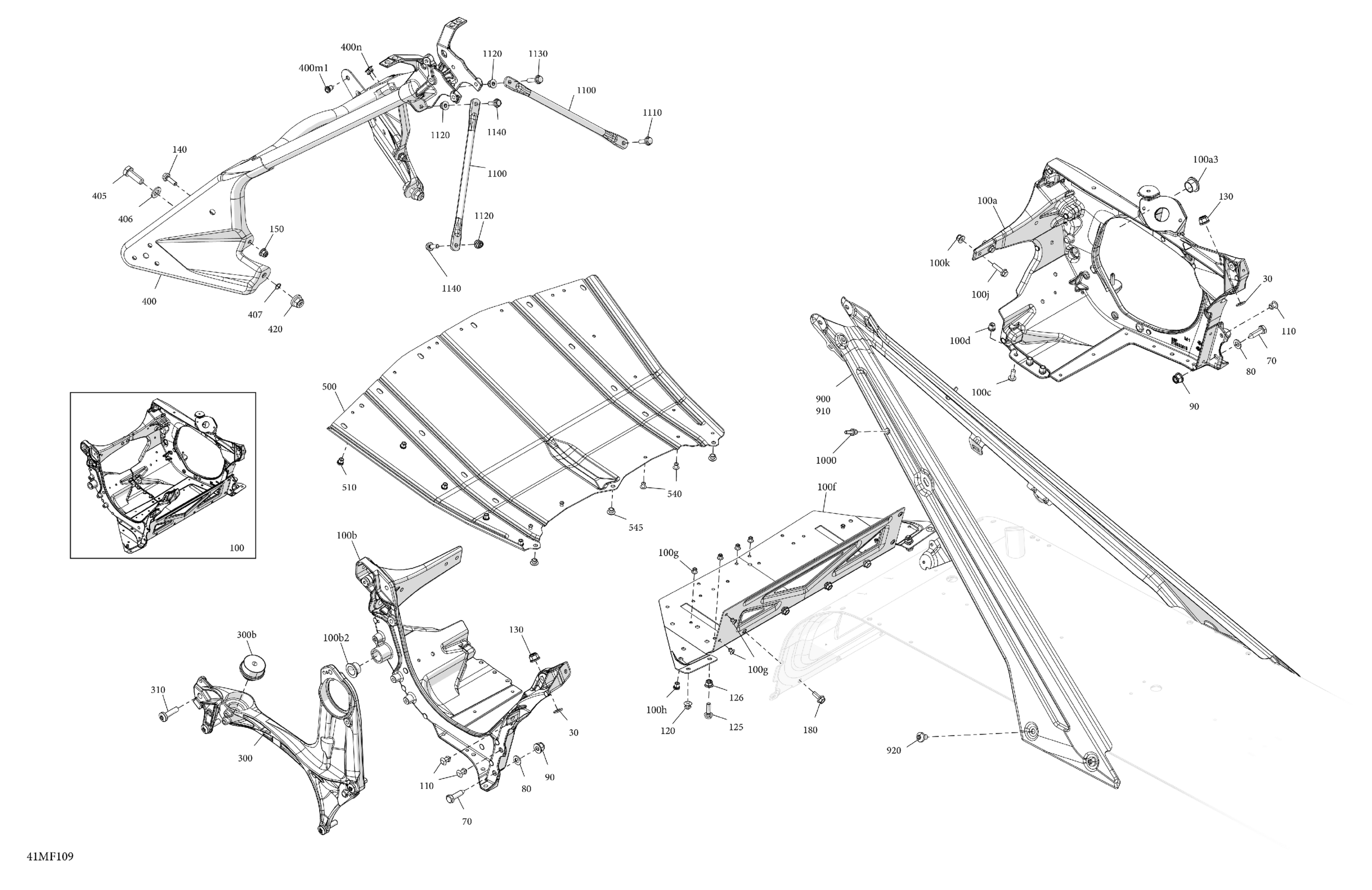

Ski-Doo Europe - TUNDRA - LE - 600 EFI - GDTB - Deep Black - 16X154X1.5CH Track, 2026 Frame - System - Front Section Diagram

#

Description
Price

30

Conical Spring Washer M8

250200146

$1.49

70

Hex Screw M8 X 30

250000942

$1.49

80

Flat Washer 8 mm

234081410

$1.49

90

Hex. Flange Elastic Nut M8

233281414

$1.49

100

Engine Chassis Module Ass'y | Includes 100 to 100k

518334693

$429.99

100a

RH Side Member Ass'y | Includes 100a to 100a3

518334521

$224.99

100a3

Leg Cushion

505073317

$9.22

100b

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

100b2

Leg Cushion

505073317

$9.22

100c

Rivet Magna-Grip 6,4 X 50,8

293150148

$1.49

100d

Collar Huck Magna-Grip 6.4

293150149

$1.49

100f

Bottom Plate

518332716

$37.99

100g

Avex Rivet

390909100

$1.49

100h

Insert M5 X 0.8

293450268

$2.09

100j

Hex. Flange Screw M6 X 20

207662046

$2.19

100k

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

110

Rivet Ornit 6,5 X 16.5

293150267

$2.49

120

Rivet Ornit 6,5 X 12.5

293150265

$2.49

125

Hex. Flange Screw M6 X 20

207662046

$2.19

126

Elastic Flange Nut M6 X 1.0

233261416

$2.19

130

Hex. Flange Elastic Nut M8

233281414

$1.49

140

Hex. Flange Screw M6 X 20

207662046

$2.19

150

Elastic Flange Nut M6 X 1.0

233261416

$2.19

180

Hex. Flange Screw M6 X 16

207661646

$1.49

300

LH Side Member Ass'y | Includes 300 to 300b

518333783

$294.99

300b

Vibration Damper

512061516

$62.99

310

Screw-Pan HD.Torx M8X30

250001060

$1.49

400

Chassis Suspension Module | Includes 400 to 400n

518335307

$369.99

400m1

Insert M5 X 0.8

293450268

$2.09

400n

Rivet Ornit 4,8 X 11,3

293150312

$1.49

405

Screw Hex M10 X 30

250001148

$1.69

406

Flat Washer 10 mm

234001410

$1.49

407

O-Ring

505072448

$2.39

420

Hex. Flange Elastic Nut M10

250100165

$1.49

500

Front Bottom Plate

518331615

$32.99

510

Insert M5 X 0.8

293450268

$2.09

540

Avex Rivet

390909100

$1.49

545

Rivet Ornit 6,5 X 12.5

293150265

$2.49

900

Deep Black, LH Rear Diagonal Cross Member

518336929

$119.99

910

Deep Black, RH Rear Diagonal Cross Member

518336930

$119.99

920

Pan Head Torx Screw M8 X 12

250000887

$1.99

1000

Insert M5 - 0.8

293450267

$4.59

1100

Upper Colomn Support

518329974

$22.49

1110

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.99

1120

Elastic Flange Nut M6 X 1.0

233261416

$2.19

1130

Hex. Flange Screw M6 X 25

207662556

$4.49

1140

Hex. Flange Screw M6 X 20

207662046

$2.19
