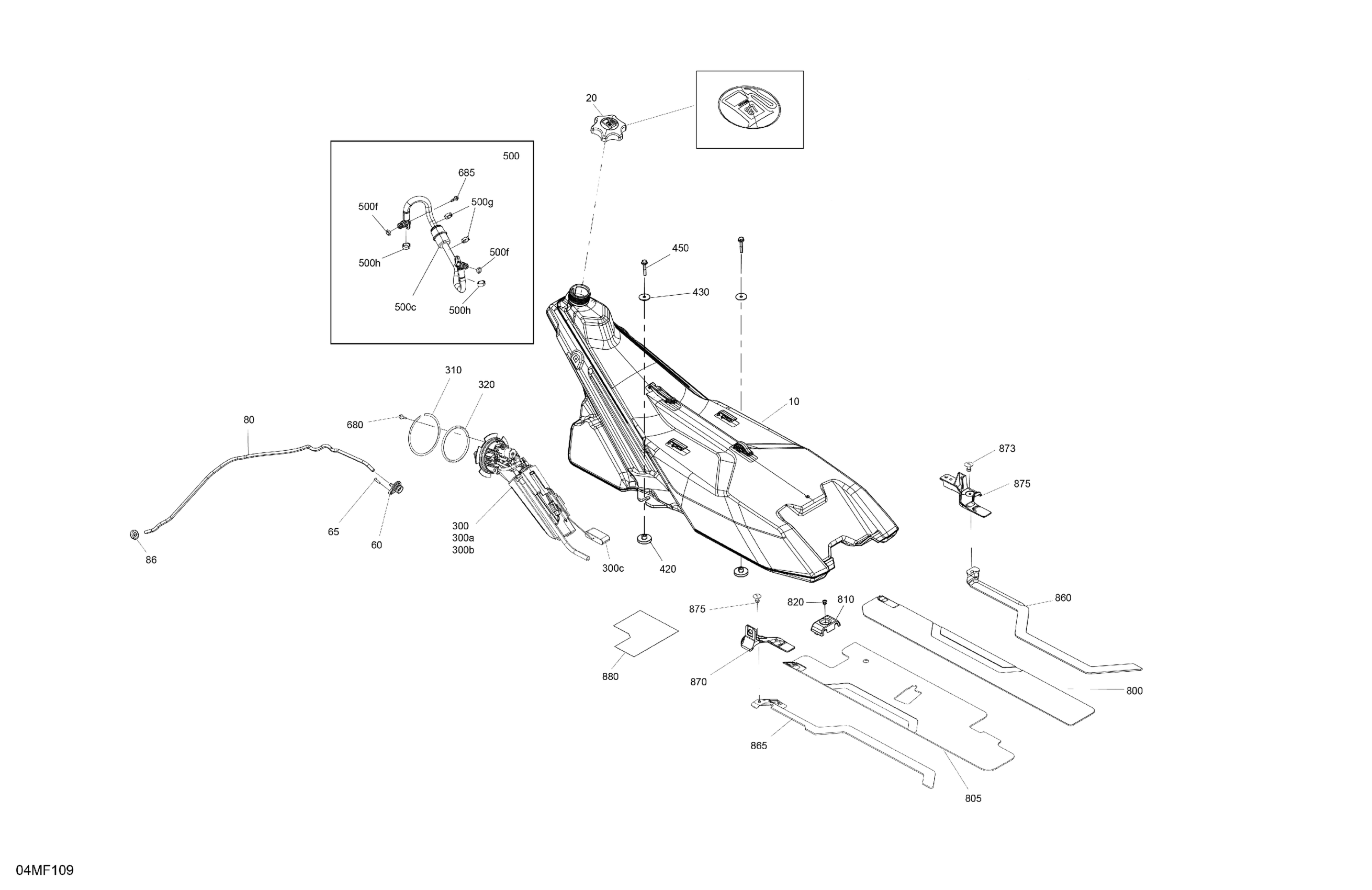

Ski-Doo Europe - TUNDRA - LE - 600 EFI - GDTB - Deep Black - 16X154X1.5CH Track, 2026 Engine - Fuel Diagram

Description

Price

Fuel Tank

513034245

$314.90

Fuel Tank Cap

513034160

Unavailable

Check Valve

513033849

$37.99

Truss Torx Screw K40 X 16

250000918

$2.19

Polyurethane Hose 10000Mm Long

219704410

$57.99

Grommet

705003264

$4.09

300

Fuel Pump Ass'y | Includes 300 to 300c

513034080

$249.97

300a

Canister

415130507

$87.99

300b

Filter

415130508

$41.49

300c

Fuel Level Sensor

415130726

$149.99

310

Circlip

513034097

$14.49

320

O-Ring

513033862

$19.49

420

Bushing

513034085

$7.25

430

Washer | Not Shown

503193995

$4.69

450

Hex. Flange Screw M6 X 35

250001255

$2.19

500

Hose Ass'y | Includes 500 to 500h

513034254

$75.99

500c

Fuel Filter

513034047

$21.99

500f

O-Ring

513033668

$11.49

500g

Crimp Clamp, 15.3-706R

293650047

$3.39

500h

Crimp Clamp

293650053

$3.19

680

Hex. Flange Screw M5 X 16

250000911

$1.49

685

Hex. Flange Screw M5 X 16

250000911

$1.49

800

Insulated Foam

513033913

$5.69

805

LH Foam

513034165

$16.99

810

Guide

513034155

$2.39

820

Pop Rivet 3/16 X ,425

293150293

$1.49

860

Foam

513033915

$19.49

865

Foam

513033916

$4.79

870

LH Trim

513034242

$8.49

873

RH Trim

513034243

$8.49

875

Black, Pop Rivet 3/16 X ,550

293150292

$1.49

880

Fuel Tank Protection Decal

516009818

$10.99
