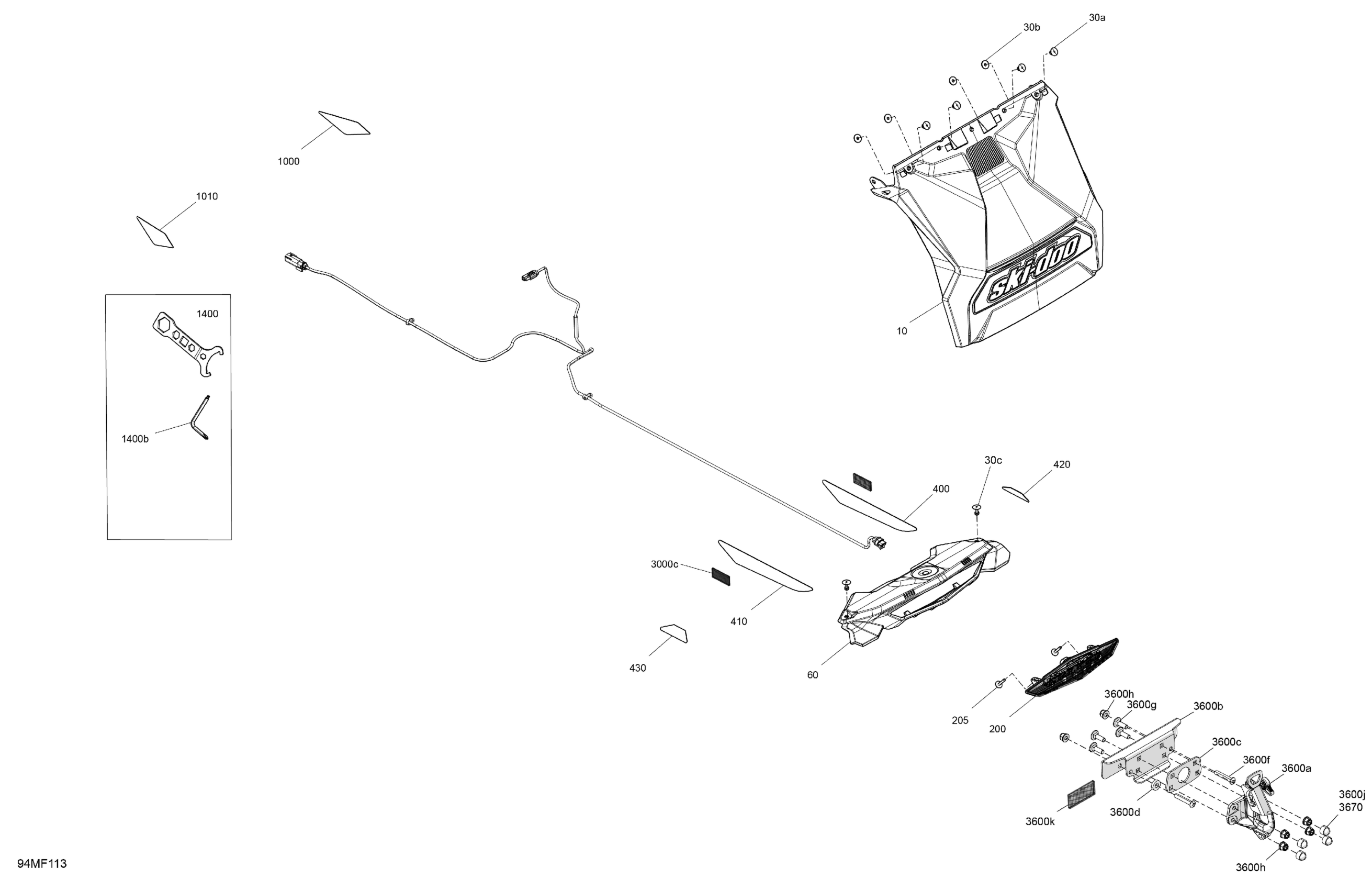

Ski-Doo Europe - TUNDRA - LE - 600 ACE - GNTB - Deep Black - 16X154X1.5CH Track, 2026 09- Miscellaneous - Utilities Diagram

Description

Price

Snow Guard

520002106

$137.49

30a

Black, Pop Rivet 3/16 X ,550

293150292

$1.05

30b

Washer

517124300

$0.19

30c

Black, Ornit Rivet 3/16 X ,800

293150306

$1.15

Light Fairing

520001487

$20.99

200

Tail Light

520002710

$78.49

205

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

400

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

410

Yellow, LH/RH Rear Reflector Kit

861805523

$26.99

420

Amber, LH Rear Reflector

520001862

$4.99

430

Amber, LH Rear Reflector

520001861

$4.99

1000

RH Front Reflector

520002444

$9.19

1010

LH Front Reflector

520002443

$9.19

1400

Tool Kit | Includes 1400 to 1400b

520001767

$50.99

1400b

Key

520001815

$11.79

3000c

Amber, Reflector

520000271

$19.99

3600a

Hitch Ass'y

520001826

$59.49

3600b

Hitch Support

520001632

Unavailable

3600c

Hitch Fastening Plate

520001243

Unavailable

3600d

Sleeve

520001288

Unavailable

3600f

Socket Head Screw M8 X 45 | Traxter XT.

205484546

$8.01

3600g

Carriage Bolt, M8 X 25 | XXC

207782544

$1.58

3600h

Hex. Flange Elastic Nut M8

233281414

$1.47

3600j

Cover | Model-T3

28056

$5.89

3600k

Red Reflector

520001820

$20.99

3670

Cover | Model-T3

28056

$5.89
