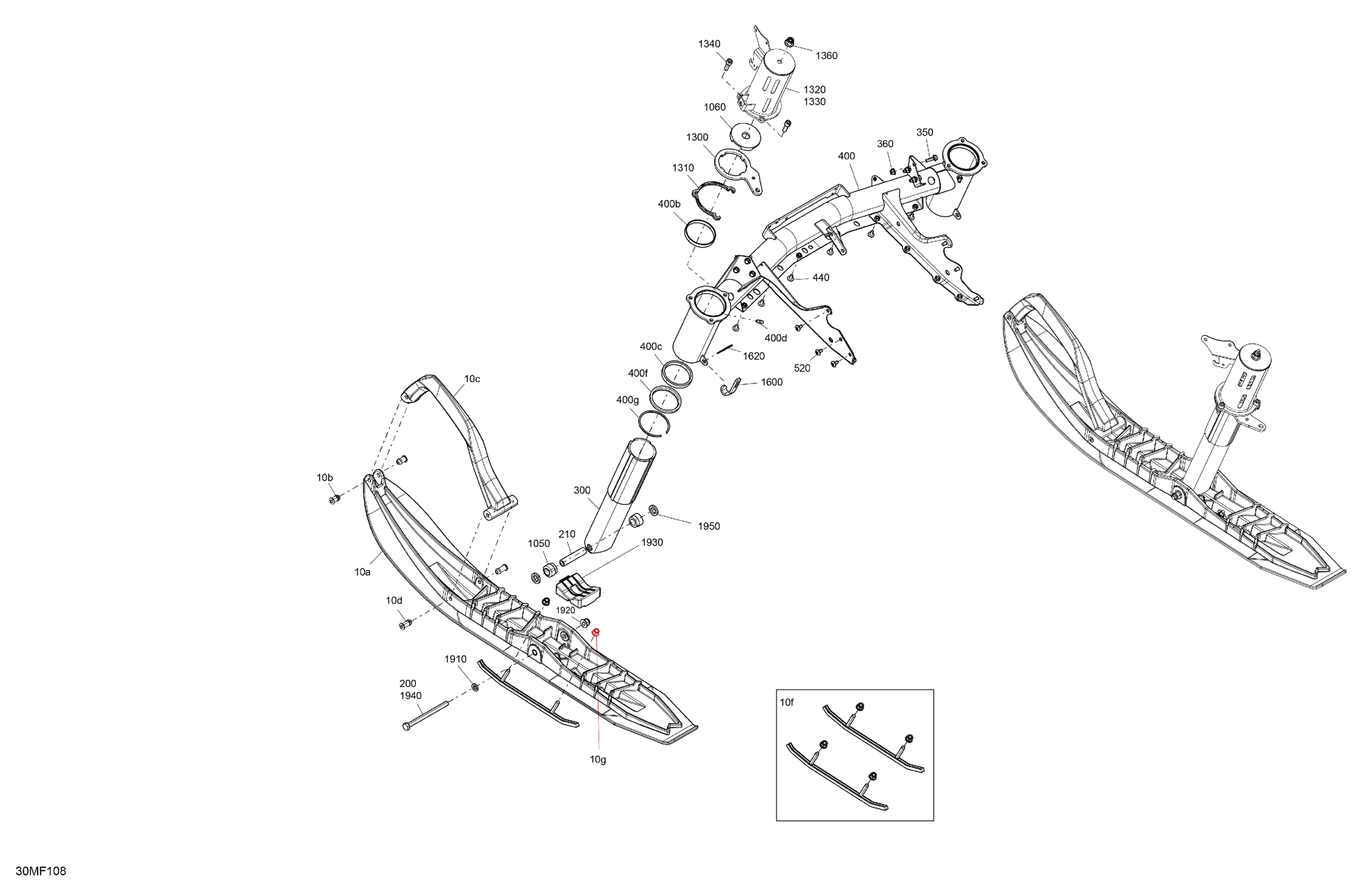

Ski-Doo Europe - TUNDRA - LE - 600 ACE - GNTB - Deep Black - 16X154X1.5CH Track, 2026 Suspension - Front Diagram

Description

Price

10a

Black, Ski

505073227

$170.12

10b

Rivet Ski Handle Short

505075902

$4.30

10c

Neo Yellow, Ski Handle

505075287

$35.04

10d

Rivet Ski Handle Long

505075906

$4.88

10f

Carbide Runner Square Kit This part replaces 860202518.

860203079

Unavailable

10g

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Ski Axle

505073209

$12.31

300

Ski Leg

505073200

$281.31

350

Hex. Flange Screw M6 X 20

207662046

$1.74

360

Elastic Flange Nut M6 X 1.0

233261416

$1.74

400

Suspension Module | Includes 400 to 400g

505075833

$461.91

400b

Upper Cushion

414803100

$8.16

400c

Lower Cushion

414803200

$11.36

400d

Grease Fitting

408200700

$2.80

400f

Seal Oil

505072696

$44.75

400g

Circlip

505072698

$12.51

440

Torx Truss Screw M6 X 12

250000767

$1.66

520

Torx Truss Screw M6 X 12

250000767

$1.66

1050

Cushion

572034500

$9.69

1060

Stopper

570025800

$12.27

1300

Steering Arm

505074801

$124.60

1310

Spacer

505073983

$23.85

1320

LH Suspension Cover

505074802

$59.67

1330

RH Suspension Cover

505074808

$59.67

1340

Socket Head Screw M8 X 25

205082544

$0.92

1360

Hex. Flange Elastic Nut M10

233201414

$1.26

1600

Clamp

505074882

$3.88

1620

Spring Cotter 2 Din 11024 Zn

505073113

$2.01

1910

Washer

503192496

$0.73

1920

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

1930

Ski Stopper

505072594

$17.13

1940

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

1950

Spacer

505072579

$7.36
