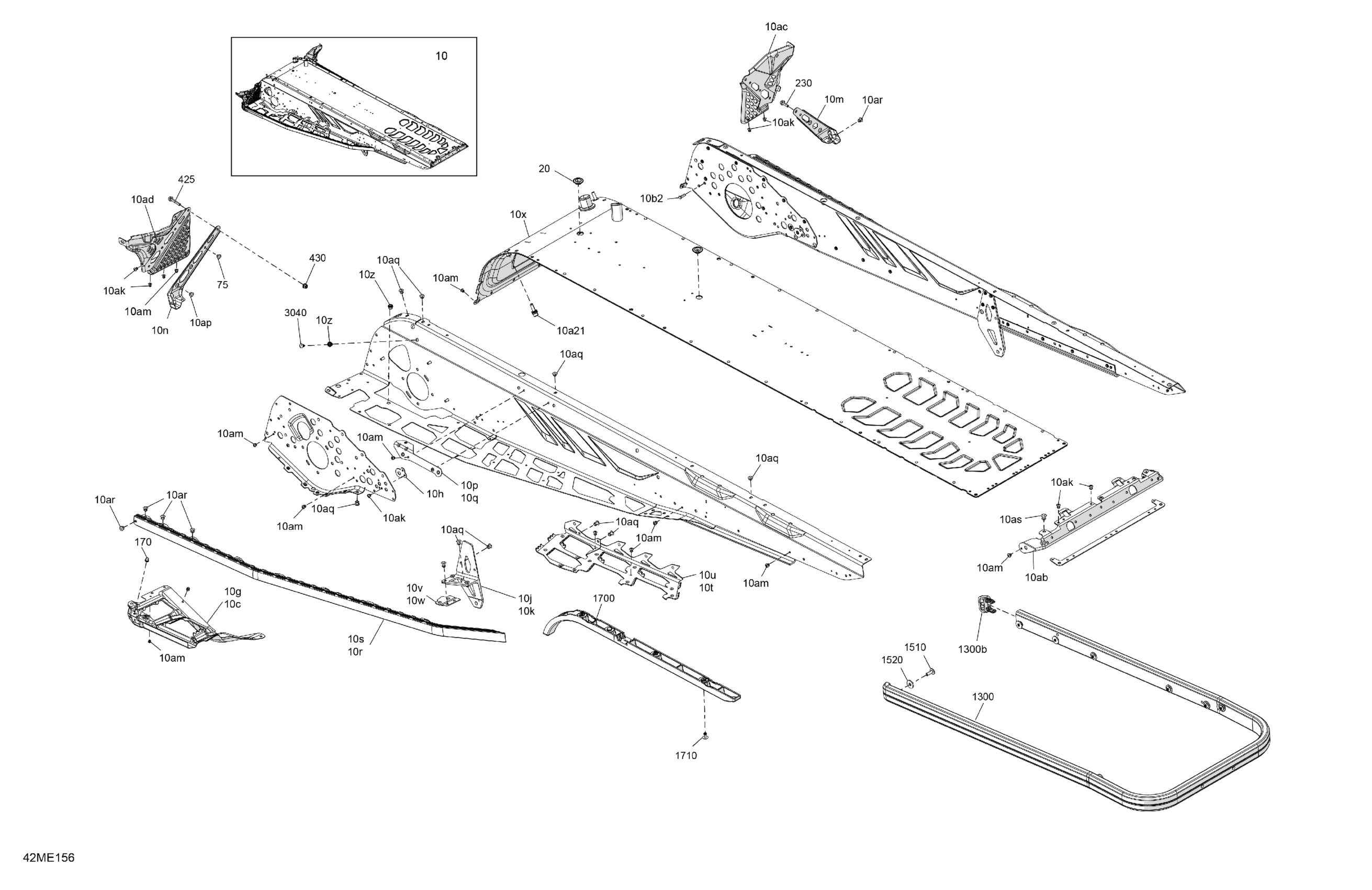

Ski-Doo Europe - TUNDRA - 600 EFI - LE - GDSA - Deep Black - 154X16X1.5CH Track - 2025 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10as

415130878

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$1.92

10c

Deep Black, RH Footrest Reinforcement

518332803

$79.97

10g

Deep Black, LH Footrest Reinforcement

518332802

$16.89

10h

Front Suspension Arm Reinforcement

518335959

$3.85

10j

LH Rear Suspension Support

518334406

$66.12

10k

RH Rear Suspension Support

518334407

$41.51

10m

Stirrup Reinforcement

518334507

$18.43

10n

Deep Black, LH Chassis Reinforcement

518332924

$18.43

10p

LH Under Chassis Reinforcement

518331744

$16.12

10q

RH Under Chassis Reinforcement

518331745

$16.89

10r

RH Roller

518328451

$180.74

10s

LH Roller

518328452

$180.74

10t

Central Rear Tunnel Reinforcement

518334842

$33.05

10u

LH Central Reinforcement Tunnel

518334843

$33.05

10v

LH Reinforcement Plate

518329088

$3.08

10w

RH Reinforcement Plate

518329089

$4.22

10x

Radiator Tunnel 154

518335129

$692.28

10a21

Protruding Stud M8 x 22

250300652

$4.28

10z

Clinch Nut M6 Hexsert

605636003

$4.12

10ab

Rear Cap

518328990

$20.74

10ac

RH Footrest

518334509

$20.74

10ad

LH Foot Protector

518334305

$23.82

10ak

Avex Rivet

390909100

$0.29

10am

Avex Rivet

390909200

$0.29

10ap

Rivet Ornit 6,5 X 10.5

293150264

$1.94

10aq

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10ar

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10as

Rivet Ornit 6,5 X 16.5

293150267

$1.94

Black, Plug

293730052

$6.37

170

Insert M5 - 0.8

293450267

$4.22

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1300

Black, Hitch Bumper 154 | Includes 1300 to 1300b

860201250

$154.99

1300b

Bumper Cap

520001629

$0.95

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

1700

Front Protector

518329982

$17.66

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.23

3040

Dart

293730079

$1.92
