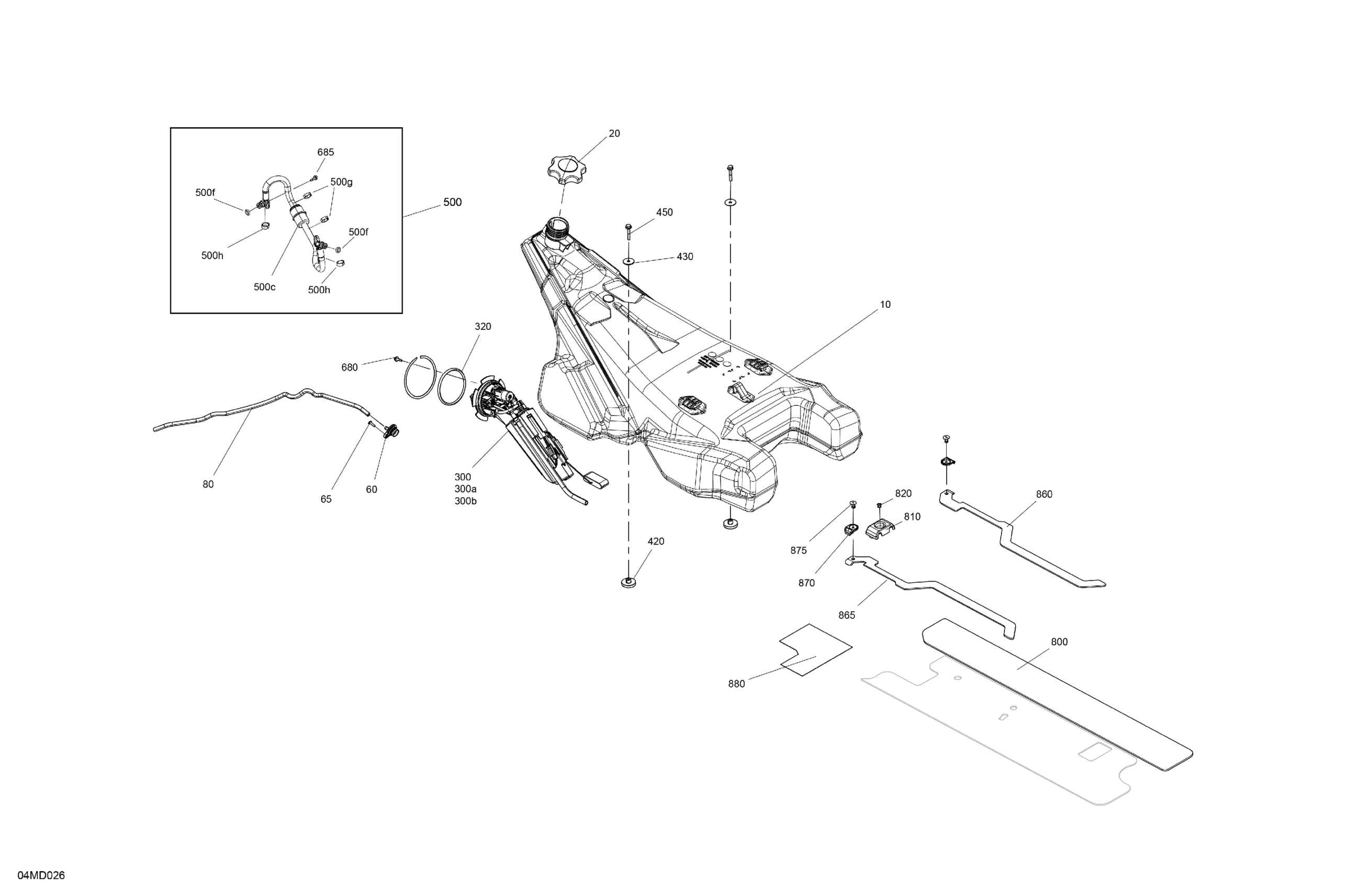

Ski-Doo Europe - TUNDRA 600 EFI - LE - GDRB - Deep Black - 154X16X1.5CH Track, 2024 02- Engine - Fuel Diagram

Description

Price

Fuel Tank

513034100

$274.99

Fuel Tank Cap

513033942

$26.99

Check Valve

513033849

$36.99

Truss Torx Screw K40 X 16

250000918

$2.11

Hose 5.7MM - 630MM

219704539

Unavailable

300

Fuel Pump Ass'y | Includes 300 to 300c

513034080

$259.99

300a

Canister

415130507

$85.99

300b

Filter

415130508

$41.49

320

O-Ring

513033862

$23.99

420

Bushing

513034085

$7.62

430

Washer | Not Shown

503193995

$4.54

450

Hex. Flange Screw M6 X 35

250001255

$2.22

500

Hose Ass'y | Includes 500 to 500h

513034119

$73.99

500c

Fuel Filter

513034047

$21.99

500f

O-Ring

513033668

$10.99

500g

Oetiker Clamp

293650125

$3.29

500h

Crimp Clamp

293650053

$3.09

680

Hex. Flange Screw M5 X 16

250000911

$0.85

685

Hex. Flange Screw M5 X 16

250000911

$0.85

800

Insulated Foam

513033913

$5.59

810

Guide

513034155

$2.29

820

Pop Rivet 3/16"

390402200

$0.35

860

Foam

513033915

$19.49

865

Foam

513033916

$4.69

870

Retainer Plate

513033917

$0.57

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

880

Fuel Tank Protection Decal

516009818

$10.17
