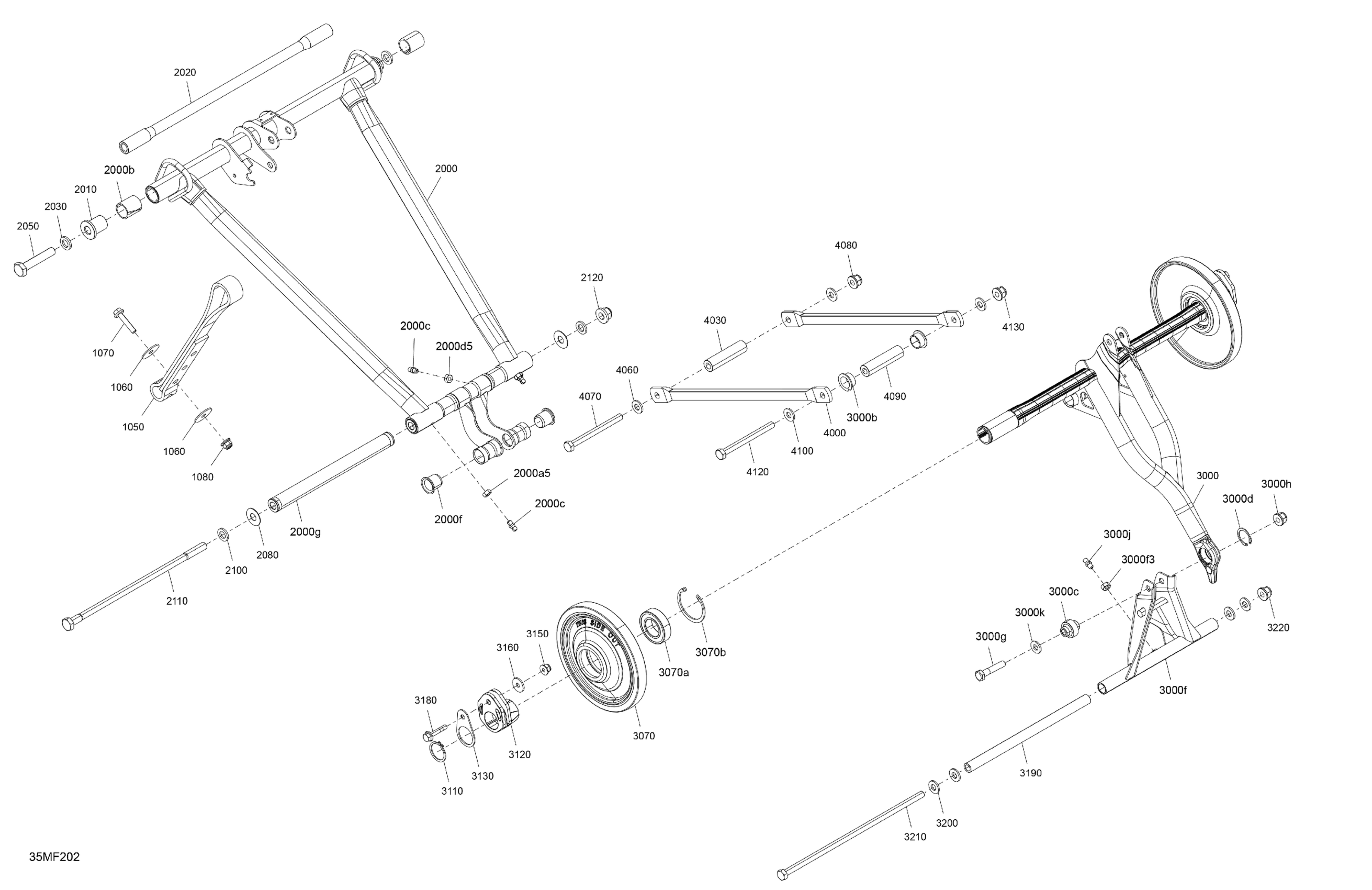

Ski-Doo Europe - SUMMIT - X - 850 E-TEC - TNTN - Deep Black - 16X154X3P5F Track, 2026 Suspension - Rear - Upper Section Diagram

#

Description
Price

1050

Stopper Strap

503195313

$26.84

1060

Washer | Not Shown

503193995

$4.25

1070

Hex. Flange Screw M6 X 1.0 X 30

207663056

$4.15

1080

Hex. Flange Elastic Nut M6

233261466

$1.91

2000

Front Suspension Arm Ass'y | Includes 2000 to 2000g

503197688

$236.54

2000a5

Hexagonal Nut M6

232061404

$0.31

2000b

Extended Bushing

503191556

$5.54

2000c

Grease Fitting

408200700

$3.21

2000d5

Hexagonal Nut M6

232061404

$0.31

2000f

Bushing

503197556

$5.54

2000g

Lower Shaft

503196972

$67.88

2010

Bushing

503194970

$13.19

2020

Upper Shaft

503193441

$35.04

2030

Washer

503191926

$1.52

2050

Hex. Threadlock Screw M10 X 55

250001365

$7.09

2080

Washer

250200032

$4.84

2100

Washer

503192496

$0.73

2110

Bolt M10 X 251MM

503193227

$15.64

2120

Flange Elastic Nut M10

233201466

$3.01

3000

Rear Suspension Arm Ass'y | Includes 3000 to 3000k

503197412

$407.43

3000b

Swivel Bushing

503191555

$5.54

3000c

Radial Joint

503194035

$67.88

3000d

Inner Circlip

293370114

$4.25

3000f

Shackle | Includes 3000k to 3000k3

503196242

$113.40

3000f3

Hexagonal Nut M6

232061404

$0.31

3000g

Hex. Screw M8 X 1.25 X 40

207084056

$3.01

3000h

Elastic Flange Nut M8

233281466

$0.96

3000j

Grease Fitting

408200700

$3.21

3000k

Washer

503192494

$3.01

3070

Wheel 155 | Includes 3070 to 3070b

503191150

$44.75

3070a

Ball Bearing

503193548

$16.39

3070b

Retaining Ring

415129780

$13.46

3110

External Retaining Ring

293370186

$2.06

3120

Suspension Support

503196322

$4.91

3130

Retaining Plate

503197970

$2.12

3150

Elastic Flange Nut M6 X 1.0

233261416

$2.00

3160

Flat Washer

224061201

$1.27

3180

Hex Flange Screw M6 X 31

250001219

$2.00

3190

Pivot Arm Axle

503196358

$14.90

3200

Washer

503192494

$3.01

3210

Bolt M8 X 248mm

503192440

$29.07

3220

Elastic Flange Nut M8

233281466

$0.96

4000

Link Rod

503197649

$26.09

4030

Pin

503197683

$6.28

4060

Washer

503192494

$3.01

4070

Hex. Cap Screw M8 X 120

503197958

$3.19

4080

Elastic Flange Nut M8

233281466

$0.96

4090

Pin

503197683

$6.28

4100

Washer

503192494

$3.01

4120

Hex. Cap Screw M8 X 120

503197958

$3.19

4130

Elastic Flange Nut M8

233281466

$0.96
