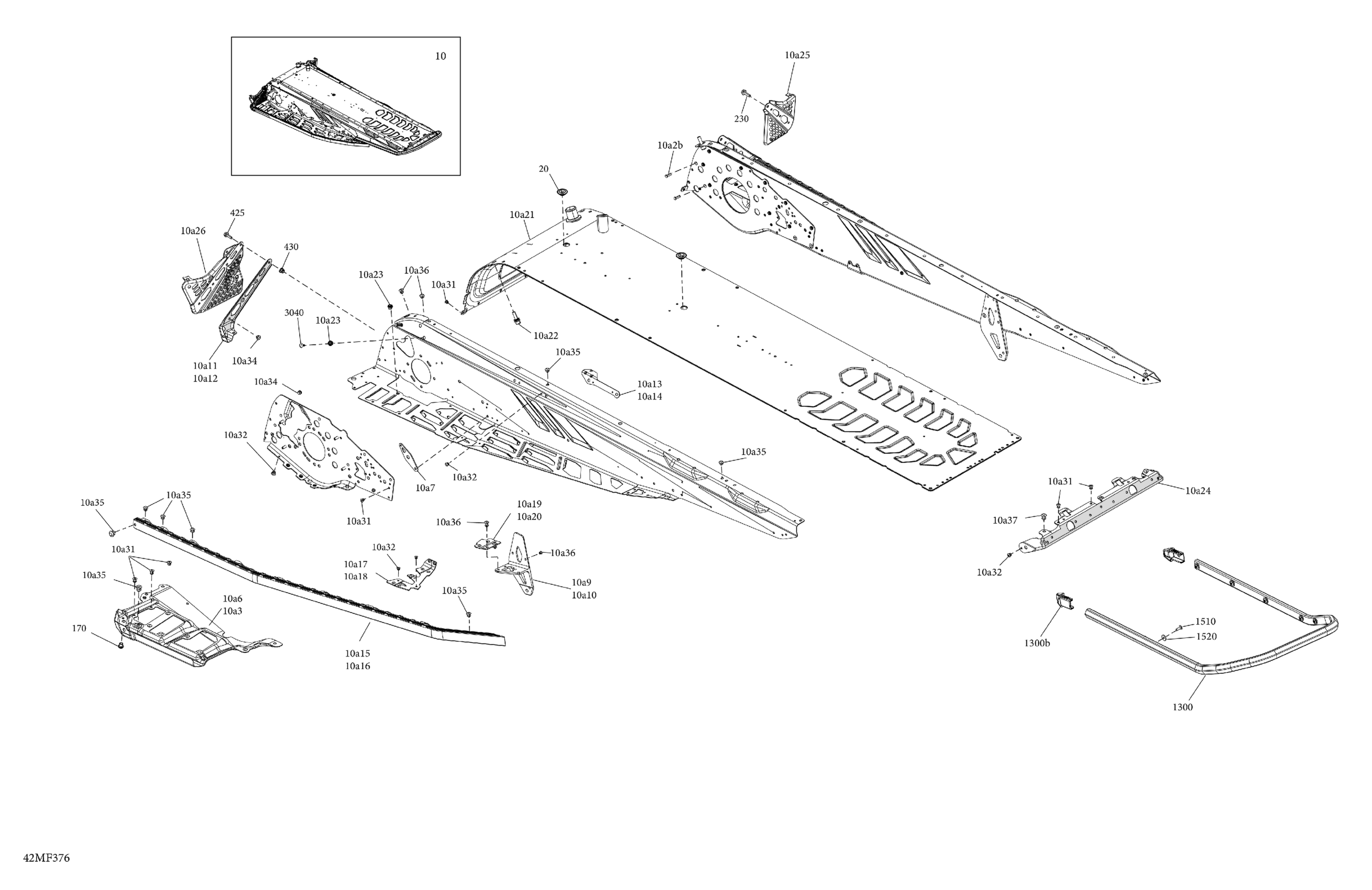

Ski-Doo Europe - SUMMIT - NEO + - 600 EFI - TXTC - Deep Black - 15X146X1.75HF Track, 2026 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 146

415130888

Unavailable

10a2b

Clinch Stud M6 X 20

250300027

$2.09

10a3

Deep Black, RH Footrest Reinforcement

518330738

$88.99

10a6

Deep Black, LH Footrest Reinforcement

518331523

$88.99

10a7

Front Suspension Arm Reinforcement

518335959

$4.19

10a9

LH Bracket

518329632

$45.99

10a10

RH Rear Suspension Support

518334407

$69.99

10a11

Stirrup Reinforcement

518334507

$21.99

10a12

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10a13

LH Member Fixation Plate

518330299

$18.99

10a14

RH Under Chassis Reinforcement

518331745

$19.99

10a15

RH Roller

518328451

$194.99

10a16

LH Roller

518328452

$194.99

10a17

LH Footrest Reinforcement

518332296

$21.99

10a18

RH Footrest Reinforcement

518332297

$21.99

10a19

LH Reinforcement Plate

518329088

$3.39

10a20

RH Reinforcement Plate

518329089

$4.59

10a21

Radiator Tunnel 146

518335127

$739.99

10a22

Protruding Stud M8 x 22

250300652

$4.44

10a23

Clinch Nut M6 Hexsert

605636003

$4.23

10a24

Rear Cap

518328990

$22.49

10a25

RH Footrest

518333006

$40.99

10a26

LH Footrest

518333858

$40.99

10a31

Avex Rivet

390909100

$0.30

10a32

Avex Rivet

390909200

$0.30

10a34

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10a35

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10a36

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10a37

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

170

Insert M5 - 0.8

293450267

$4.59

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper 146 | Includes 1300 to 1300b

518334306

$148.49

1300b

Cap

520001612

$10.99

3040

Dart

293730079

$2.09

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37
