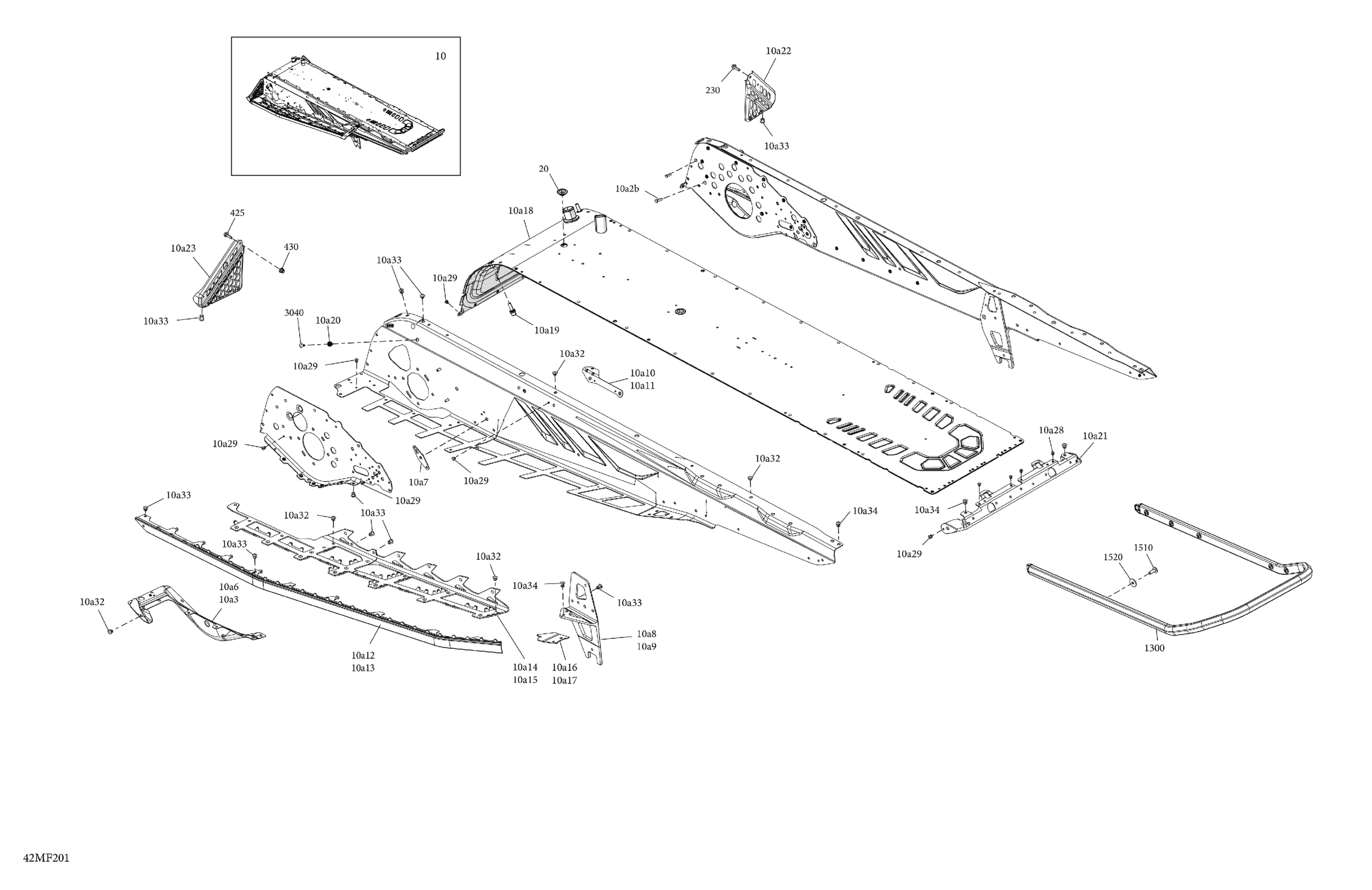

Ski-Doo Europe - SUMMIT - Adrenaline - 600R E -TEC - CDTE - Catalyst Gray - 16X146X2.5PF Track, 2026 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Moduel 146

415131066

Unavailable

10a2b

Clinch Stud M6 X 20

250300027

$1.92

10a3

RH Footrest Reinforcement

518332455

$81.51

10a6

LH Footrest Reinforcement

518332456

$81.51

10a7

Front Suspension Arm Reinforcement

518335959

$3.85

10a8

LH Rear Suspension Support

518336861

$42.28

10a9

RH Rear Suspension Support

518336862

$42.28

10a10

LH Member Fixation Plate

518330299

$16.12

10a11

RH Under Chassis Reinforcement

518331745

$16.89

10a12

Formed Boarding Step Rg

518332841

$184.58

10a13

Formed Boarding Step

518332842

$184.58

10a14

RH Tunnel Liner

518335261

$61.51

10a15

LH Tunnel Liner

518335262

$60.74

10a16

LH Rear Footrest Reinforcement

518333048

$18.43

10a17

RH Rear Footrest Reinforcement

518333049

$18.43

10a18

Radiator Tunnel 146

518335139

$692.28

10a19

Protruding Stud M8 x 22

250300652

$4.28

10a20

Clinch Nut M6 Hexsert

605636003

$4.12

10a21

Rear Cap

518328990

$20.74

10a22

RH Footrest

518332462

$42.28

10a23

LH Footrest

518332463

$42.28

10a28

Avex Rivet

390909100

$0.29

10a29

Avex Rivet

390909200

$0.29

10a32

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10a33

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10a34

Rivet Ornit 6,5 X 16.5

293150267

$1.94

Black, Plug

293730052

$6.37

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1300

Rear Bumper 146

518329553

$165.35

3040

Dart

293730079

$1.92

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11
