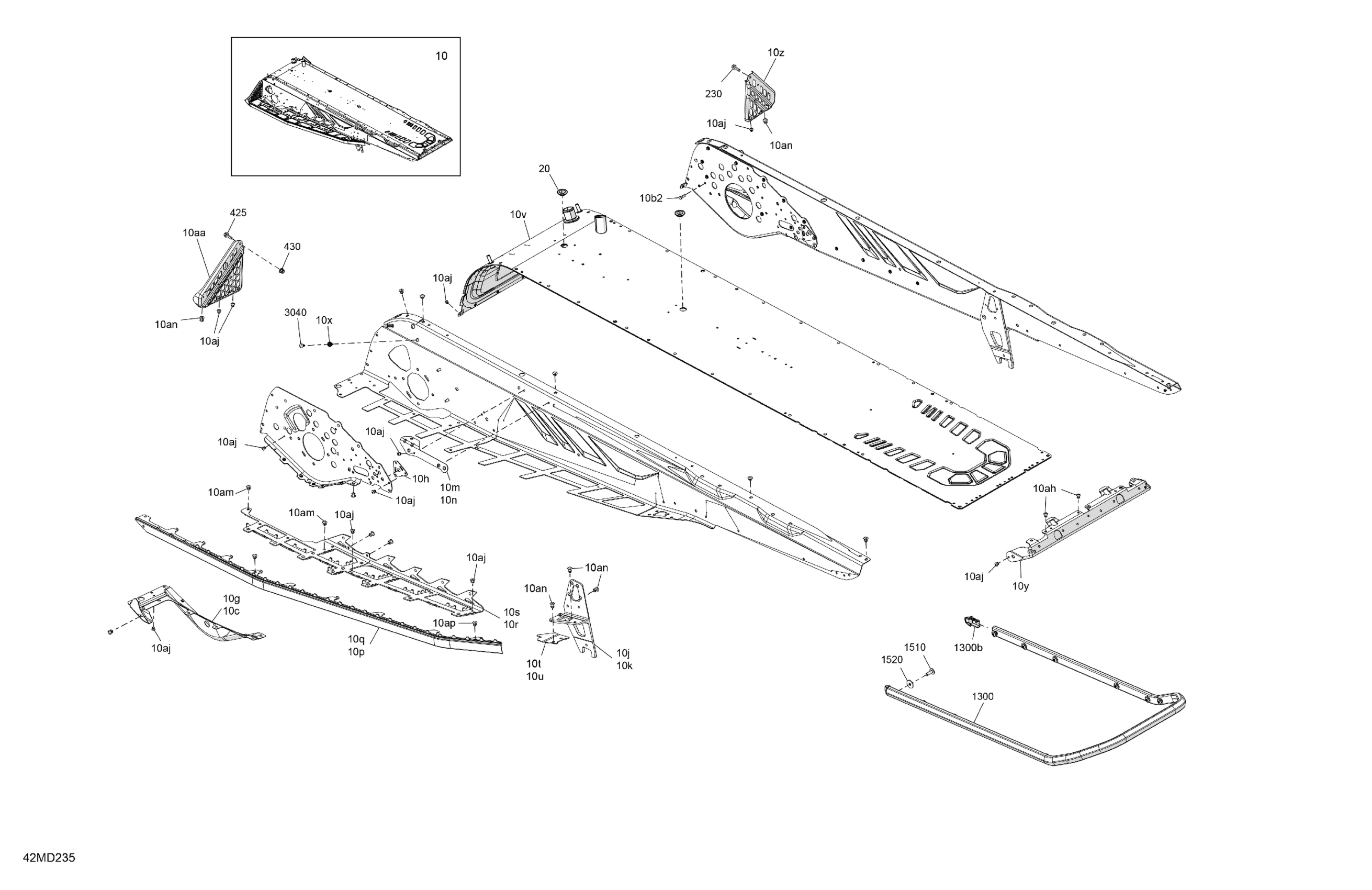

Ski-Doo Europe - SUMMIT 600R E-TEC - Adrenaline - CERL - Catalyst Gray - 154X16X2.5PLF Track, 2024 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 154 | Includes 10 to 10ap

415130756

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$1.92

10c

RH Footrest Reinforcement

518332455

$81.51

10g

LH Footrest Reinforcement

518332456

$81.51

10h

Front Arm Reinforcement

518333257

$2.63

10j

LH Rear Suspension Support

518332875

$42.28

10k

RH Rear Suspension Support

518332876

$42.28

10m

LH Under Chassis Reinforcement

518331744

$16.12

10n

RH Under Chassis Reinforcement

518331745

$16.89

10p

Formed Boarding Step Rg

518332841

$184.58

10q

Formed Boarding Step

518332842

$184.58

10r

RH Tunnel Liner

518335261

$61.51

10s

LH Tunnel Liner

518335262

$60.74

10t

LH Rear Footrest Reinforcement

518333048

$18.43

10u

RH Rear Footrest Reinforcement

518333049

$18.43

10v

Radiator Tunnel 154 Ass'y

518334492

$692.28

10x

Clinch Nut M6 Hexsert

605636003

$4.12

10y

Rear Cap

518328990

$20.74

10z

RH Footrest

518332462

$42.28

10aa

LH Footrest

518332463

$42.28

10ah

Avex Rivet

390909100

$0.29

10aj

Avex Rivet

390909200

$0.29

10am

Rivet Ornit 6,5 X 12.5

293150265

$1.94

10an

Ornit Rivet 6,5 X 14.5

293150266

$1.94

10ap

Rivet Ornit 6,5 X 16.5

293150267

$1.94

Black, Plug

293730052

$6.37

230

Hex. Flange Screw M6 X 20

207562056

$1.74

425

Hex. Flange Screw M6 X 20

207562056

$1.74

430

Elastic Flange Nut M6 X 1.0

233261416

$1.74

1300

Rear Bumper | Includes 1300 to 1300b

518328501

$159.99

1300b

Cap

520001612

$8.62

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$1.74

1520

Flat Washer

224061201

$1.11

3040

Dart

293730079

$1.92
