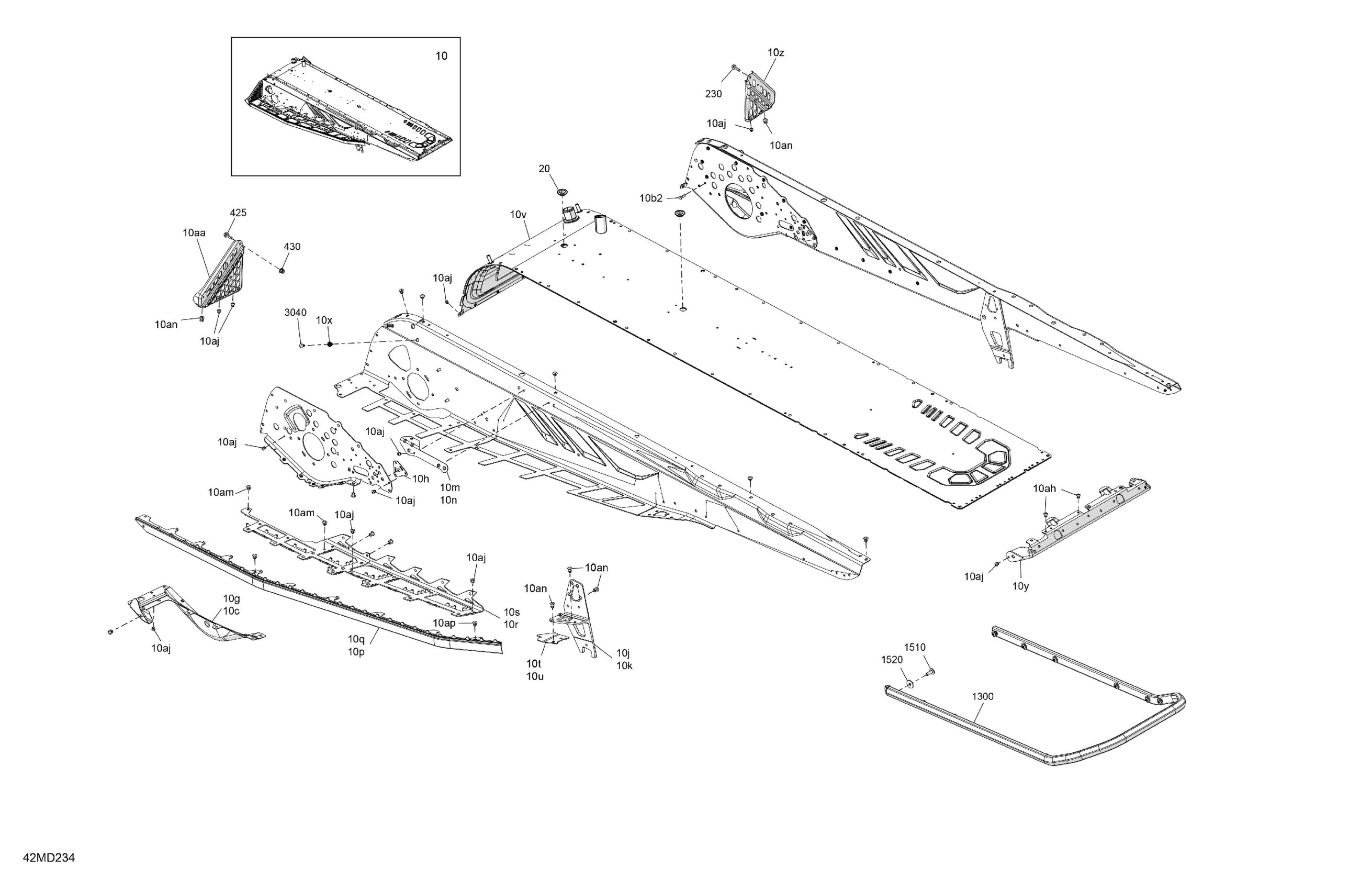

Ski-Doo Europe - SUMMIT 600R E-TEC - Adrenaline - CDRN - Catalyst Gray - 146X16X2.5PF Track, 2024 06- Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 146 | Includes 10 to 10ap

415130769

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

RH Footrest Reinforcement

518332455

$88.99

10g

LH Footrest Reinforcement

518332456

$88.99

10h

Front Arm Reinforcement

518333257

$2.89

10j

LH Rear Suspension Support

518332875

$94.99

10k

RH Rear Suspension Support

518332876

$45.99

10m

LH Under Chassis Reinforcement

518331744

$18.99

10n

RH Under Chassis Reinforcement

518331745

$19.99

10p

Formed Boarding Step Rg

518332841

$194.99

10q

Formed Boarding Step

518332842

$194.99

10r

RH Tunnel Liner

518335261

$66.99

10s

LH Tunnel Liner

518335262

$65.99

10t

LH Rear Footrest Reinforcement

518333048

$19.99

10u

RH Rear Footrest Reinforcement

518333049

$19.99

10v

Radiator Tunnel 146

518335139

$739.99

10x

Clinch Nut M6 Hexsert

605636003

$4.23

10y

Rear Cap

518328990

$22.49

10z

RH Footrest

518332462

$44.99

10aa

LH Footrest

518332463

$44.99

10ah

Avex Rivet

390909100

$0.30

10aj

Avex Rivet

390909200

$0.30

10am

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10an

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10ap

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Black, Plug

293730052

$9.19

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper 146

518329553

$169.49

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

3040

Dart

293730079

$2.09
