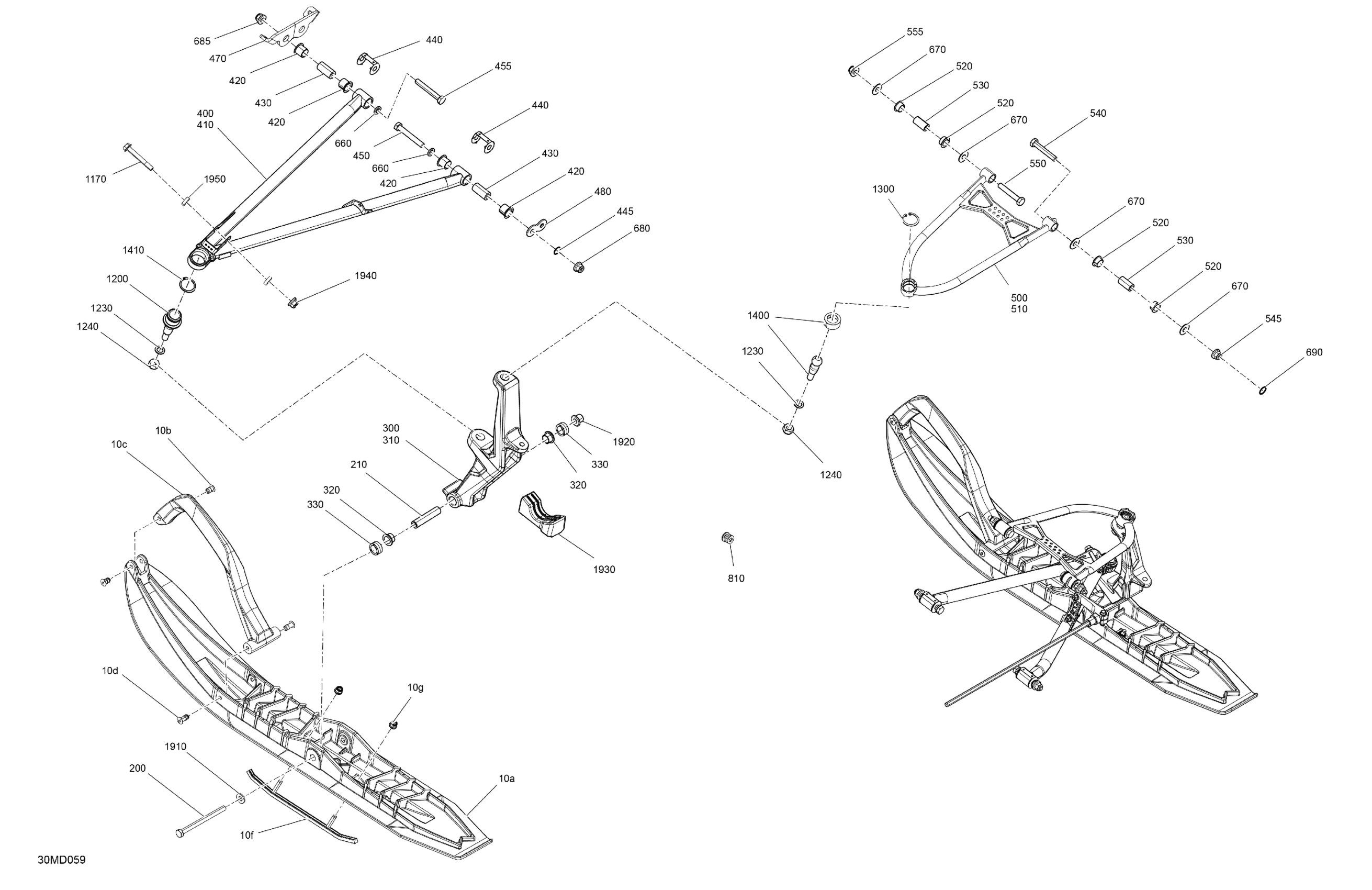

Ski-Doo Europe - SUMMIT 600 EFI - 60 - NEO + - TVRB - Deep Black - 146X15X1.75HF Track, 2024 Suspension - Front Diagram

Description

Price

10a

Black, Ski

505073227

$170.12

10b

Retainer 17mm long

505071812

$4.30

10c

Neo Yellow, Ski Handle

505075287

$35.04

10d

Retainer 23mm Long

505072133

$4.88

10f

Round Carbide Runner Kit

860202180

$135.79

10g

Hex. Flange Elastic Nut M8

233281414

$1.14

200

Hex. Screw M10 X 130 | Model-RT STD

250000703

$7.53

210

Ski Axle

505073691

$12.21

300

Neo Yellow, LH Ski Leg -8.5

505075496

$205.94

310

Neo Yellow, RH Ski Leg -8.5

505075497

$211.91

320

Leg Bushing

505072690

$5.75

330

Spacer

505074949

$1.97

400

LH Lower Suspension Arm 34"

505075470

$184.30

410

RH Lower Suspension Arm 34"

505075471

$184.30

420

Bushing

505072208

$3.04

430

Bushing

505075324

$14.66

440

Wear Plate

505072634

$4.31

445

O-Ring

505072448

$2.18

450

Screw Hex. M10 X 70

250001024

$1.74

455

Screw Hex. M10 X 70

250001024

$1.74

470

Wear Plate

505073723

$5.67

480

Plate

505073844

$2.07

500

LH Upper Suspension Arm 34"

505075178

$138.03

510

RH Upper Suspension Arm 34"

505075179

$138.03

520

Bushing

505072250

$3.04

530

Bushing

505075322

$3.70

540

Screw Hex. M10 X 60

250001023

$1.74

545

Hex. Flange Elastic Nut M10

250100165

$0.70

550

Screw Hex. M10 X 60

250001023

$1.74

555

Hex. Flange Elastic Nut M10

250100165

$0.70

660

Washer

503189564

$0.70

670

Washer

505072392

$4.51

680

Hex. Flange Elastic Nut M10

250100165

$0.70

685

Hex. Flange Elastic Nut M10

250100165

$0.70

690

O-Ring

505072448

$2.18

810

Cap

517302716

$3.73

1170

Hex. Flange Screw M8 X 58

250000824

$1.74

1200

Ball Joint

505074133

$49.97

1230

Washer

503192491

$4.25

1240

Hex Elastic Nut M12 X 1.25

232521464

$1.74

1300

Circlip

293370070

$6.81

1400

Upper Ball Joint

505072913

$67.88

1410

Snap Ring

293370098

$3.01

1910

Washer

503192496

$0.73

1920

Hex. Flange Elastic M10 x 1.5

233201464

$6.18

1930

Ski Stopper

505074831

$15.64

1940

Elastic Flange Nut M8

233281466

$0.83

1950

Spacer

505073892

$2.10
