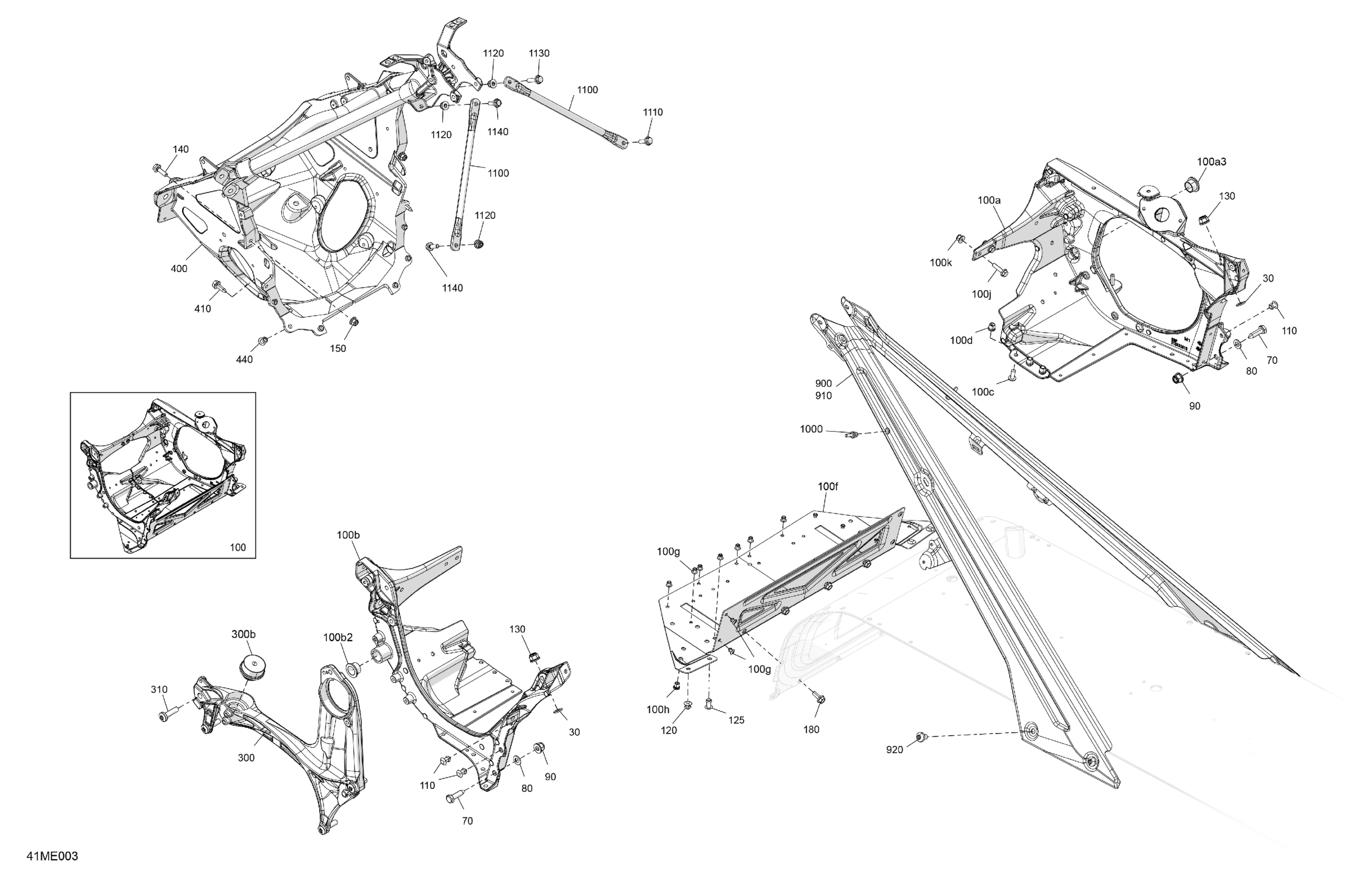

Ski-Doo Europe - SUMMIT - 600 EFI - 55 - NEO - TWSA - Catalyst Gray - 146X14X1.6CF Track - 2025 Frame - System - Front Section Diagram

Conical Spring Washer M8

250200146

$0.83

Hex Screw M8 X 30

250000942

$0.92

Flat Washer 8 mm

234081410

$0.69

Hex. Flange Elastic Nut M8

233281414

$1.14

Engine Chassis Module Ass'y | Includes 100 to 100k

518334690

$392.28

RH Side Member Ass'y | Includes 100a to 100a3

518334521

$208.43

Leg Bushing

505072690

Unavailable

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$186.89

Leg Bushing

505072690

Unavailable

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.66

Collar Huck Magna-Grip 6.4

293150149

$0.37

Bottom Plate

518332716

$34.58

Avex Rivet

390909100

$0.29

Insert M5 X 0.8

293450268

$1.95

Hex. Flange Screw M6 X 20

207662046

$1.74

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

Ornit Rivet 6,5 X 14.5

293150266

$1.94

Rivet Ornit 6,5 X 12.5

293150265

$1.94

Rivet Ornit 6,5 X 18.5

293150268

$1.94

Hex. Flange Elastic Nut M8

233281414

$1.14

Hex. Flange Screw M6 X 20

207662046

$1.74

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 16

207661646

$1.00

LH Side Member Ass'y | Includes 300 to 300b

518333783

$270.74

Vibration Damper

512061516

$57.66

Screw-Pan HD.Torx M8X30

250001060

$0.65

Chassis Suspension Module

518334459

$653.05

Screw-Forming Hex.HD.FL. M6 X 16

250001051

$1.00

Rivet Ornit 6,5 X 16.5

293150267

$1.94

Full Moon, LH Diagonal Cross Member Ass'y

518336016

Unavailable

Full Moon, RH Rear Diagonal Cross Member Ass'y

518336017

Unavailable

Pan Head Torx Screw M8 X 12

250000887

$1.56

Protruding Stud M5 x 12

250300651

$1.92

Upper Colomn Support

518329974

$20.74

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.56

Elastic Flange Nut M6 X 1.0

233261416

$1.74

Hex. Flange Screw M6 X 25

207662556

$3.61

Hex. Flange Screw M6 X 20

207662046

$1.74
