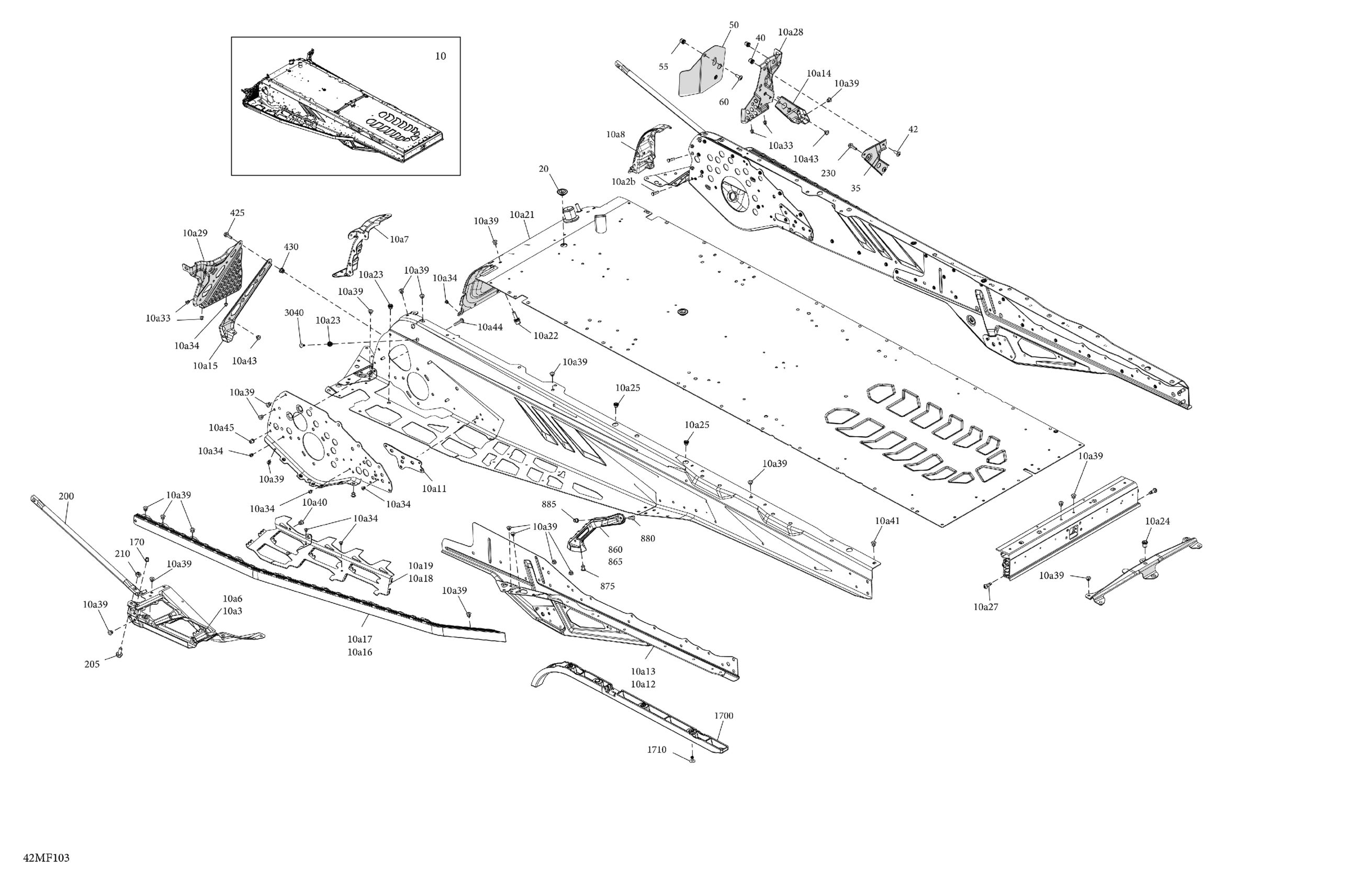

Ski-Doo Europe - SKANDIC - LE - 900 ACE - AHTD - Deep Black - 20X154X1.5CST Track, 2026 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154

415131057

Unavailable

10a2b

Clinch Stud M6 X 20

250300027

$1.87

10a3

Deep Black, RH Footrest Reinforcement

518332803

$77.58

10a6

Deep Black, LH Footrest Reinforcement

518332802

$16.39

10a7

LH Frame Corner 20

518329368

$50.72

10a8

RH Molded Spacer

518329369

$14.81

10a11

Front Suspension Arm Reinforcement

518336141

$15.64

10a12

LH Rear Suspension Support

518337124

$99.22

10a13

RH Rear Suspension Support

518337125

$99.22

10a14

RH Footrest Reinforcement

518329789

$17.88

10a15

Deep Black, LH Chassis Reinforcement

518332924

$17.88

10a16

RH Roller

518329648

$175.34

10a17

LH Roller

518328452

$175.34

10a18

RH Footrest Reinforcement

518336064

$32.06

10a19

LH Footrest Reinforcement

518336063

$32.06

10a21

Radiator Tunnel 154

518336023

$658.93

10a22

Protruding Stud M8 x 22

250300652

$4.15

10a23

Clinch Nut M6 Hexsert

605636003

$4.00

10a24

Insert

293450275

$11.36

10a25

Insert Half Hex Body M6 x 1.0

250100199

$2.91

10a27

Torx Button Head Screw M8 X 25

250001151

$1.85

10a28

RH Footrest

518331822

$22.36

10a29

LH Footrest

518332978

$39.52

10a33

Avex Rivet

390909100

$0.28

10a34

Avex Rivet

390909200

$0.28

10a39

Rivet Ornit 6,5 X 10.5

293150264

$1.88

10a40

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10a41

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10a43

Rivet Ornit 6,5 X 16.5

293150267

$1.88

10a44

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

10a45

Collar Huck Magna-Grip 6.4

293150149

$0.36

20

Black, Plug

293730052

$6.18

35

RH Stirrup Reinforcement

518331727

$17.88

40

Insert

293450275

$11.36

42

Torx Head Screw M6 X 16

250000717

$2.00

50

Heat Shield

518331823

$7.19

55

Insert

293450275

$11.36

60

Torx Head Screw M6 X 16

250000717

$2.00

170

Insert M5 - 0.8

293450267

$4.09

200

Lateral Reinforcement

518332541

$17.88

205

Hex. Flange Screw M8 X 20

207682044

$1.06

210

Hex. Nut M8

232081414

$0.69

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 X 20

207562056

$2.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

860

Deep Black, LH Rear Footrest Reinforcement

518335168

$16.39

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$16.39

875

Rivet Ornit 6,5 X 16.5

293150267

$1.88

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

885

Collar Huck Magna-Grip 6.4

293150149

$0.36

1700

Front Protector

518329982

$17.13

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.19

3040

Dart

293730079

$1.87
