Partiron

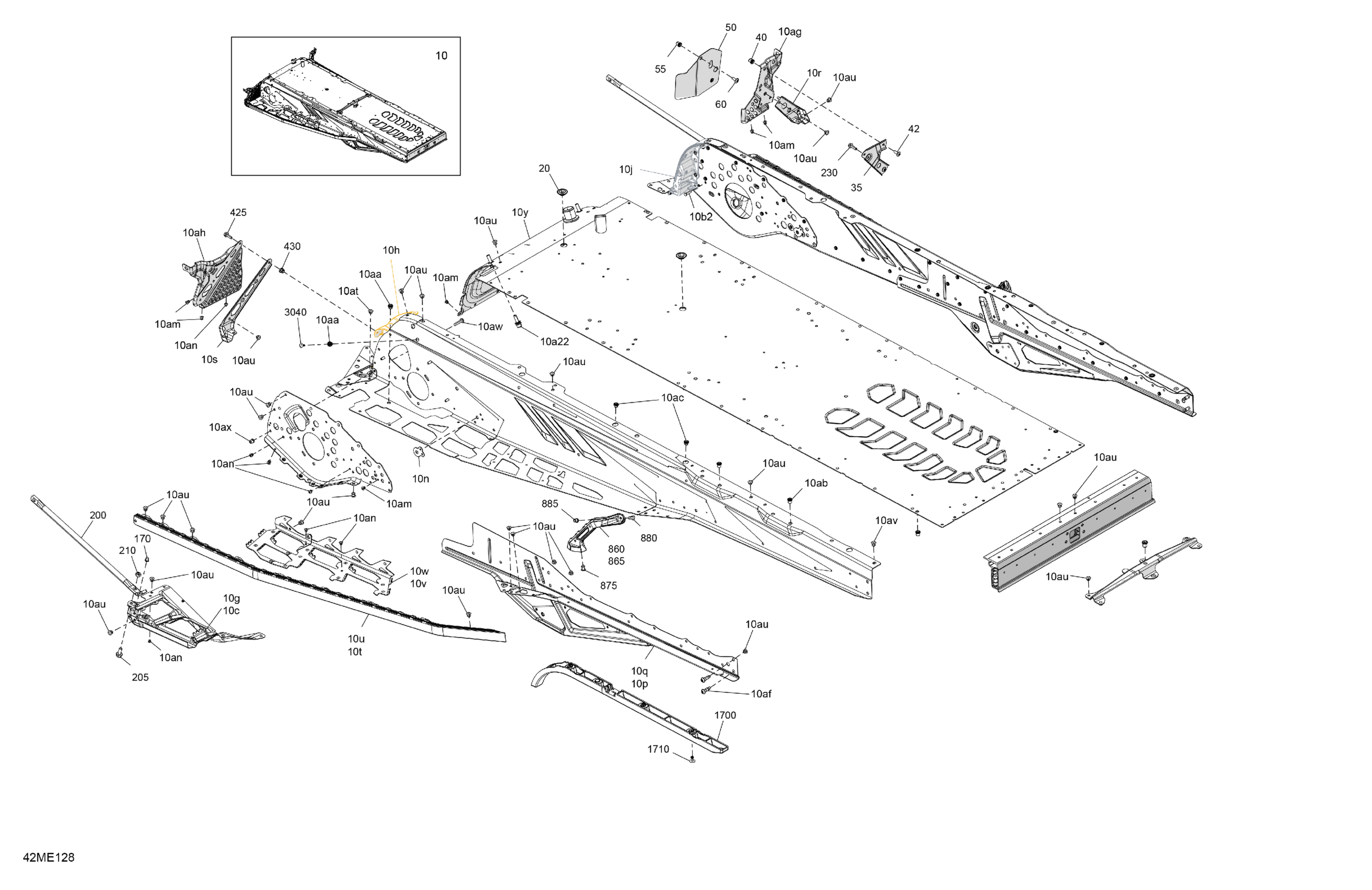

Ski-Doo Europe - SKANDIC - 900 ACE - LE - AHSE - Deep Black - 154X20X1.5CST Track - 2025 Frame - System - Rear Section Diagram

#

Description
Price

10

Deep Black, Chassis Tunnel Module 154 Inch | Includes 10 to 10ax

415130873

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10g

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10h

LH Frame Corner 20

518329368

$56.99

10j

RH Molded Spacer

518329369

$19.99

10n

Front Suspension Arm Reinforcement

518335959

$4.19

10p

RH Rear Suspension Support

518333792

$109.99

10q

LH Rear Suspension Support

518333791

$109.99

10r

RH Footrest Reinforcement

518329789

$19.99

10s

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10t

RH Roller

518329648

$194.99

10u

LH Roller

518328452

$194.99

10v

Central Rear Tunnel Reinforcement

518334842

$35.99

10w

LH Central Reinforcement Tunnel

518334843

$35.99

10y

Radiator Tunnel 154

518335119

Unavailable

10a22

Protruding Stud M8 x 22

250300652

$4.44

10aa

Clinch Nut M6 Hexsert

605636003

$4.23

10ab

Insert

293450275

$12.99

10ac

Clinch Nut M6 Hexsert

605636003

$4.23

10af

Torx Button Head Screw M8 X 25

250001151

$2.00

10ag

RH Footrest

518331822

$24.49

10ah

LH Footrest

518332978

$43.99

10am

Avex Rivet

390909100

$0.30

10an

Avex Rivet

390909200

$0.30

10at

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10au

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10av

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10aw

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

10ax

Collar Huck Magna-Grip 6.4

293150149

$0.48

20

Black, Plug

293730052

$9.19

35

RH Stirrup Reinforcement

518331727

$19.99

40

Insert

293450275

$12.99

42

Torx Head Screw M6 X 16

250000717

$2.11

50

Heat Shield

518331823

$10.49

55

Insert

293450275

$12.99

60

Torx Head Screw M6 X 16

250000717

$2.11

170

Insert M5 - 0.8

293450267

$4.59

200

Lateral Reinforcement

518332541

$19.99

205

Hex. Flange Screw M8 X 20

207682044

$1.15

210

Hex. Nut M8

232081414

$0.72

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

860

Deep Black, LH Rear Footrest Reinforcement

518335168

$18.49

865

Deep Black, RH Rear Footrest Reinforcement

518335169

$18.49

875

Rivet Ornit 6,5 X 16.5

293150267

$2.40

880

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

885

Collar Huck Magna-Grip 6.4

293150149

$0.48

1700

Front Protector

518329982

$18.49

1710

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

3040

Dart

293730079

$2.09
