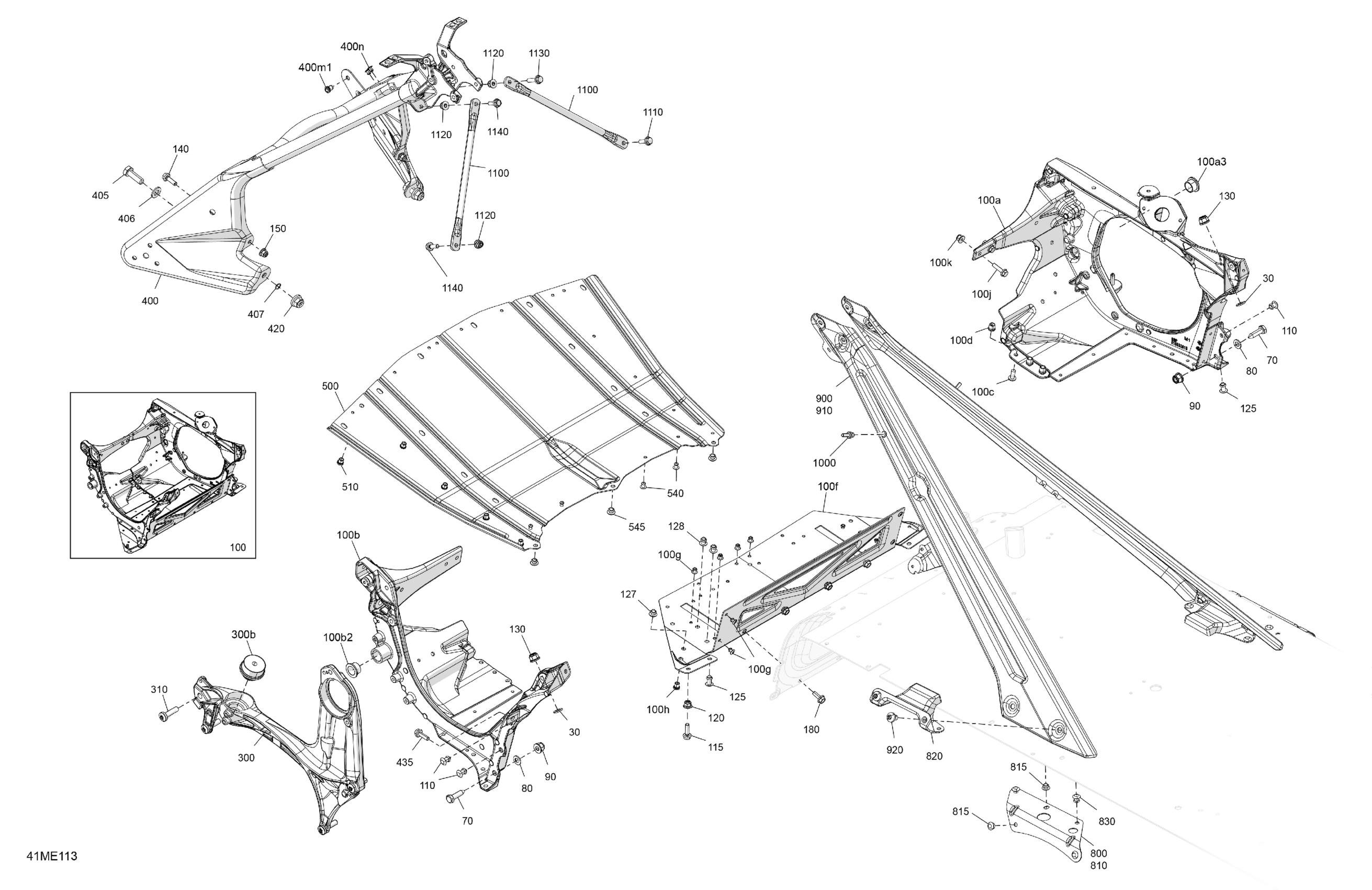

Ski-Doo Europe - SKANDIC - 600 EFI - SPORT - AJSB - Neo Yellow - 154X20X1.25WT Track - 2025 06- Frame - System - Front Section Diagram

Flat Washer M8

234081430

$2.11

Hex Screw M8 X 30

250000942

$1.15

Flat Washer 8 mm

234081410

$0.83

Hex. Flange Elastic Nut M8

233281414

$1.47

Engine Chassis Module Ass'y | Includes 100 to 100k

518334693

$429.99

RH Side Member Ass'y | Includes 100a to 100a3

518334521

$224.99

Leg Bushing

505072690

$12.49

LH Side Member Ass'y | Includes 100b to 100b2

518334599

$204.99

Leg Bushing

505072690

$12.49

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.70

Collar Huck Magna-Grip 6.4

293150149

$0.48

Bottom Plate

518332716

$36.99

Avex Rivet

390909100

$0.30

Insert M5 X 0.8

293450268

$2.09

Hex. Flange Screw M6 X 20

207662046

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Rivet Ornit 6,5 X 18.5

293150268

$2.40

Rivet Ornit 6,5 X 12.5

293150265

$2.40

Ornit Rivet 6,5 X 14.5

293150266

$2.40

Hex. Flange Elastic Nut M8

233281414

$1.47

Hex. Flange Screw M6 X 20

207662046

$2.11

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 16

207661646

$1.36

LH Side Member Ass'y | Includes 300 to 300b

518333783

$294.99

Vibration Damper

512061516

$61.99

Screw-Pan HD.Torx M8X30

250001060

$0.82

Chassis Suspension Module | Includes 400 to 400n

518335307

$369.99

Insert M5 X 0.8

293450268

$2.09

Rivet Avibulb 3/16

293150203

$2.09

Screw Hex M10 X 30

250001148

$1.69

Flat Washer 10 mm

234001410

$1.26

O-Ring

505072448

$2.32

Hex. Flange Elastic Nut M10

250100165

$0.85

Hex. Flange Screw M6 X 20

207562056

$2.11

Front Bottom Plate

518331615

$31.99

Insert M5 X 0.8

293450268

$2.09

Avex Rivet

390909100

$0.30

Rivet Ornit 6,5 X 12.5

293150265

$2.40

LH Under Chassis Reinforcement

518331729

$13.49

RH Under Chassis Reinforcement

518331731

$19.99

Rivet Ornit 6,5 X 10.5

293150271

$2.40

Cross Member Support

518331733

$33.99

Rivet Ornit 6,5 X 16.5

293150267

$2.40

Deep Black, LH Rear Diagonal Cross Member Ass'y | Includes 900 to 900a

518334724

$109.99

Deep Black, RH Rear Diagonal Cross Member Ass'y | Includes 910 to 910a

518334725

$109.99

Pan Head Torx Screw M8 X 12

250000887

$1.90

Protruding Stud M5 x 12

250300651

$2.09

Upper Colomn Support

518329974

$22.49

Hex. Flange Screw M6 X 16, Scotch Grip

207561646

$1.90

Elastic Flange Nut M6 X 1.0

233261416

$2.11

Hex. Flange Screw M6 X 25

207662556

$4.44

Hex. Flange Screw M6 X 20

207662046

$2.11
