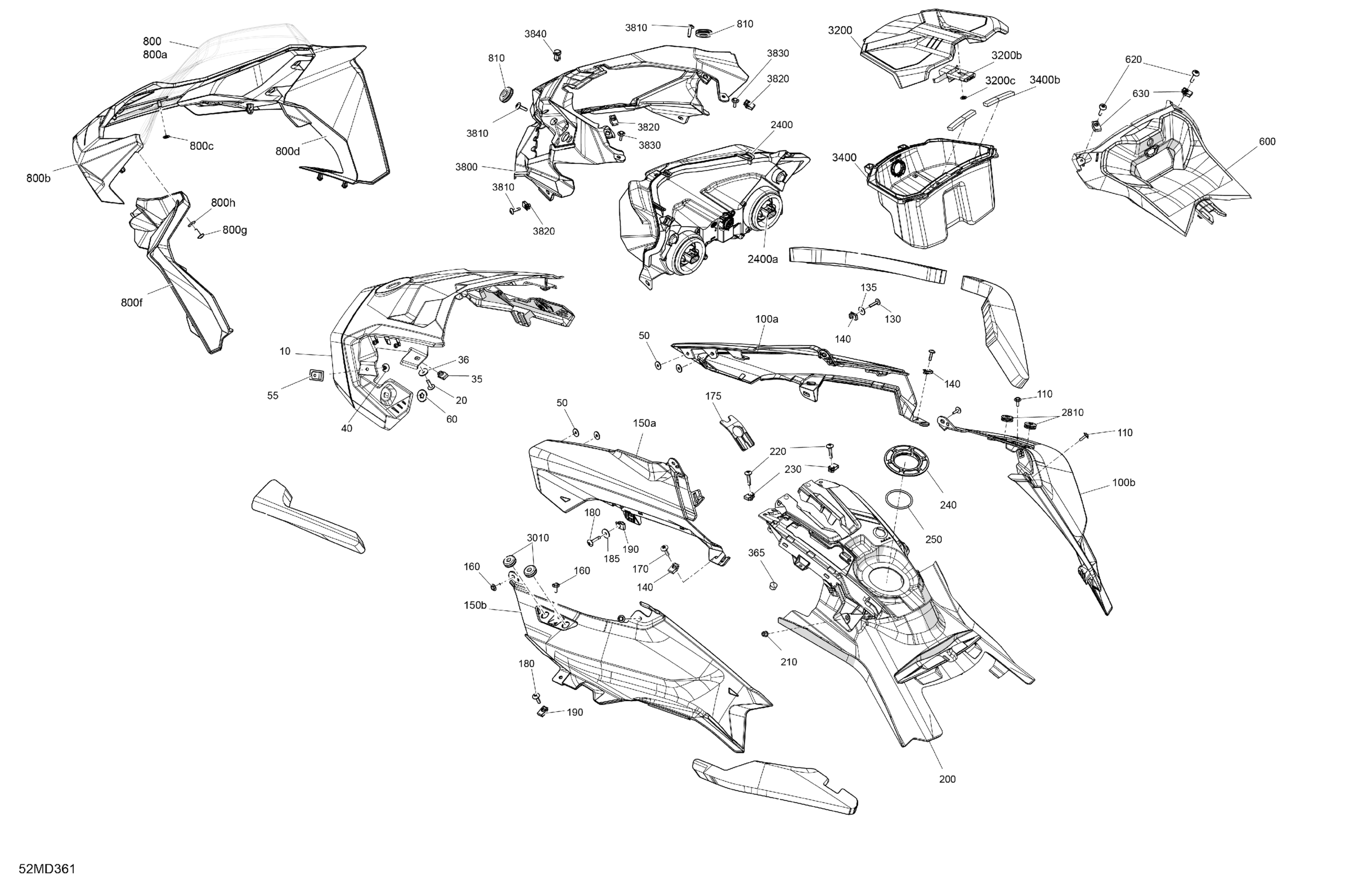

Ski-Doo Europe - SKANDIC 600 EFI - SPORT - AJRB - Neo Yellow - 154X20X1.25WT Track, 2024 Body - Hood Diagram

#

Description
Price

10

Deep Black, Center Hood

517306288

$198.43

20

Torx Screw M5 X 20

250000528

$1.74

35

Panel Nut M5 X 0.8

250000958

$3.48

36

Washer

250200166

$1.74

40

Black, Pop Rivet 3/16 X ,550

293150292

$0.86

50

Washer

517124300

$0.16

55

Rivet Plate

517305109

$4.66

60

Push Nut

508000853

$1.92

100a

Neo Yellow, RH Front Hood

517307524

$197.66

100b

Neo Yellow, RH Rear Hood

517307525

$197.66

110

Screw M4 X 16

250000725

$2.87

130

Torx Screw M5 X 26

250000587

$3.61

135

Washer

250200166

$1.74

140

Panel Nut M5 X 0.8

250000958

$3.48

150a

Hood Fl B-450

517307527

$197.66

150b

Neo Yellow, LH Rear Hood

517307528

$197.66

160

Screw M4 X 16

250000725

$2.87

170

Torx Screw M5 X 20

250000528

$1.74

175

Console Pad

517307744

$15.35

180

Torx Screw M5 X 26

250000587

$3.61

185

Washer

250200166

$1.74

190

Panel Nut M5 X 0.8

250000958

$3.48

200

Deep Black, Rear Console

517308233

$181.51

210

Flange Elastic Nut M5

233251434

$1.66

220

Torx Screw M5 X 26

250000587

$3.61

230

Panel Nut M5 X 0.8

250000958

$3.48

240

Console Nut

517306602

$11.22

250

O-Ring

706002839

$0.98

365

Cap

572051500

$5.38

600

Gauge Support

517308510

$35.35

620

Torx Truss M5 X 20

250000586

$3.61

630

Panel Nut M5 X 0.8

250000958

$3.48

800

Medium Windshield Kit | Includes 800 to 800h

860201258

$203.82

800a

Windshield

517306062

$164.58

800b

Deep Black, Windshield Support

517306183

$42.99

800c

Push Nut

732610072

$1.72

800d

Deflector RH, Black 63% Light Transm.

517306063

$33.82

800f

Deflector LH, Black 63% Light Transm.

517306064

$33.82

800g

Screw M4 X 16

250000889

$2.46

800h

Rubber Washer 4 MM

517306524

$2.25

810

Grommet

517303756

$3.15

2400

Headlamp | Includes 2400 to 2400a

517305752

$425.35

2400a

Bulb

415130081

$39.97

2810

Grommet

517307161

$2.22

3010

Grommet

517307161

$2.22

3200

Cover Ass'y | Includes 3200 to 3200c

517307562

$20.74

3200b

Latch

517305779

$10.23

3200c

Push Nut

732610072

$1.72

3400

Trunk Ass'y | Includes 3400 to 3400b

517306058

$18.43

3400b

Seal Joint

517305157

$2.28

3800

Headlamp Fairing

517306301

$74.58

3810

Torx Screw M5 X 20

250000528

$1.74

3820

Panel Nut M5 X 0.8

250000958

$3.48

3830

Screw M4 X 16

250000725

$2.87

3840

Tuflok Plastic Rivet

293150230

$1.21
