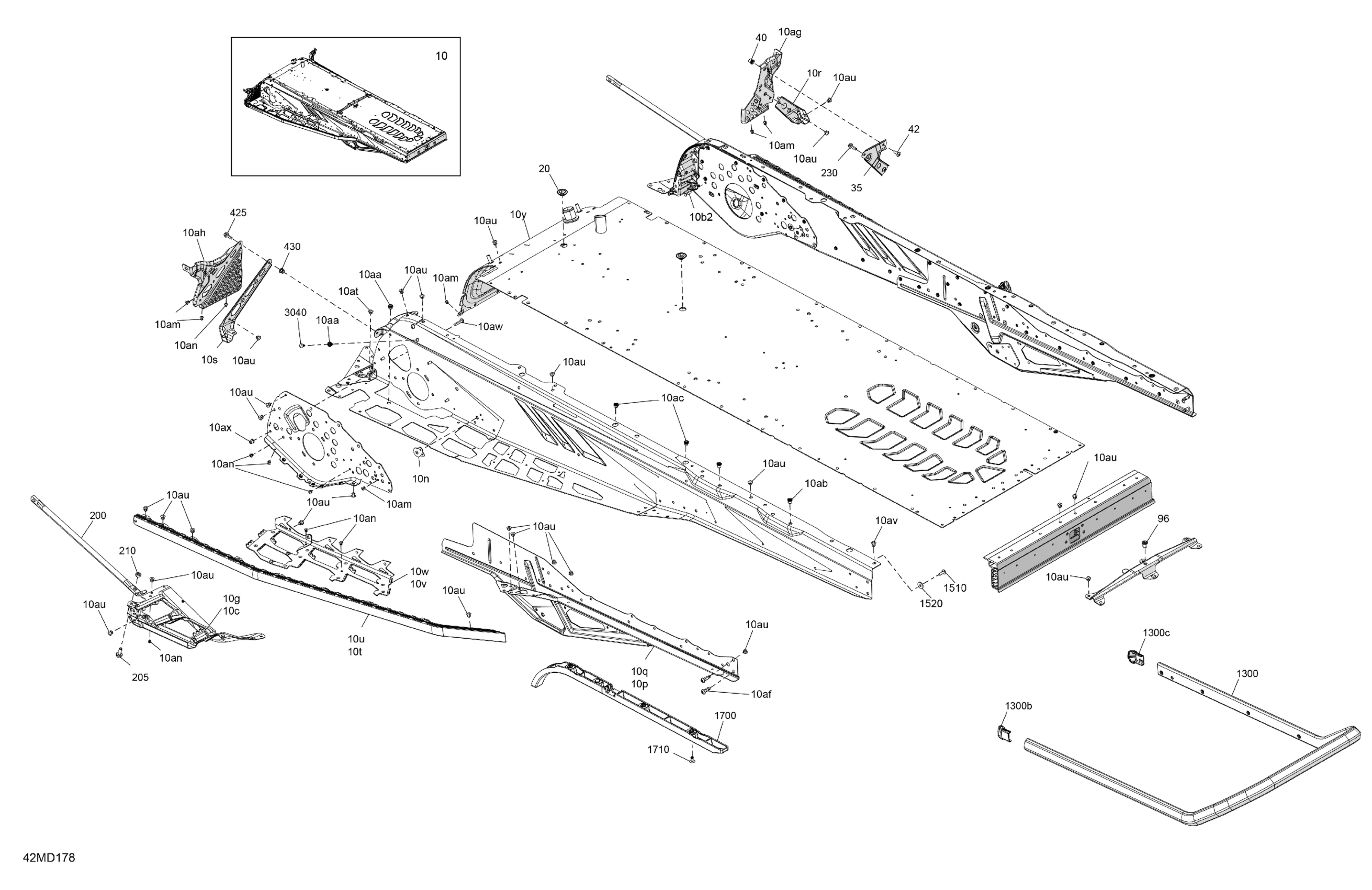

Ski-Doo Europe - SKANDIC 600 EFI - SPORT - AJRB - Neo Yellow - 154X20X1.25WT Track, 2024 Frame - System - Rear Section Diagram

Description

Price

Full Moon, Chassis Tunnel Module 154 | Includes 10 to 10ax

415130785

Unavailable

10b2

Clinch Stud M6 X 20

250300027

$2.09

10c

Deep Black, RH Footrest Reinforcement

518332803

$86.99

10g

Deep Black, LH Footrest Reinforcement

518332802

$18.49

10n

Front Suspension Arm Reinforcement

518335959

$4.19

10p

RH Rear Suspension Support

518333792

$109.99

10q

LH Rear Suspension Support

518333791

$109.99

10r

RH Footrest Reinforcement

518329789

$19.99

10s

Deep Black, LH Chassis Reinforcement

518332924

$21.99

10t

RH Roller

518329648

$194.99

10u

LH Roller

518328452

$194.99

10v

Central Rear Tunnel Reinforcement

518334842

$35.99

10w

LH Central Reinforcement Tunnel

518334843

$35.99

10y

Radiator Tunnel Ass'y 154

518332622

$709.99

10aa

Clinch Nut M6 Hexsert

605636003

$4.23

10ab

Insert

293450275

$12.99

10ac

Clinch Nut M6 Hexsert

605636003

$4.23

10af

Torx Button Head Screw M8 X 25

250001151

$2.00

10ag

RH Footrest

518331822

$24.49

10ah

LH Footrest

518332978

$43.99

10am

Avex Rivet

390909100

$0.30

10an

Avex Rivet

390909200

$0.30

10at

Rivet Ornit 6,5 X 10.5

293150264

$2.40

10au

Rivet Ornit 6,5 X 12.5

293150265

$2.40

10av

Ornit Rivet 6,5 X 14.5

293150266

$2.40

10aw

Magna-Grip Rivet 6.4 X 65,9

293150154

Unavailable

10ax

Collar Huck Magna-Grip 6.4

293150149

$0.48

Black, Plug

293730052

$9.19

RH Stirrup Reinforcement

518331727

$19.99

Insert

293450275

$12.99

Torx Head Screw M6 X 16

250000717

$2.11

Insert

293450275

$12.99

200

Lateral Reinforcement

518332541

$19.99

205

Hex. Flange Screw M8 X 20

207682044

$1.15

210

Hex. Nut M8

232081414

$0.72

230

Hex. Flange Screw M6 X 20

207562056

$2.11

425

Hex. Flange Screw M6 X 20

207562056

$2.11

430

Elastic Flange Nut M6 X 1.0

233261416

$2.11

1300

Rear Bumper | Includes 1300 to 1300c

518331043

$111.49

1300b

LH Cap

520001837

Unavailable

1300c

Cap

520001841

Unavailable

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.11

1520

Flat Washer

224061201

$1.37

1700

Front Protector

518329982

$18.49

1710

Pop Rivet 3/16”

293150108

$1.19

3040

Dart

293730079

$2.09
